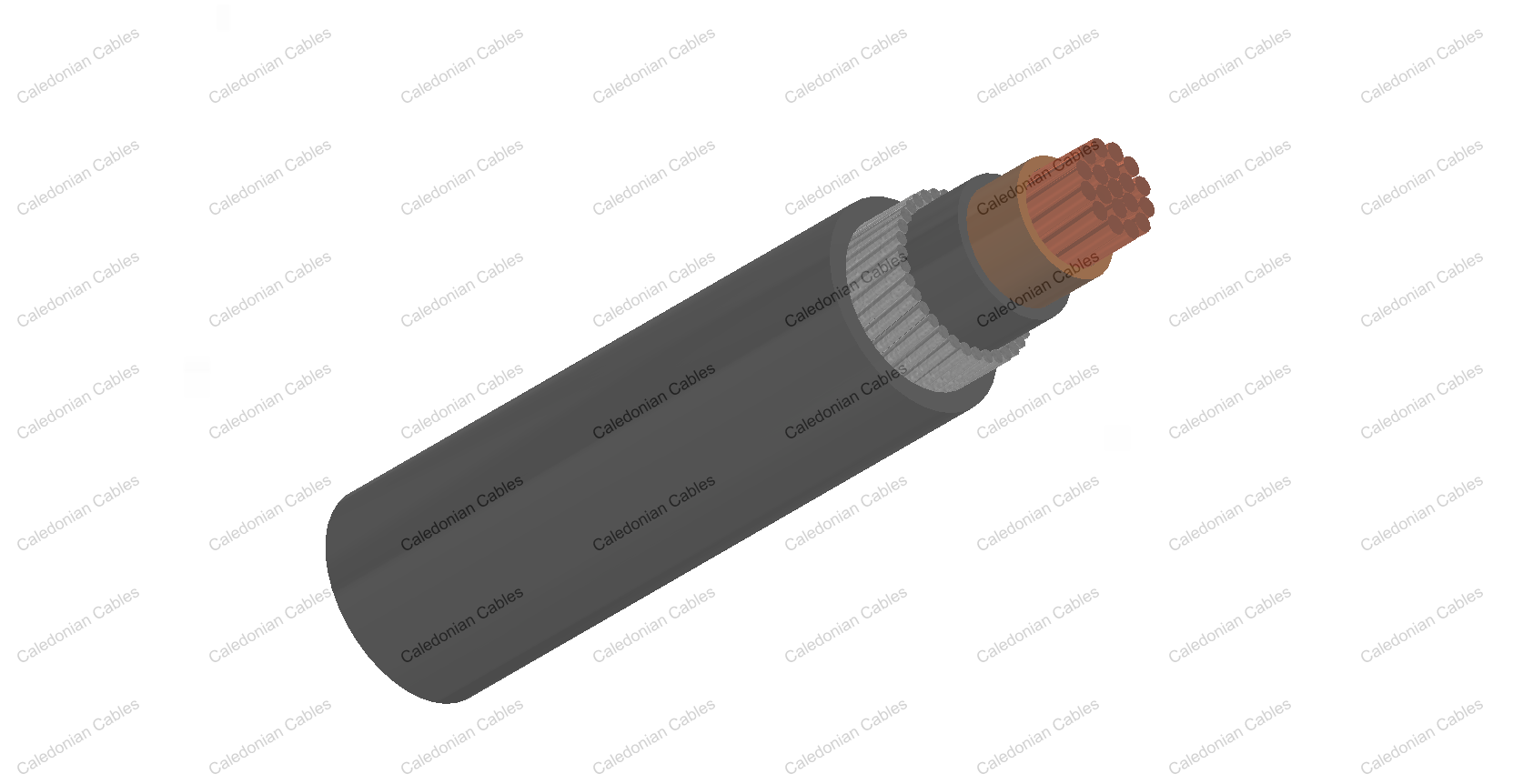

    600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables to IEC 60502 (Single Core)

    FGD300 1RVMAV-R (CU/XLPE/PVC/AWA/PVC 600/1000V Class 2)

    VDE Code: N2XRY

    Application

    The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.This product type is TUV approved.

    Standards

    Basic design to to IEC 60502-1

    Approvals

    TUV Certification (Z1 17 01 98200 004)

    Fire Performance

    Flame Retardance (Single Vertical Wire Test) IEC 60332-1

    Voltage Rating

    600/1000V

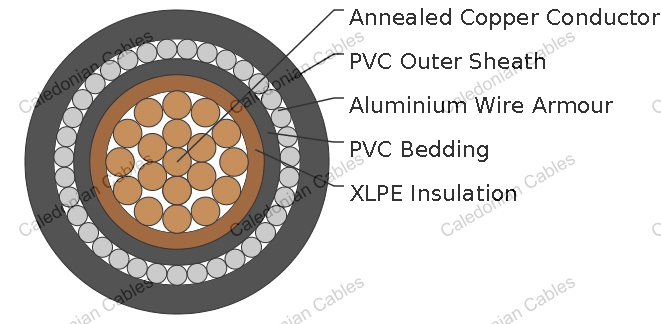

    Cable Construction

    Conductor Annealed copper wire, stranded according to IEC 60228 class 2.
    Insulation XLPE according to IEC 60502-1.
    Inner Covering Extruded PVC or polymeric compound.
    Armouring Aluminium wire
    Outer Sheath Extruded PVC Type ST1/ST2 according to IEC 60502-1.
    Outer Sheath Option UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

    Colour Code

    Insulation Colour Brown or blue, other colours can be offered upon request.
    Sheath Colour Black, other colours can be offered upon request.

    Mechanical and Electrical Properties

    Maximum temperature range during operation 80°C (For ST1 Sheath); 90°C (For ST2 Sheath)
    Maximum short circuit temperature (5 Seconds)  250°C
    Minimum bending radius
    Circular copper conductors 6 x Overall Diameter
    Shaped copper conductors 8 x Overall Diameter

    Construction Parameters

    Conductor FGD300 1RVMAV-R
    No. of Cores × Cross Section Class of Conductor Nominal Insulation Thickness Nominal Inner Covering Thickness Nominal Armour Wire Diameter Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
    No.xmm²   mm mm mm mm mm kg/km
    1x1.5 2 0.7 1.0 0.8 1.8 10.2 150
    1x2.5 2 0.7 1.0 0.8 1.8 10.6 169
    1x4.0 2 0.7 1.0 0.8 1.8 11.2 196
    1x6.0 2 0.7 1.0 0.8 1.8 11.7 228
    1x10 2 0.7 1.0 0.8 1.8 12.7 290
    1x16 2 0.7 1.0 0.8 1.8 13.7 372
    1x25 2 0.9 1.0 0.8 1.8 15.4 507
    1x35 2 0.9 1.0 1.25 1.8 17.5 681
    1x50 2 1.0 1.0 1.25 1.8 19.0 848
    1x70 2 1.1 1.0 1.25 1.8 21.0 1116
    1x95 2 1.1 1.0 1.6 1.8 24.0 1511
    1x120 2 1.2 1.0 1.6 1.8 25.8 1821
    1x150 2 1.4 1.0 1.6 1.8 27.8 2165
    1x185 2 1.6 1.0 1.6 1.8 30.4 2655
    1x240 2 1.7 1.0 1.6 1.9 33.5 3352
    1x300 2 1.8 1.0 2.0 2.0 37.5 4224
    1x400 2 2.0 1.2 2.0 2.2 41.3 5263
    1x500 2 2.2 1.2 2.0 2.3 44.2 7379
    1x630 2 2.4 1.2 2.5 2.4 49.8 9611
    1x800 2 2.6 1.4 2.5 2.6 55.3 11896
    1x1000 2 2.8 1.4 2.5 2.7 60.4 14467

    ELECTRICAL PROPERTIES

    Conductor Operating Temperature 90°C
    Ambient Temperature 30°C

    Current-Carrying Capacities (Amp) according to BS 7671: 2008 table 4E3A

    Conductor cross-sectional area Reference Method C (clipped direct) Reference Method F (in free air or on a perforated cable tray, horizontal or vertical)
    Touching Touching Spaced by on cable diameter
    2 cables, single-phase a.c. or d.c. flat 3 or 4 cables, threep-hase a.c. flat 2 cables, single-phase a.c. or d.c. flat 3 or 4 cables, three-phase a.c. flat 3 cables threep-hase a.c. trefoil 2 cables, d.c. 2 cables, single-phase a.c. 3 or 4 cables, three-phase a.c.
    Horizontal Vertical Horizontal Vertical Horizontal Vertical
    1 2 3 4 5 6 7 8 9 10 11 12
    mm2 A A A A A A A A A A A
    50 237 220 253 232 222 284 270 282 266 288 266
    70 303 277 322 293 285 356 349 357 337 358 331
    95 367 333 389 352 346 446 426 436 412 425 393
    120 425 383 449 405 402 519 497 504 477 485 449
    150 488 437 516 462 463 600 575 566 539 549 510
    185 557 496 587 524 529 688 660 643 614 618 574
    240 656 579 689 612 625 815 782 749 714 715 666
    300 755 662 792 700 720 943 906 842 805 810 755
    400 853 717 899 767 815 1137 1094 929 889 848 797
    500 962 791 1016 851 918 1314 1266 1032 989 923 871
    630 1082 861 1146 935 1027 1528 1474 1139 1092 992 940
    800 1170 904 1246 987 1119 1809 1744 1204 1155 1042 978
    1000 1261 961 1345 1055 1214 2100 2026 1289 1238 1110 1041

    Voltage Drop (Per Amp Per Meter) according to BS 7671: 2008 table 4E3B

    Nominal Cross Section Area 2 cables d.c. Ref. Methods C&F(clipped direct, on trays or in free air)
    2 cables, single-phase a.c. 3 or 4 cables, three-phase a.c.
    Touching Spaced* Trefoil and touching Flat and touching Flat and spaced*
    1 2 3 4 5 6 7
    mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
        r x z r x z r x z r x z r x z
    50 0.98 0.99 0.21 1.0 0.98 0.29 1.0 0.86 0.18 0.87 0.64 0.25 0.88 0.84 0.33 0.9
    70 0.67 0.68 0.20 0.71 0.69 0.29 0.75 0.59 0.170 0.62 0.60 0.25 0.65 0.62 0.32 0.70
    95 0.49 0.51 0.195 0.55 0.53 0.28 0.60 0.44 0.170 0.47 0.46 0.24 0.52 0.49 0.31 0.58
    120 0.39 0.41 0.190 0.45 0.43 0.27 0.51 0.35 0.165 0.39 0.38 0.24 0.44 0.41 0.30 0.51
    150 0.31 0.33 0.185 0.38 0.36 0.27 0.45 0.29 0.160 0.33 0.31 0.23 0.39 0.34 0.29 0.45
    185 0.25 0.27 0.185 0.33 0.30 0.26 0.40 0.23 0.160 0.28 0.26 0.23 0.34 0.29 0.29 0.41
    240 0.195 0.21 0.180 0.28 0.24 0.26 0.35 0.180 0.155 0.24 0.21 0.22 0.30 0.24 0.28 0.37
    300 0.155 0.17 0.175 0.25 0.195 0.25 0.32 0.145 0.150 0.21 0.170 0.22 0.28 0.20 0.27 0.34
    400 0.115 0.145 0.170 0.22 0.180 0.24 0.30 0.125 0.150 0.195 0.160 0.21 0.27 0.20 0.27 0.33
    500 0.093 0.125 0.170 0.21 0.165 0.24 0.29 0.105 0.145 0.180 0.145 0.20 0.25 0.190 0.24 0.31
    630 0.073 0.105 0.165 0.195 0.150 0.23 0.27 0.092 0.145 0.170 0.135 0.195 0.24 0.175 0.23 0.29
    800 0.056 0.090 0.160 0.190 0.145 0.23 0.27 0.086 0.140 0.165 0.130 0.180 0.23 0.175 0.195 0.26
    1000 0.045 0.092 0.155 0.180 0.140 0.21 0.25 0.080 0.135 0.155 0.125 0.170 0.21 0.165 0.180 0.24

    Note: *Spacings larger than one cable diameter will result in a large voltage drop.
    r = conductor resistance at operating temperature
    x = reactance
    z = impedance
