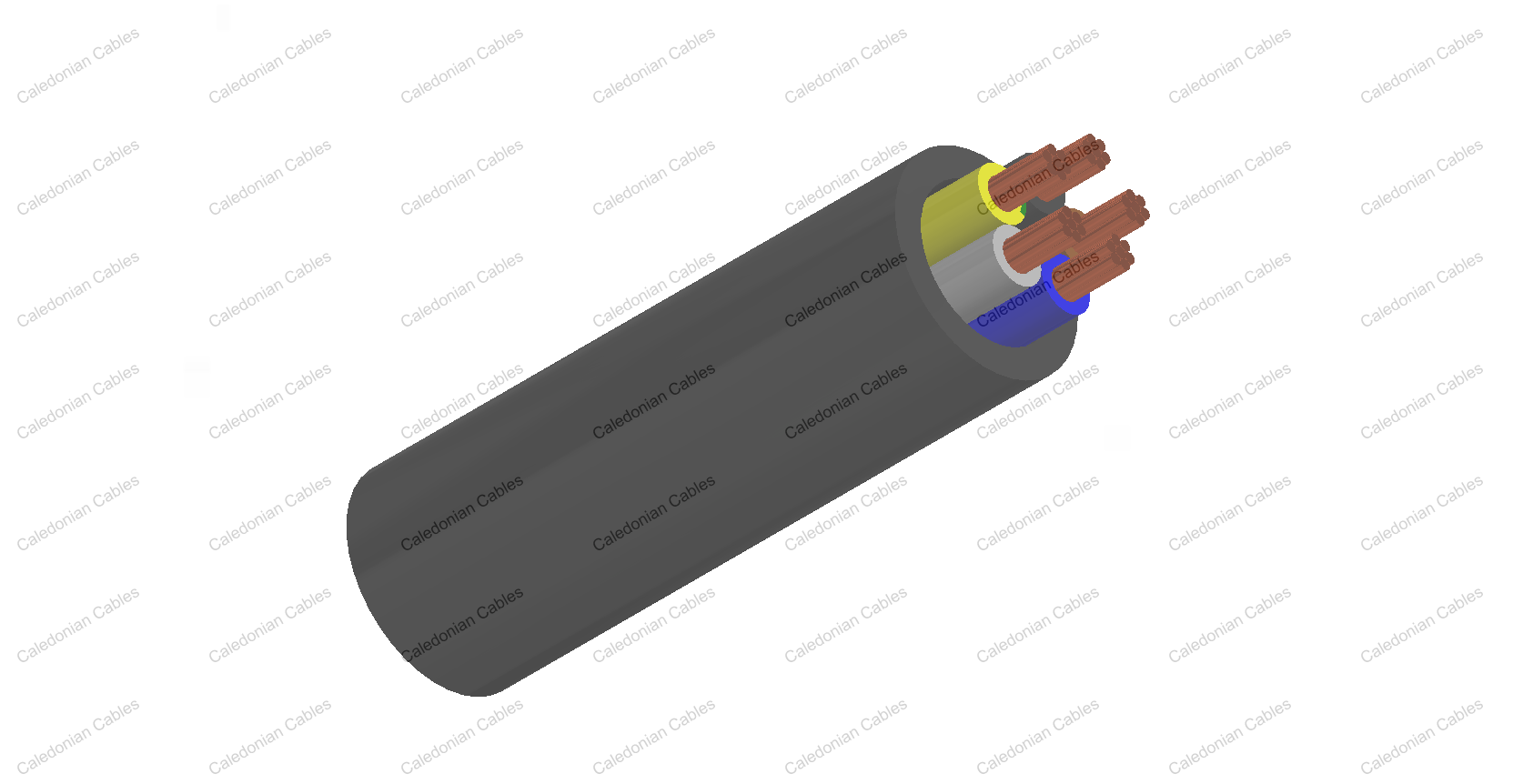

    600/1000V PVC Insulated, PVC Sheathed, Unarmoured Power Cables (2-5 Cores & Multicore)

    FGD400 1VV-R (CU/PVC/PVC 600/1000V Class 2)

    VDE Code: NYY

    i

    Application

    The cables are mainly use in fixed installations in industrial areas, buildings and similar applications but not for burial in the ground, either directly or in ducts.

    Standards

    Basic design adapted to IEC 60502-1

    Fire Performance

    Flame Retardance (Single Vertical Wire Test) IEC 60332-1

    Voltage Rating

    600/1000V

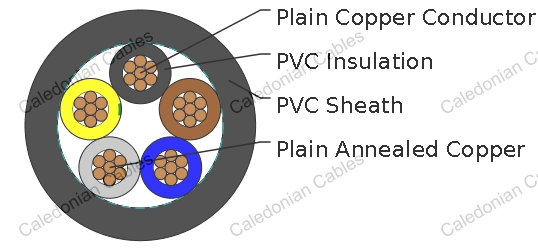

    Cable Construction

    Conductor Annealed copper wire, stranded according to BS EN 60228 class 2.
    Insulation PVC/A according to IEC 60502-1.
    Inner Covering Option Extruded PVC or polymeric compound.
    Outer Sheath Extruded PVC Type ST1/ST2 according to IEC 60502-1.
    Outer Sheath Option UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

    Colour Code

    Insulation Colour Two-core: Brown, blue
    Three-core: Brown, black, grey. Alternatively, green-and-yellow, blue, brown
    Four-core: Blue, brown, black, grey. Alternatively, green-and-yellow, brown, black, grey
    Five-core: Green-and-yellow, blue, brown, black, grey
    Note: Depending on their intended use, the cables might be subject to the core colour requirements specified
    in BS 7671 or other standards, or in statutory requirements.
    Sheath Colour Black, other colours can be offered upon request

    Physical AND THERMAL PROPERTIES

    Maximum temperature range during operation (PVC) 70°C
    Maximum short circuit temperature (5 Seconds)
    Conductor cross-section ≤300 mm2 160°C
    Conductor cross-section >300 mm2 140°C

    Minimum bending radius  12 x Overall Diameter

    Construction Parameters

    Conductor FGD400 1VV-R
    No. of Cores x Cross Section Class of Conductor Nominal Insulation Thickness Nominal
    Sheath Thickness
    Nominal Overall Diameter Approx. Weight
    No.xmm2   mm  mm mm mm
    2 Cores
    2x1.5 2 0.8 1.8 9.6 120
    2x2.5 2 0.8 1.8 10.4 151
    2x4.0 2 1.0 1.8 12.2 212
    2x6.0 2 1.0 1.8 13.2 266
    2x10 2 1.0 1.8 14.8 370
    2x16 2 1.0 1.8 16.6 510
    2x25 2 1.2 1.8 19.6 740
    2x35 2 1.2 1.8 21.8 986
    2x50 2 1.4 1.8 25.2 1355
    2x70 2 1.4 1.9 28.1 1798
    2x95 2 1.6 2.0 32.4 2419
    2x120 2 1.6 2.1 35.4 3003
    2x150 2 1.8 2.2 39.2 3696
    2x185 2 2.0 2.4 43.3 4536
    2x240 2 2.2 2.5 48.9 5849
    2x300 2 2.4 2.7 54.0 7223
    2x400 2 2.6 2.9 61.5 9566
    3 Cores
    3x1.5 2 0.8 1.8 10.1 149
    3x2.5 2 0.8 1.8 10.9 192
    3x4.0 2 1.0 1.8 12.9 277
    3x6.0 2 1.0 1.8 13.9 354
    3x10 2 1.0 1.8 15.7 503
    3x16 2 1.0 1.8 17.6 707
    3x25 2 1.2 1.8 20.8 1040
    3x35 2 1.2 1.8 23.2 1401
    3x50 2 1.4 1.8 26.9 1942
    3x70 2 1.4 1.9 30.1 2589
    3x95 2 1.6 2.1 34.7 3514
    3x120 2 1.6 2.2 38 4372
    3x150 2 1.8 2.3 42.1 5390
    3x185 2 2.0 2.5 46.5 6615
    3x240 2 2.2 2.7 52.5 8576
    3x300 2 2.4 2.8 58 10564
    3x400 2 2.6 3.1 66.1 14049
    3 Cores+1 Earth Conductor
        power conductor earth  conductor
    3x 16/10 2 1.0 1.0 1.8 19.0 764
    3x 25/16 2 1.2 1.0 1.8 22.6 1137
    3x 35/16 2 1.2 1.0 1.8 25.3 1494
    3x 50/25 2 1.4 1.2 1.9 29.6 2120
    3x 70/35 2 1.4 1.2 2.0 33.2 2862
    3x 95/50 2 1.6 1.4 2.2 38.4 3917
    3x120/70 2 1.6 1.4 2.3 42.0 4973
    3x150/70 2 1.4 1.2 2.5 46.6 5861
    3x185/95 2 1.6 1.4 2.6 51.6 7321
    3x240/120 2 1.6 1.4 2.9 58.3 9433
    3x300/150 2 1.8 1.6 3.1 64.5 11714
    3x400/185 2 2.0 1.6 3.3 73.5 15404
    4 Cores
    4x1.5 2 0.8 1.8 10.8 180
    4x2.5 2 0.8 1.8 11.8 236
    4x4.0 2 1.0 1.8 14 346
    4x6.0 2 1.0 1.8 15.2 447
    4x10 2 1.0 1.8 17.1 642
    4x16 2 1.0 1.8 19.3 910
    4x25 2 1.2 1.8 22.9 1347
    4x35 2 1.2 1.8 25.6 1824
    4x50 2 1.4 1.9 29.9 2553
    4x70 2 1.4 2.0 33.5 3409
    4x95 2 1.6 2.2 38.7 4628
    4x120 2 1.6 2.3 42.3 5763
    4x150 2 1.8 2.5 46.9 7132
    4x185 2 2.0 2.6 51.9 8723
    4x240 2 2.2 2.9 58.6 11344
    4x300 2 2.4 3.1 64.8 14012
    4x400 2 2.6 3.3 73.8 18590
    Multicore
    5x1.5 2 0.8 1.8 11.7 213
    7x1.5 2 0.8 1.8 12.6 270
    10x1.5 2 0.8 1.8 15.6 371
    12x1.5 2 0.8 1.8 16.1 424
    14x1.5 2 0.8 1.8 16.8 480
    19x1.5 2 0.8 1.8 18.6 619
    21x1.5 2 0.8 1.8 19.5 676
    24x1.5 2 0.8 1.8 21.6 769
    30x1.5 2 0.8 1.8 22.8 927
    40x1.5 2 0.8 1.8 27.7 1196
    48x1.5 2 0.8 1.9 28.2 1430
    61x1.5 2 0.8 1.9 30.9 1773
    5x2.5 2 0.8 1.8 12.8 281
    7x2.5 2 0.8 1.8 13.8 363
    10x2.5 2 0.8 1.8 17.2 503
    12x2.5 2 0.8 1.8 17.7 580
    14x2.5 2 0.8 1.8 18.6 660
    19x2.5 2 0.8 1.8 20.6 860
    21x2.5 2 0.8 1.8 21.6 941
    24x2.5 2 0.8 1.8 24 1072
    30x2.5 2 0.8 1.8 25.4 1302
    40x2.5 2 0.8 2.0 31.1 1720
    48x2.5 2 0.8 2.0 31.7 2039
    61x2.5 2 0.8 2.1 34.7 2557

    ELECTRICAL PROPERTIES

    Conductor Operating Temperature 70°C
    Ambient Temperature 30°C

    Current-Carrying Capacities (Amp) according to BS 7671 table 4D2A

    Conductor cross- sectional area Reference Method A
    (enclosed in conduit in
    thermally insulating wall etc)
    Reference Method B
    (enclosed in conduit on a
    wall or in trunking etc)
    Reference Method C
    (clipped direct)
    Reference Method G (in free air)
    Spaced by one cable
    diameter
    1 two-core
    cables*,
    single-phase
    a.c. or
    d.c.
    1 three-core
    cable* or 1
    four-core
    cable,
    three
    -phase
    a.c.
    1 two-core
    cables*,
    singlephase
    a.c. or
    d.c.
    1 three-core
    cable* or 1
    four-core
    cable,
    three
    -phase
    a.c.
    1 two-core
    cables*,
    single-phase
    a.c. or
    d.c.
    1 three-core
    cable* or 1
    four-core
    cable,
    three
    -phase
    a.c.
    1 two-core
    cables*,
    single-phase
    a.c. or
    d.c.
    1 three-core
    cable* or 1
    four-core
    cable,
    three
    -phase
    a.c.
    1 2 3 4 5 6 7 8 9
    mm2 A A A A A A A A
    1.5 14 13 16.5 15 19.5 17.5 22 18.5
    2.5 18.5 17.5 23 20 27 24 30 25
    4.0 25 23 30 27 36 32 40 34
    6.0 32 29 38 34 46 41 51 43
    10 43 39 52 46 63 57 70 60
    16 57 52 69 62 85 76 94 80
    25 75 68 90 80 112 96 119 101
    35 92 83 111 99 138 119 148 126
    50 110 99 133 118 168 144 180 153
    70 139 125 168 149 213 184 232 196
    95 167 150 201 179 258 223 282 238
    120 192 172 232 206 299 259 328 276
    150 219 196 258 225 344 299 379 319
    185 248 223 294 255 392 341 434 364
    240 291 261 344 297 461 403 514 430
    300 334 298 394 339 530 464 593 497
    400 - - 470 402 634 557 715 597

    * with or without a protective conductor

    Voltage Drop (Per Amp Per Meter) according to BS 7671 table 4D2B

    Nominal Cross Section  Area Two-core cable d.c. Two-core cable, single-phase a.c. Three- or four-core cable, three-phase a.c.
    1 2 3 4
    mm2 mV/A/m mV/A/m mV/A/m
    1.5 29 29 25
    2.5 18 18 15
    4.0 11 11 9.5
    6.0 7.3 7.3 6.4
    10 4.4 4.4 3.8
    16 2.8 2.8 2.4
        r x z r x z
    25 1.75 1.75 0.170 1.75 1.50 0.145 1.50
    35 1.25 1.25 0.165 1.25 1.10 0.145 1.10
    50 0.93 0.93 0.165 0.94 0.80 0.140 0.81
    70 0.63 0.63 0.160 0.65 0.55 0.140 0.57
    95 0.46 0.47 0.155 0.50 0.41 0.135 0.43
    120 0.36 0.38 0.155 0.41 0.33 0.135 0.35
    150 0.29 0.30 0.155 0.34 0.26 0.130 0.29
    185 0.23 0.25 0.150 0.29 0.21 0.130 0.25
    240 0.180 0.190 0.150 0.24 0.165 0.130 0.21
    300 0.145 0.155 0.145 0.21 0.135 0.130 0.185
    400 0.105 0.115 0.145 0.185 0.100 0.125 0.160

    Note: *Spacings larger than one cable diameter will result in a large voltage drop.
    r = conductor resistance at operating temperature
    x = reactance
    z = impedance
