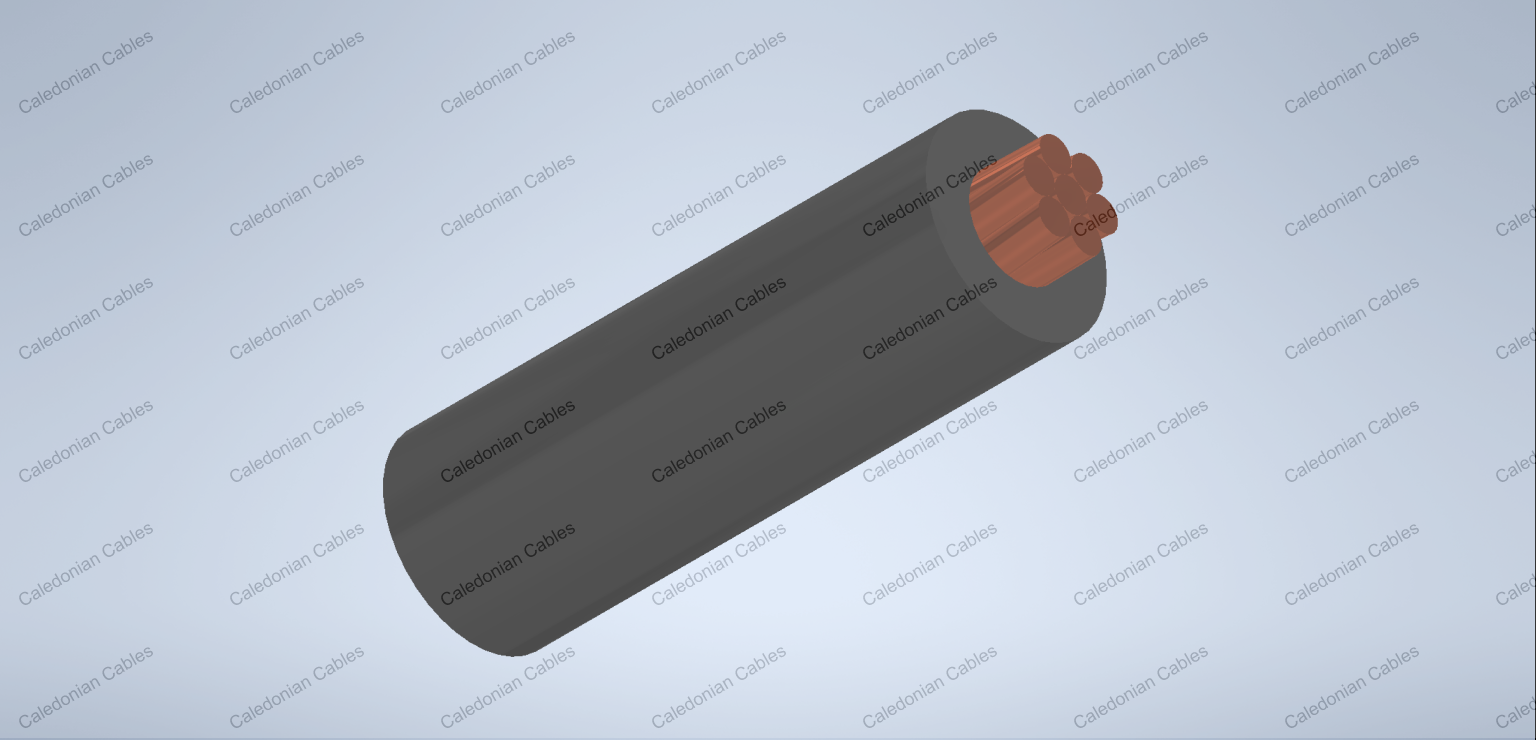

    300/500V PVC Insulated, Non-sheathed Power Cables (Single Core 90°C)

    FGD100 05V2-U/R/K (CU/PVC 300/500V Class 1/2/5)

    BS Code : 2491XHR

    HAR Code : H05V2-U, H05V2-R, H05V2-K

    APPLICATION

    This cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

    STANDARDS

    Basic design to BS EN 50525-2-31(formerly BS 6004:2000)

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2

    VOLTAGE RATING

    300/500V

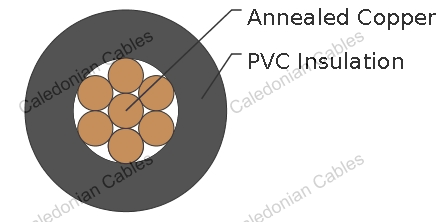

    CABLE CONSTRUCTION

    Conductor H05V-U Class 1 solid copper conductor to BS EN 60228.
    H05V-R Class 2 stranded copper conductor to BS EN 60228.
    H05V-K Class 5 stranded copper conductor to BS EN 60228.
    Insulation PVC Type TI 3 according to BS EN 50363-3

    COLOUR CODE

    Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green and Yellow. Bicolours of any combination of the above mono-colours are permitted.

    PHYSICAL AND THERMAL PROPERTIES

    Maximum temperature range during operation (PVC) 90°C
    Maximum short circuit temperature (5 Seconds) 160°C
    Minimum bending radius Up to 8mm² 4 x overall diameter
      8mm² to 12mm² 5 x overall diameter
      Above 12mm² 6 x overall diameter

    CONSTRUCTION PARAMETERS

    Conductor FGD100 05V-U/R/K
    No. of Cores x Cross Section Class of Conductor Nominal Insulation Thickness Maximum Overall Diameter Approx. Weight
    No.xmm²    mm mm kg/km
    1x0.50 1 0.6 2.3 8
    1x0.75 1 0.6 2.5 11
    1x1.0 1 0.6 2.7 14
    1x0.50 2 0.6 2.4 9
    1x0.75 2 0.6 2.6 12
    1x1.0 2 0.6 2.8 14
    1x0.50 5 0.6 2.5 8
    1x0.75 5 0.6 2.7 11
    1x1.0 5 0.6 2.8 13

    ELECTRICAL PROPERTIES

    Current-Carrying Capacities (Amp) according to HD516 Table 7 (a)

    Conductor cross-sectional area PVC insulated types (HD 21)
    single-phase a.c. three-phase a.c.
    mm² A A
    0.50 3 3
    0.75 6 6
    1.0 10 10

    Note: These values apply to the majority of cases. Further information should be sought in unusual cases eg.:

    (i) When high ambient temperatures are involved, ie. above 30°C

    (ii) Where long lengths are used

    (iii) Where ventilation is restricted

    (iv) Where the cords are used for other purposes, ego internal wiring of apparatus.

    Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4E1B

    Nominal Cross Section Area 2 cables d.c. 2 cables, single-phase a.c. 3 or 4 cables, three-phase a.c.
    Ref. Methods A and B (enclosed in conduit or trunking) Ref. Methods C, F & G (clipped direct, on trays or in free air) Ref. Methods A & B (enclosed in conduit or trunking Ref. Methods C, F & G (clipped direct, on trays or in free air)
    Cables touching Cables spaced* Cables touching, Trefoil Cables touching, Flat Cables spaced*, Flat
    1 2 3 4 5 6 7 8 9
    mm² mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
    0.50 93 93 93 93 80 80 80 80
    0.75 62 62 62 62 54 54 54 54
    1.0 46 46 46 46 40 40 40 40
