    450/750V PVC Insulated, Non-sheathed Power Cables (Single Core)

    FGD100 07V-U/R/K (CU/PVC 450/750V Class 1/2/5)

    BS Code : 6491X

    HAR Code : H07V-U, H07V-R, H07V-K

    APPLICATION

    This cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings. This product type is CE and TUV approved.

    STANDARDS

    Basic design to BS EN 50525-2-31(formerly BS 6004:2000)

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2

    VOLTAGE RATING

    450/750V

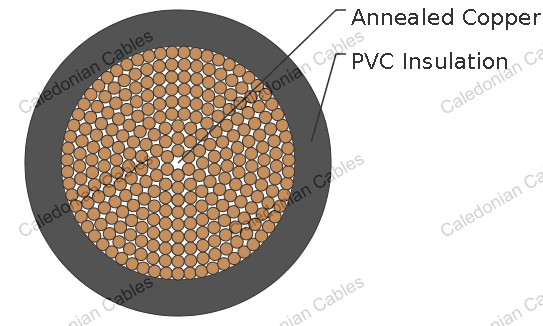

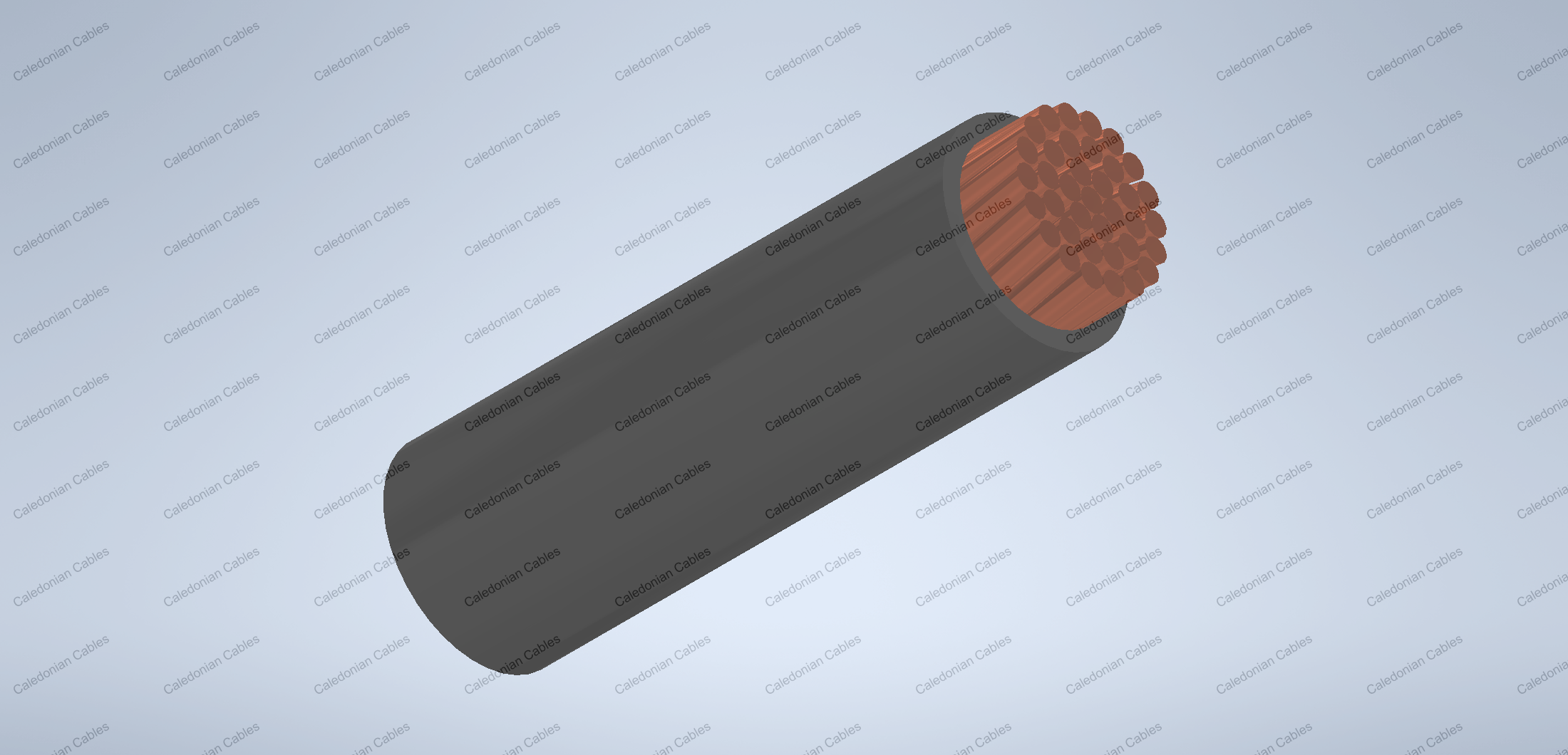

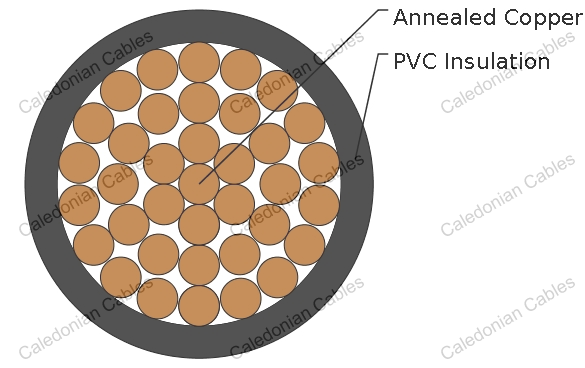

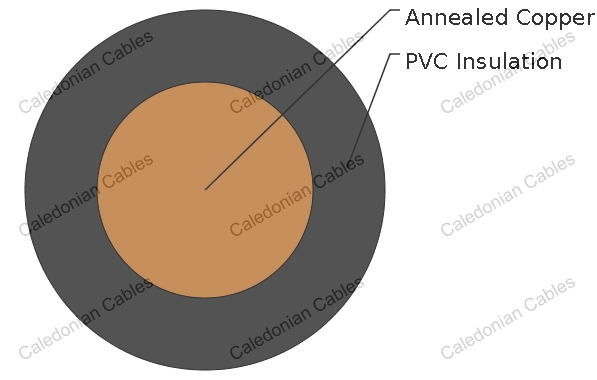

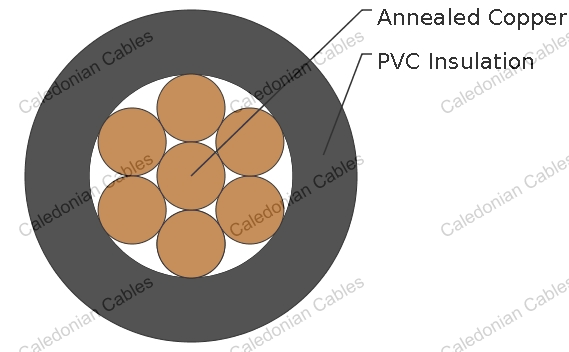

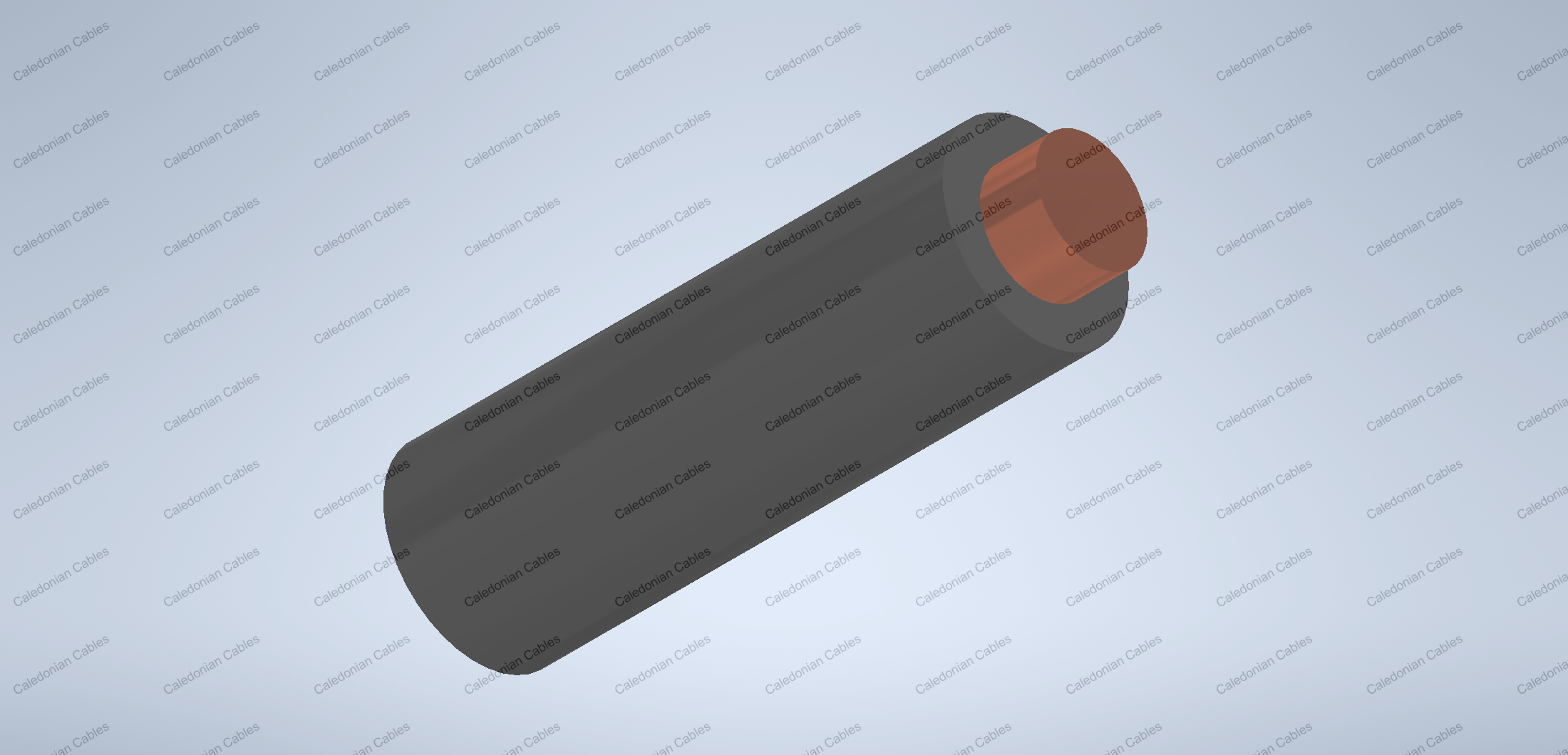

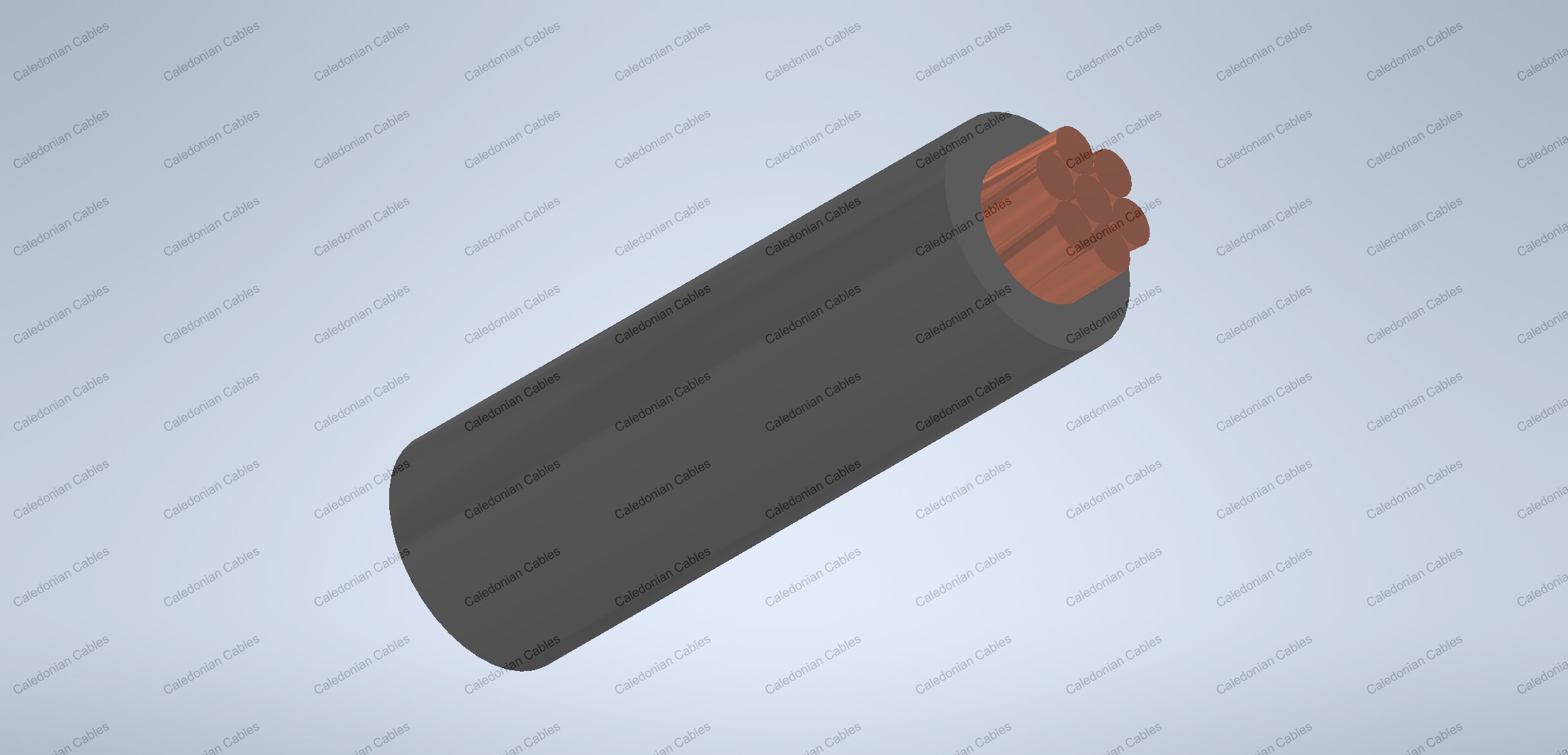

    CABLE CONSTRUCTION

    Conductor H05V-U Class 1 solid copper conductor to BS EN 60228.
      H05V-R Class 2 stranded copper conductor to BS EN 60228.
      H05V-K Class 5 stranded copper conductor to BS EN 60228.
    Insulation PVC Type TI 1 according to BS EN 50363-3

    COLOUR CODE

    Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green and Yellow.

    PHYSICAL AND THERMAL PROPERTIES

    Maximum temperature range during operation (PVC) 70°C
    Maximum short circuit temperature (5 Seconds) 160°C
    Minimum bending radius Up to 8mm² 4 x overall diameter
      8mm² to 12mm² 5 x overall diameter
      Above 12mm² 6 x overall diameter

    CONSTRUCTION PARAMETERS

    Conductor FGD100 07V-U/R/K
    No. of Cores x Cross Section Class of Conductor Nominal Insulation Thickness Maximum Overall Diameter Approx. Weight
    No.xmm²   mm mm kg/km
    1x1.5 1 0.7 3.2 21
    1x2.5 1 0.8 3.9 33
    1x4.0 1 0.8 4.4 49
    1x6.0 1 0.8 5.0 69
    1x10 1 1.0 6.4 115
    1x1.5 2 0.7 3.3 23
    1x2.5 2 0.8 4.0 35
    1x4.0 2 0.8 4.6 51
    1x6.0 2 0.8 5.2 71
    1x10 2 1.0 6.7 120
    1x16 2 1.0 7.8 170
    1x25 2 1.2 9.7 260
    1x35 2 1.2 10.9 350
    1x50 2 1.4 12.8 480
    1x70 2 1.4 14.6 680
    1x95 2 1.6 17.1 930
    1x120 2 1.6 18.8 1160
    1x150 2 1.8 20.9 1430
    1x185 2 2.0 23.3 1780
    1x240 2 2.2 26.6 2360
    1x300 2 2.4 29.6 2940
    1x400 2 2.6 33.2 3740
    1x500 2 2.8 36.9 4950
    1x630 2 2.8 41.1 6300
    1x800 2 2.8 45.7 8610
    1x1000 2 3.0 51.0 10820
    1x1.5 5 0.7 3.4 20
    1x2.5 5 0.8 4.1 31
    1x4.0 5 0.8 4.8 48
    1x6.0 5 0.8 5.3 69
    1x10 5 1.0 6.8 121
    1x16 5 1.0 8.1 211
    1x25 5 1.2 10.2 303
    1x35 5 1.2 11.7 417
    1x50 5 1.4 13.9 539
    1x70 5 1.4 16.0 730
    1x95 5 1.6 18.2 900
    1x120 5 1.6 20.2 1135
    1x150 5 1.8 22.5 1410
    1x185 5 2.0 24.9 1845
    1x240 5 2.2 28.4 2270

    ELECTRICAL PROPERTIES

    Conductor Operating Temperature 70°C
    Ambient Temperature 30°C

    Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4D1A

    Conductor cross- sectional area Reference Method A (enclosed in conduit in thermally insulating wall etc) Reference Method B (enclosed in conduit on a wall or in trunking etc) Reference Method C (clipped direct) Reference Method F (in free air or on a perforated cable tray horizontal or vertical etc)
    Touching Spaced by one cable diameter
    2 cables, single-phase a.c. or d.c. 3 or 4 cables, three -phase a.c. 2 cables, single-phase a.c. or d.c 3 or 4 cables, three-phase a.c. 2 cables, single-phase a.c. or d.c. flat and touching 3 or 4 cables, three-phase a.c. flat and touching or trefoil 2 cables, single-phase a.c. or d.c. flat 3 cables, three-phase a.c. flat 3 cables, three-phase a.c. trefoil 2 cables, single-phase a.c. or d.c. or 3 cables three- phase a.c. flat
    Horizontal Vertical
    1 2 3 4 5 6 7 8 9 10 11 12
    mm² A A A A A A A A A A A
    1.5 14.5 13.5 17.5 15.5 20 18 - - - - -
    2.5 20 18 24 21 27 25 - - - - -
    4.0 26 24 32 28 37 33 - - - - -
    6.0 34 31 41 36 47 43 - - - - -
    10 46 42 57 50 65 59 - - - - -
    16 61 56 76 68 87 79 - - - - -
    25 80 73 101 89 114 104 131 114 110 146 130
    35 99 89 125 110 141 129 162 143 137 181 162
    50 119 108 151 134 182 167 196 174 167 219 197
    70 151 136 192 171 234 214 251 225 216 281 254
    95 182 164 232 207 284 261 304 275 264 341 311
    120 210 188 269 239 330 303 352 321 308 396 362
    150 240 216 300 262 381 349 406 372 356 456 419
    185 273 245 341 296 436 400 463 427 409 521 480
    240 321 286 400 346 515 472 546 507 485 615 569
    300 367 328 458 394 594 545 629 587 561 709 659
    400 - - 546 467 694 634 754 689 656 852 795
    500 - - 626 533 792 723 868 789 749 982 920
    630 - - 720 611 904 826 1005 905 855 1138 1070
    800 - - - - 1030 943 1086 1020 971 1265 1188
    1000 - - - - 1154 1058 1216 1149 1079 1420 1337

    Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4D1B

    Nominal Cross Section Area 2 cables d.c. 2 cables, single-phase a.c. 3 or 4 cables, three-phase a.c.
    Ref. Methods A and B (enclosed in conduit or trunking) Ref. Methods C & F(clipped direct, on trays or in free air) Ref. Methods A & B (enclosed in conduit or trunking Ref. Methods C & F (clipped direct, on trays or in free air)
    Cables touching Cables spaced* Cables touching, Trefoil Cables touching, Flat Cables spaced*, Flat
    1 2 3 4 5 6 7 8 9
    mm² mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
    1.5 29 29 29 29 25 25 25 25
    2.5 18 18 18 18 15 15 15 15
    4.0 11 11 11 11 9.5 9.5 9,5 9.5
    6.0 7.3 7.3 7.3 7.3 6.4 6.4 6.4 6.4
    10 4.4 4.4 4.4 4.4 3.8 3.8 3.8 3.8
    16 2.8 2.8 2.8 2.8 2.4 2.4 2.4 2.4
        r x z r x z r x z r x z r x z r x z r x z
    25 1.75 1.80 0.33 1.80 1.75 0.20 1.75 1.75 0.29 1.80 1.50 0.29 1.55 1.50 0.175 1.50 1.50 0.25 1.55 1.50 0.32 1.55
    35 1.25 1.30 0.31 1.30 1.25 0.195 1.25 1.25 0.28 1.30 1.10 0.27 1.10 1.10 0.170 1.10 1.10 0.24 1.10 1.10 0.32 1.15
    50 0.93 0.95 0.3 1.0 0.93 0.19 0.95 0.93 0.28 0.97 0.81 0.26 0.85 0.8 0.165 0.82 0.8 0.24 0.84 0.8 0.32 0.86
    70 0.63 0.65 0.29 0.72 0.63 0.185 0.66 0.63 0.27 0.69 0.56 0.25 0.61 0.55 0.16 0.57 0.55 0.24 0.6 0.55 0.31 0.63
    95 0.46 0.49 0.28 0.56 0.47 0.18 0.5 0.47 0.27 0.54 0.42 0.24 0.48 0.41 0.155 0.43 0.41 0.23 0.47 0.4 0.31 0.51
    120 0.36 0.39 0.27 0.47 0.37 0.175 0.41 0.37 0.26 0.45 0.33 0.23 0.41 0.32 0.15 0.36 0.32 0.23 0.4 0.32 0.3 0.44
    150 0.29 0.31 0.27 0.41 0.3 0.175 0.34 0.29 0.26 0.39 0.27 0.23 0.36 0.26 0.15 0.3 0.26 0.23 0.34 0.26 0.3 0.4
    185 0.23 0.25 0.27 0.37 0.24 0.17 0.29 0.24 0.26 0.35 0.22 0.23 0.32 0.21 0.145 0.26 0.21 0.22 0.31 0.21 0.3 0.36
    240 0.18 0.195 0.26 0.33 0.185 0.165 0.25 0.185 0.25 0.31 0.17 0.23 0.29 0.16 0.145 0.22 0.16 0.22 0.27 0.16 0.29 0.34
    300 0.145 0.16 0.26 0.31 0.15 0.165 0.22 0.15 0.25 0.29 0.14 0.23 0.27 0.13 0.14 0.19 0.13 0.22 0.25 0.13 0.29 0.32
    400 0.105 0.13 0.26 0.29 0.12 0.16 0.2 0.115 0.25 0.27 0.12 0.22 0.25 0.105 0.14 0.175 0.105 0.21 0.24 0.1 0.29 0.31
    500 0.086 0.11 0.26 0.28 0.098 0.155 0.185 0.093 0.24 0.26 0.1 0.22 0.25 0.086 0.135 0.16 0.086 0.21 0.23 0.081 0.29 0.3
    630 0.068 0.094 0.25 0.27 0.081 0.155 0.175 0.076 0.24 0.25 0.08 0.22 0.24 0.072 0.135 0.15 0.072 0.21 0.22 0.066 0.28 0.29
    800 0.053 - - - 0.068 0.15 0.165 0.061 0.24 0.25 - - - 0.06 0.13 0.145 0.06 0.21 0.22 0.053 0.28 0.29
    1000 0.042 - - - 0.059 0.15 0.16 0.05 0.24 0.24 - - - 0.052 0.13 0.14 0.052 0.2 0.21 0.044 0.28 0.28

    Note: *Spacings larger than one cable diameter will result in a large voltage drop.

    r = conductor resistance at operating temperature

    x = reactance

    z = impedance
