    Flame Retardant CAT6 CWB/SWB/SWA Armoured Data Cables

    FGD-CAT6U/UTP4P23 CWB/SWB/SWA

    FGD-CAT6F/UTP4P23 CWB/SWB/SWA

    FGD-CAT6SF/UTP4P23 CWB/SWB/SWA

    i
    • CAT6 CWB/SWB/SWA Armoured Data Cable

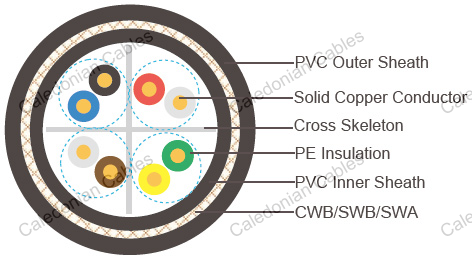

    • U/UTP CAT6
    • F/UTP CAT6
    • SF/UTP CAT6

    APPLICATION

    Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

    STANDARDS

    ISO/IEC 11801 , EN 50173 , ANSI/TIA/EIA 568

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) : BS EN 60332-1-2

    CABLE CONSTRUCTION

    Conductor : 23AWG solid bare copper.

    Insulation : PE.

    Twinning : Two coloured insulated conductors twisted together to form a pair.

    Inner Sheath : Flame retardant, low smoke and halogen-free polyolefin, coloured black.

    Armouring :

    CWB : Copper Wire Braid

    SWB : Steel Wire Braid

    SWA : Steel Wire Armour

    Outer Sheath : Thermoplastic PVC compound.

    Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

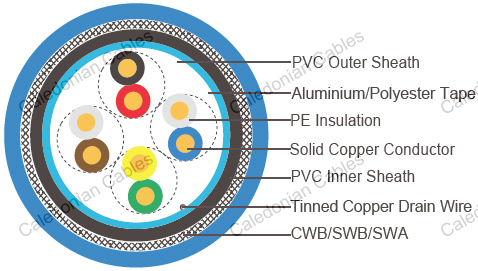

    Cat6F/UTP : These cables have collective shielding of Aluminium/polyester tape with drain wire.

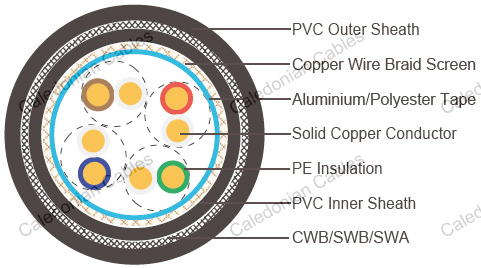

    Cat6SF/UTP : These cables have double collective shielding of Aluminium/polyester tape & copper wire braid with drain wire.

    PHYSICAL AND THERMAL PROPERTIES

    Temperature range : -30°C - +75°C

    Minimum bending radius during installation (mobile state) : 8 x Overall Diameter

    Minimum bending radius during operation (fixed state) : 4 x Overall Diameter

    ELECTRICAL PROPERTIES

    AWG   23
    Nominal Conductor Diameter mm 0.56/0.57/0.58
    Maximum DC Resistance@20°C Ω/100m 9.38
    Maximum DCR Unbalance % 3
    Maximum Mutual Capacitance pF/m 5.8
    Maximum Capacitance Unbalance pF/100m 30
    Characteristic Impedance@1-100MHz Ω 100±15
    Maximum Propagation Delay Skew ns/100m 18

    TRANSMISSION PROPERTIES

    FREQ Attenuation NEXT PSNEXT ELFEXT PSELFEXT RL
    MHz dB/100m dB dB dB/100m dB/100m dB
    0.772 1.8 76.0 74. 70.0 67.0
    1 2.0 74.3 72.3 67.8 64.8 20.0
    4 3.8 65.3 63.3 55.7 52.7 23.0
    8 5.3 60.8 58.8 49.7 46.7 24.5
    10 6.0 59.3 57.3 47.8 44.8 25.0
    16 7.6 56.3 54.3 43.7 40.7 25.0
    20 8.5 54.8 52.8 41.7 38.7 25.0
    25 9.5 53.3 51.3 39.8 36.8 24.3
    31.25 10.7 51.9 49.9 37.9 34.9 23.6
    62.5 15.4 47.4 45.4 31.8 28.8 21.5
    100 19.8 44.3 42.3 27.8 24.8 20.1
    155 25.2 41.5 39.5 23.9 20.9 18.8
    200 29.0 39.8 37.8 21.7 18.7 18.0
    250 32.8 38.3 36.3 19.8 16.8 17.3

    CONSTRUCTION PARAMETERS

    Cable Code Construction No. of Elements×No. of Cores in Element×Conductor Diameter Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Outer Sheath Thickness Approx. Overall Diameter Nominal Weight
      mm mm mm mm mm kg/km
    FGD-CAT6U/UTP4P23 CWB 4×2×0.56/0.57 0.2 0.6 1.0 7.88 115
    FGD-CAT6U/UTP4P23 SWB 4×2×0.56/0.57 0.2 0.6 1.0 7.88 109
    FGD-CAT6U/UTP4P23 SWA 4×2×0.56/0.57 0.2 0.6 1.0 8.88 189
    FGD-CAT6F/UTP4P23 CWB 4×2×0.57/0.58 0.2 0.6 1.0 8.48 126
    FGD-CAT6F/UTP4P23 SWB 4×2×0.57/0.58 0.2 0.6 1.0 8.48 132
    FGD-CAT6F/UTP4P23 SWA 4×2×0.57/0.58 0.2 0.6 1.0 9.48 213
    FGD-CAT6SF/UTP4P23 CWB 4×2×0.57/0.58 0.2 0.6 1.0 8.96 154
    FGD-CAT6SF/UTP4P23 SWB 4×2×0.57/0.58 0.2 0.6 1.0 8.96 148
    FGD-CAT6SF/UTP4P23 SWA 4×2×0.57/0.58 0.2 0.6 1.0 9.96 242
