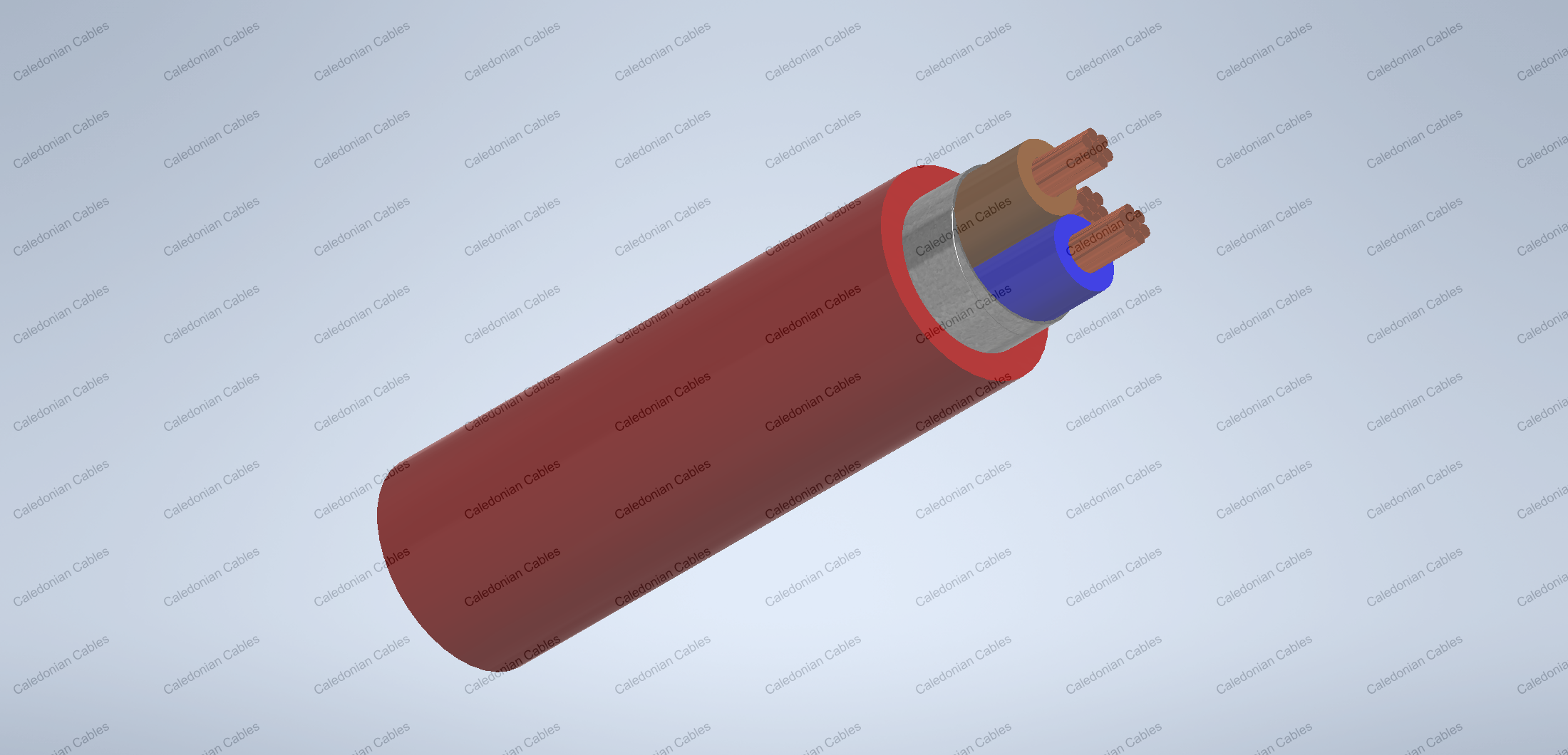

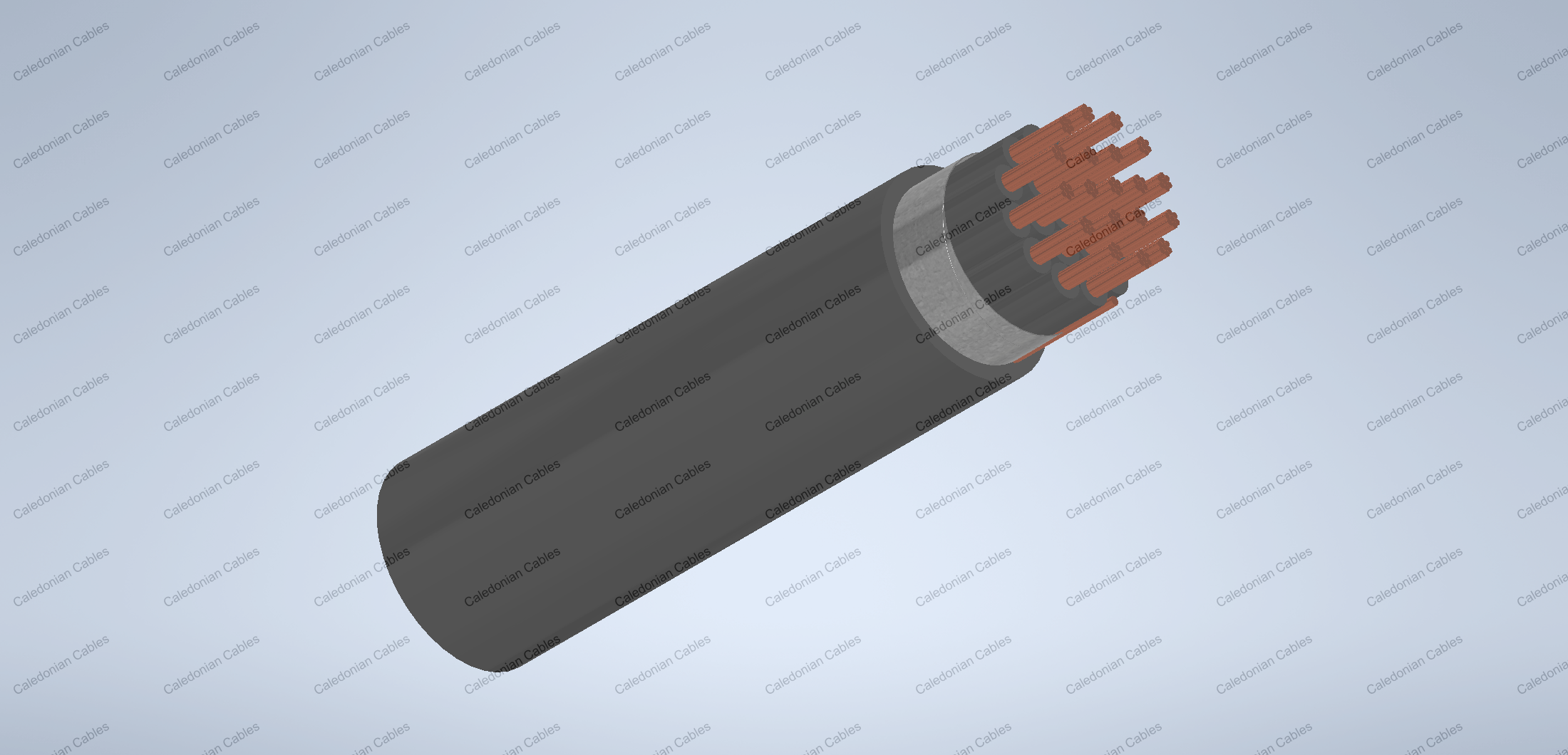

    300/500V SR Insulated, LSZH Sheathed, Screened Power Cables to BS 7629-1 (2-4 Cores & Multcore)

    FFX200 05SOZ1-U/R PH30/PH60 (CU/SR/OSCR/LSZH 300/500V Class 1/2)

    i

    APPLICATION

    The cables are primarily intended for use in the following applications:

    BS 5266-1 for emergency lighting of premises.

    BS 5839-1 for fire detection and fire alarm systems in and around building.

    BS 5839-8 for voice alarm systems.

    BS 5839-9 for emergency voice communication systems.

    STANDARDS

    Basic design to BS 7629-1:2015

    FIRE PERFORMANCE

    Circuit Integrity BS 6387; BS EN50200
    Flame Retardance (single vertical wire or cable test) IEC 60332-1-2; EN 60332-1-2
    Reduced fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
    Halogen free IEC 60754-1; EN 50267-2-1
    No corrosive Gas emission IEC 60754-2; EN 50267-2-2
    Minimum smoke emission IEC 61034-2; EN 61034-2

    VOLTAGE RATING

    300/500V

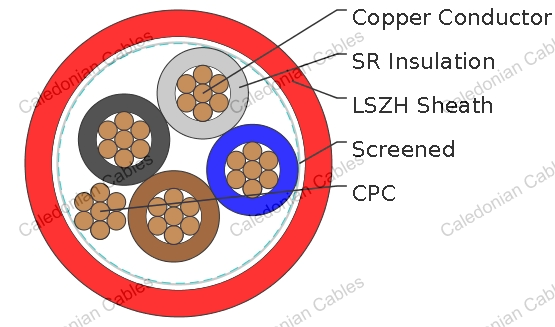

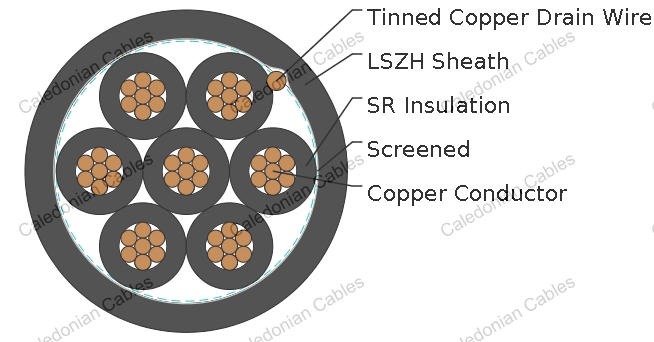

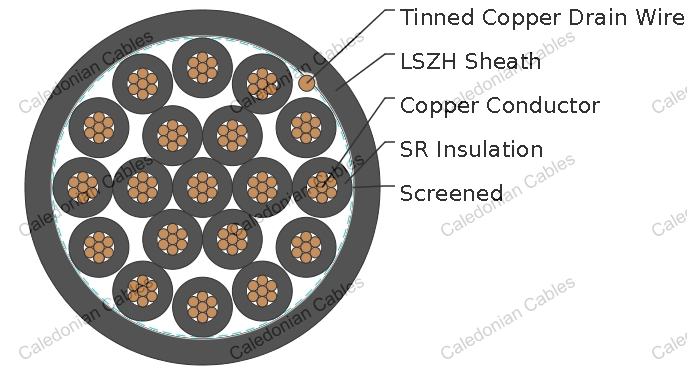

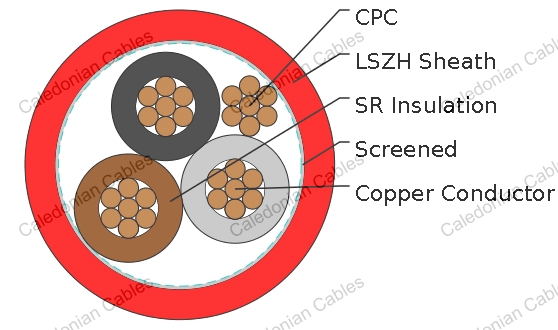

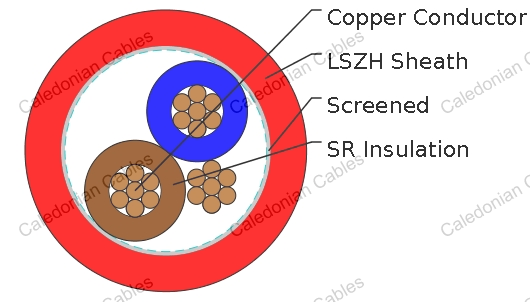

    CABLE CONSTRUCTION

    Conductor : Copper conductor according to BS EN 60228 class 1/2.

    Insulation : Fire resistant special ceramized silicone rubber compound type EI 2 as per BS EN 50363-1.

    Screened : One or more metallic or laminated metallic tape(s) shall be applied, either longitudinally or helically or a combination of both, with the metallic element in contact with the uninsulated circuit protective conductor or drain wire.

    Circuit Protective Conductor : Uninsulated tinned copper conductor of the same section and class as the insulated conductors in the two,three and four cores cables.

    Sheath : Extruded LSZH type LTS 3 according to BS 7655-6.1.

    Insulation Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

    COLOUR CODE

    Insulation Colour :

    Number of cores Core colours or numbering
    2 cores+uninsulated circuit protective conductor Brown, Blue or Brown, Brown
    3 cores+uninsulated circuit protective conductor Brown, Black, Grey
    4 cores+uninsulated circuit protective conductor Brown, Blue, Black, Grey
    7, 12 and19 cores+uninsulated drain wire Numbers 1, 2, 3, 4, 5, 6, 7 and upwards or, for identification by colour, an identical colour(excluding brown and black),except for two adjacent cores in each layer distinctively coloured brown and black.

    Sheath Colour : Colours upon request.

    PHYSICAL AND THERMAL PROPERTIES

    Maximum temperature range during operation : 60°C

    Maximum short circuit temperature (5 Seconds) : 250°C

    Minimum bending radius : 6 x Overall Diameter

    CONSTRUCTION PARAMETERS

    Conductor FFX200 05SOZ1-U/R PH30/PH60
    No. of Cores × Cross-sectional Area Conductor Class Nominal Insulation Thickness CPC Nominal Cross-sectional Area Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
    no.×mm²   mm mm² mm mm kg/km
    2 cores
    2x1.0 1/2 0.6 1.0 0.9 8.0 78
    2x1.5 1/2 0.7 1.5 0.9 8.5 103
    2x2.5 1/2 0.8 2.5 1.0 10.5 150
    2x4.0 1/2 0.8 4.0 1.1 12.5 212
    3 cores
    3x1.5 1/2 0.7 1.5 0.9 9.5 130
    3x2.5 1/2 0.8 2.5 1.0 11.5 191
    3x4.0 1/2 0.8 4.0 1.1 13.5 273
    4 cores
    4x1.5 1/2 0.7 1.5 1.0 10.5 165
    4x2.5 1/2 0.8 2.5 1.1 12.0 242
    4x4.0 1/2 0.8 4.0 1.2 15.0 344
    7 cores
    7x1.5 1/2 0.7 0.5 1.1 12.5 257
    7x2.5 1/2 0.8 0.5 1.2 15.0 568
    12 cores
    12x1.5 1/2 0.7 0.5 1.2 16.0 414
    12x2.5 1/2 0.8 0.5 1.4 20.0 886
    19 cores
    19x1.5 1/2 0.7 0.5 1.3 19.0 617

    ELECTRICAL PROPERTIES

    Conductor operating temperature : 70°C

    Ambient temperature : 30°C

    Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4D2A

    Conductor cross-sectional area Ref. Method A (enclosed in conduit in thermally insulating wall etc) Ref. Method B (enclosed in conduit on a wall or in trunking etc) Ref. Method C (clipped direct) Ref. Method E (in free air or on a perforated cable tray etc. horizontal or vertical)
    1 two-core cable*, single-phase a.c. or d.c. 1 three-core or 1 four-core cable*, three-phase a.c. 1 two-core cable*, singlephase a.c. or d.c. 1 three-core or 1 four-core cable*, three-phase a.c. 1 two-core cable*, single-phase a.c. or d.c. 1 three-core or 1 four-core cable*, three-phase a.c. 1 two-core cable*, single-phase a.c. or d.c. 1 three-core or 1 four-core cable*, three-phase a.c.
    1 2 3 4 5 6 7 8 9
    mm² A A A A A A A A
    1.0 11 10 13 11.5 15 13.5 17 14.5
    1.5 14 13 16.5 15 19.5 17.5 22 18.5
    2.5 18.5 17.5 23 20 27 24 30 25
    4 25 23 30 27 36 32 40 34

    Note: *With or without a protective conductor.

    Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4D2B

    Conductor cross-sectional area Two-core cable d.c. Two-core cable single-phase a.c. Three- or four-core cable, three-phase a.c.
    1 2 3 4
    mm² mV/A/m mV/A/m mV/A/m
    1.0 44 44 38
    1.5 29 29 25
    2.5 18 18 15
    4 11 11 9.5
