    600/1000V Mica+XLPE Insulated, LSZH Sheathed, Armoured Power Cables to BS 7846 (2-5 Cores & Multicore)

    FFX400 1mRZ1MZ1-R (CU/MGT+XLPE/LSZH/SWA/LSZH 600/1000V Class 2)

    i

    APPLICATION

    The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals and high-rise buildings.

    STANDARDS

    Basic design to BS 7846

    FIRE PERFORMANCE

    Circuit Integrity IEC 60331-21; EN 6387; BS 8491
    Flame Retardance (single vertical wire or cable test) IEC 60332-1-2; EN 60332-1-2
    Reduced fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
    Halogen Free IEC 60754-1; EN 50267-2-1
    No Corrosive Gas emission IEC 60754-2; EN 50267-2-2
    Minimum smoke emission IEC 61034-2; EN 61034-2

    VOLTAGE RATING

    600/1000V

    CABLE CONSTRUCTION

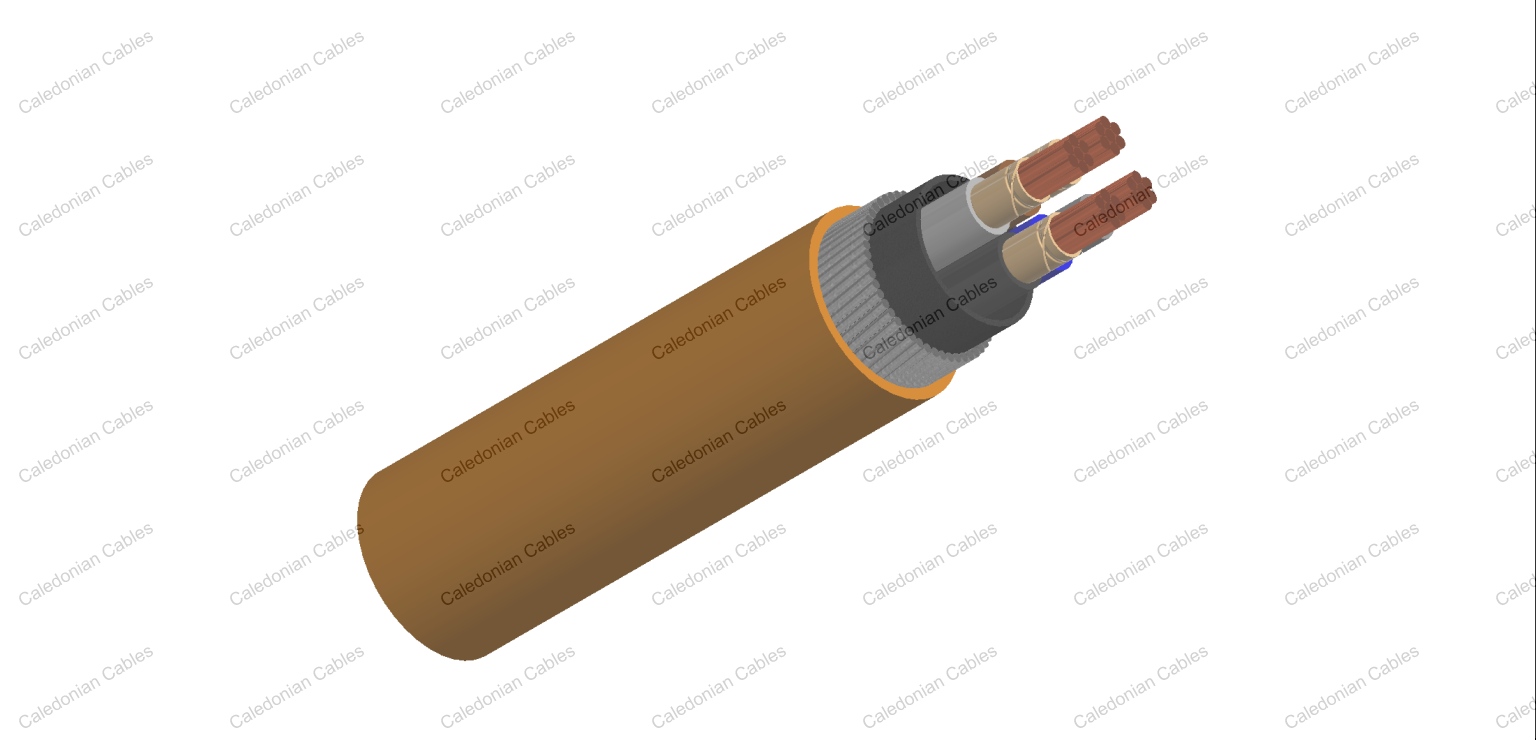

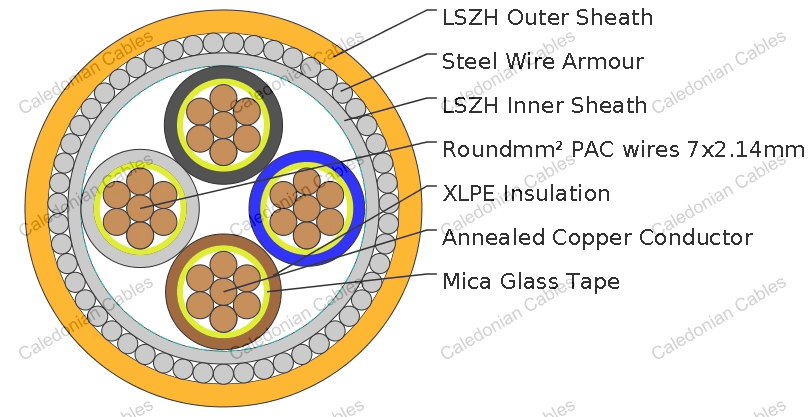

    Conductor : Annealed copper wire, stranded according to BS EN 60228 class 2.

    Fire Barrier : Mica glass tape.

    Insulation : XLPE type GP 8 according to BS 7655-1.3. HEPR type GP 6 according to BS 7655-1.2 or crosslinked polyolefin material type EI 5 according to BS EN 50363-5 can be offered as option.

    Bedding : Extruded layer of polymeric material.

    Armouring : Galvanized steel wire.

    Outer Sheath : Extruded layer of polymeric material LTS 1 according to BS 7655-6.1.

    Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

    COLOUR CODE

    Insulation Colour

    2-core : Brown and blue.

    3-core : Brown, black and grey.

    4-core : Blue, brown, black and grey.

    5-core : Green-and-yellow, blue, brown, black, grey.

    Sheath Colour : Black; other colours can be offered upon request.

    PHYSICAL AND THERMAL PROPERTIES

    Maximum temperature range during operation : 90°C

    Maximum short circuit temperature (5 Seconds) : 250°C

    Minimum bending radius : 8 x Overall Diameter

    CONSTRUCTION PARAMETERS

    Conductor FFX400 1mRZ1MZ1-R
    No. of Cores × Cross-sectional Area Conductor Class Nominal Insulation Thickness Nominal Bedding Thickness Nominal Steel Wire Armour Diameter Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
    No.×mm²   mm mm mm mm mm kg/km
    2 cores
    2×1.5a 2 0.6 0.8 0.9 1.3 13.5 345
    2×2.5a 2 0.7 0.8 0.9 1.4 14.9 413
    2×4a 2 0.7 0.8 0.9 1.4 16.0 478
    2×4a&c 2 0.7 0.8 1.25 1.4 16.7 581
    2×6a 2 0.7 0.8 0.9 1.4 17.2 555
    2×6a&c 2 0.7 0.8 1.25 1.4 17.9 666
    2×10a 2 0.7 0.8 0.9 1.5 19.2 708
    2×10a&c 2 0.7 0.8 1.25 1.5 19.9 832
    2×16a 2 0.7 0.8 1.25 1.5 22.0 1036
    2×25a 2 0.9 0.8 1.25 1.6 25.7 1386
    2×25b 2 0.9 0.8 1.25 1.6 23.5 1311
    2×35a 2 0.9 1.0 1.6 1.7 29.0 1918
    2×35b 2 0.9 1.0 1.6 1.7 26.5 1814
    2×50b 2 1.0 1.0 1.6 1.8 28.5 2330
    2×70b 2 1.1 1.0 1.6 1.9 32.0 2968
    2×95b 2 1.1 1.2 2.0 2.0 36.0 4085
    2×120b 2 1.2 1.2 2.0 2.1 39.0 4846
    2×150b 2 1.4 1.2 2.0 2.2 42.0 6223
    2×185b 2 1.6 1.4 2.5 2.4 48.0 7479
    2×240b 2 1.7 1.4 2.5 2.5 52.0 9137
    2×300b 2 1.8 1.6 2.5 2.6 57.0 10937
    2×400b 2 2.0 1.6 2.5 2.8 62.0 13316
    3 cores
    3×1.5a 2 0.6 0.8 0.9 1.3 14.1 384
    3×2.5a 2 0.7 0.8 0.9 1.4 15.6 467
    3×4a 2 0.7 0.8 0.9 1.4 16.8 551
    3×4a&c 2 0.7 0.8 1.25 1.4 17.5 659
    3×6a 2 0.7 0.8 0.9 1.4 18.0 652
    3×6a&c 2 0.7 0.8 1.25 1.4 18.7 768
    3×10a 2 0.7 0.8 1.25 1.5 20.9 985
    3×16a 2 0.7 0.8 1.25 1.6 23.4 1269
    3×25a 2 0.9 1.0 1.6 1.7 28.4 1953
    3×25b 2 0.9 1.0 1.6 1.7 26.5 1874
    3×35a 2 0.9 1.0 1.6 1.8 31.0 2393
    3×35b 2 0.9 1.0 1.6 1.8 28.5 2286
    3×50b 2 1.0 1.0 1.6 1.8 32.0 2952
    3×70b 2 1.1 1.0 1.6 1.9 35.0 3852
    3×95b 2 1.1 1.2 2.0 2.1 40.0 5312
    3×120b 2 1.2 1.2 2.0 2.2 44.0 6364
    3×150b 2 1.4 1.4 2.5 2.3 49.0 8113
    3×185b 2 1.6 1.4 2.5 2.4 53.0 9706
    3×240b 2 1.7 1.4 2.5 2.6 58.0 12045
    3×300b 2 1.8 1.6 2.5 2.7 63.0 14536
    3×400b 2 2.0 1.6 2.5 2.9 70.0 17866
    4 cores
    4×1.5a 2 0.6 0.8 0.9 1.3 15.1 433
    4×2.5a 2 0.7 0.8 0.9 1.4 16.7 532
    4×4a 2 0.7 0.8 0.9 1.4 18.1 637
    4×4a&c 2 0.7 0.8 1.25 1.4 18.8 856
    4×6a 2 0.7 0.8 1.25 1.5 20.3 901
    4×10a 2 0.7 0.8 1.25 1.5 22.6 1159
    4×16a 2 0.7 0.8 1.25 1.6 25.3 1516
    4×25a 2 0.9 1.0 1.6 1.7 30.8 2341
    4×25b 2 0.9 1.0 1.6 1.7 29.5 2286
    4×35a 2 0.9 1.0 1.6 1.8 33.7 2898
    4×35b 2 0.9 1.0 1.6 1.8 32.0 2824
    4×50b 2 1.0 1.0 1.6 1.9 35.0 3628
    4×70b 2 1.1 1.2 2.0 2.1 41.0 5188
    4×95b 2 1.1 1.2 2.0 2.2 45.0 6585
    4×120b 2 1.2 1.4 2.5 2.3 50.0 8520
    4×150b 2 1.4 1.4 2.5 2.4 55.0 10071
    4×185b 2 1.6 1.4 2.5 2.6 60.0 12149
    4×240b 2 1.7 1.6 2.5 2.7 66.0 15217
    4×300b 2 1.8 1.6 2.5 2.9 70.0 18373
    4×400b 2 2.0 1.8 3.15 3.2 81.0 23960
    5 cores
    5×1.5 2 0.6 0.8 0.9 1.4 16.3 495
    5×2.5 2 0.7 0.8 0.9 1.4 18.0 603
    5×4 2 0.7 0.8 0.9 1.5 19.7 739
    5×4b 2 0.7 0.8 1.25 1.5 20.4 869
    5×6 2 0.7 0.8 1.25 1.5 21.9 1031
    5×10 2 0.7 0.8 1.25 1.6 24.6 1356
    5×16 2 0.7 1.0 1.6 1.7 28.7 2010
    5×25 2 0.9 1.0 1.6 1.8 33.6 2762
    5×35 2 0.9 1.0 1.6 1.9 36.9 3440
    5×50 2 1.0 1.2 2.0 2.0 42.4 4700
    5×70 2 1.1 1.2 2.0 2.2 48.2 6186
    Multicore
    7×1.5 2 0.6 0.8 0.9 1.4 17.5 574
    7×1.5c 2 0.6 0.8 1.25 1.4 18.2 687
    7×2.5 2 0.7 0.8 0.9 1.4 19.3 711
    7×2.5c 2 0.7 0.8 1.25 1.4 20.0 837
    7×4 2 0.7 0.8 1.25 1.5 21.8 1024
    12×1.5 2 0.6 0.8 1.25 1.6 22.7 968
    12×2.5 2 0.7 0.8 1.25 1.6 25.5 1218
    12×4 2 0.7 0.8 1.25 1.5 28.8 1725
    19×1.5 2 0.6 1.0 1.6 1.6 26.1 1255
    19×2.5 2 0.7 0.8 1.6 1.7 30.5 1844
    19×4 2 0.7 1.0 1.6 1.7 33.2 2285
    27×1.5 2 0.6 1.0 1.6 1.7 31.7 1856
    27×2.5 2 0.6 1.0 1.6 1.7 35.7 2367
    27×4 2 0.7 1.0 1.6 1.9 39.2 2993
    37×1.5 2 0.7 1.0 1.6 1.7 34.9 2223
    37×2.5 2 0.7 1.0 1.6 1.7 39.4 2878
    37×4 2 0.7 1.2 2.0 2.0 44.8 4109

    a Circular or compacted circular stranded conductor (Class 2).

    b Shaped stranded conductor (Class 2).

    c Cables with alternative armour wire size.
