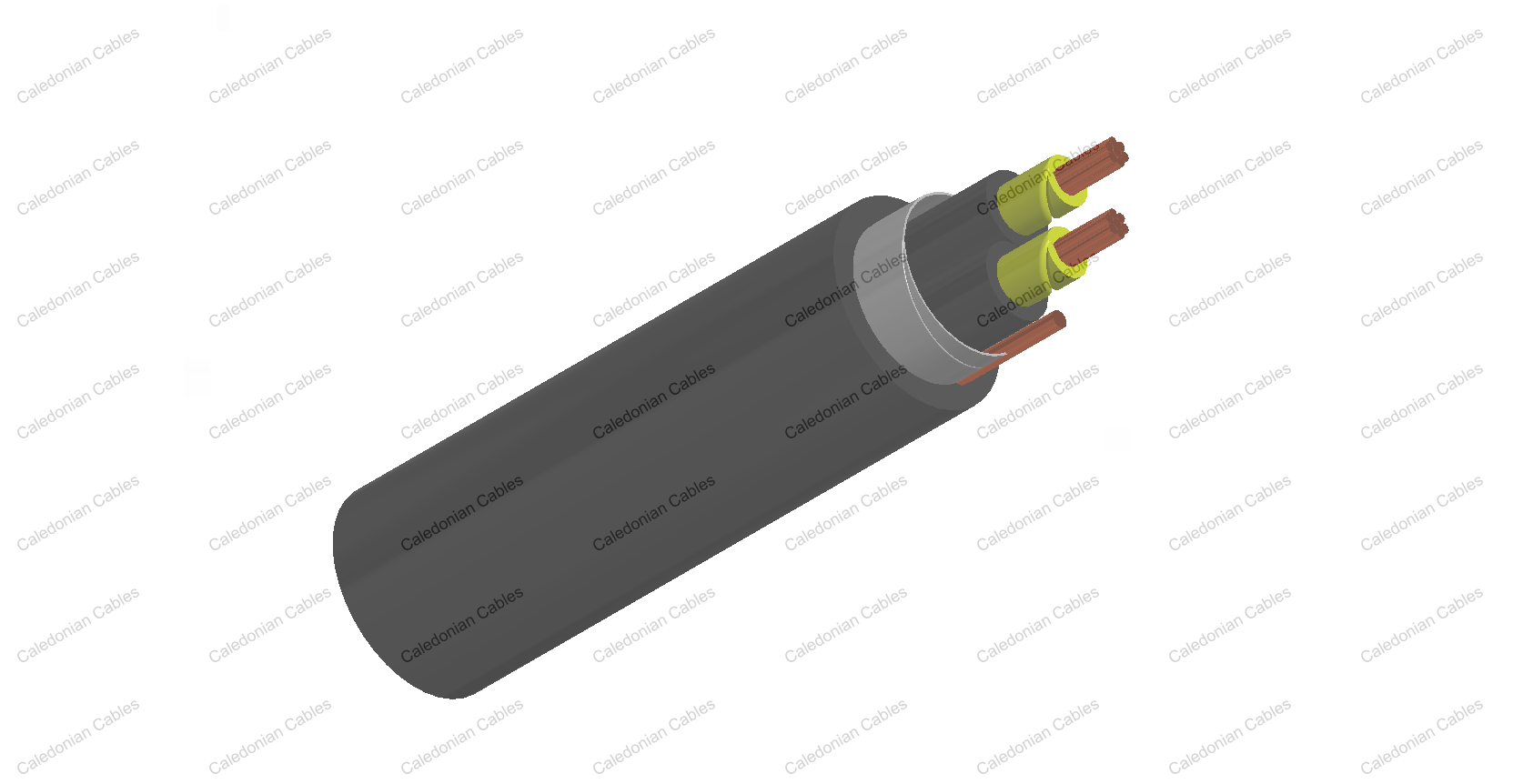

    Fire Resistant Overall Screened Instrumentation Cables (Multicore)

    RE-2X(St)H...CI

    APPLICATION

    The LSZH sheathed cables are generally used for indoor installation and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

    STANDARDS

    Basic design to BS EN 50288-7 (formerly BS 5308)

    FIRE PERFORMANCE

    Circuit Integrity IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120)
    Flame Retardance (Single Vertical Wire or cable test) IEC 60332-1-2; EN 60332-1-2
    Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
    Halogen Free IEC 60754-1; EN 50267-2-1
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
    Minimum Smoke Emission IEC 61034-2; EN 61034-2

    VOLTAGE RATING

    300, 500V

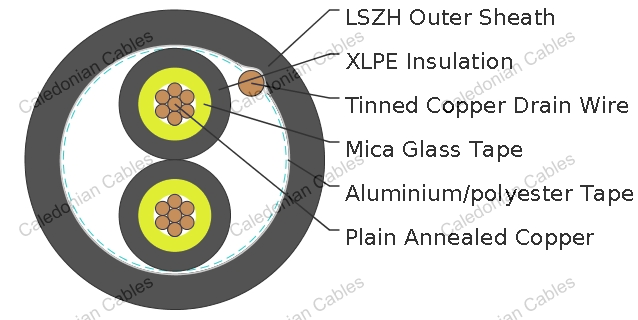

    CABLE CONSTRUCTION

    Conductor Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and class 5.
    Fire Barrier Mica glass tape.
    Insulation Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
    Overall Screen Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm². Copper braid screen or aluminium/polyester tape combination with copper braid screen can be offered as option.
    Outer Sheath Halogen free flame retardant compound to EN 50290-2-27.
    Outer Sheath Option UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

    COLOUR CODE

    Insulation Colour Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
    Outer Sheath Black. Other colours can be offered upon request.

    PHYSICAL AND THERMAL PROPERTIES

    Temperature range during operation -30°C - +90°C
    Temperature range fixed installation -5°C - +50°C
    Maximum short circuit temperature (5 Seconds) 250°C
    Minimum bending radius 7.5 x Overall Diameter

    ELECTRICAL PROPERTIES

    300V

    Conductor area size mm² 0.5 0.75 1.0 1.5
    Insulation thickness (Nominal) mm 0.4 0.4 0.4 0.5
    Insulation thickness (Minimum) mm 0.26 0.26 0.26 0.35
    Conductor resistance (20°C) ohm/km 36.7 25.0 18.5 12.3
    Minimum Insulation resistance (20°C) Mohm/km 1000
    Maximum Mutual capacitance nf/km 250
    Capacitance Unbalance pf/500m 500
    Maximum l/R (ratio) μH/Ω 25 25 25 40
    Operating Voltage V 300
    Dielectric strength for 1 minute AC V ≥1000
    DC V ≥2000

    500v

    Conductor area size mm² 0.5 0.75 1.0 1.5 2.5
    Insulation thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
    Insulation thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
    Conductor resistance (20°C) ohm/km 36.7 25.0 18.5 12.3 7.4
    Minimum Insulation resistance (20°C) Mohm/km 1000
    Maximum Mutual capacitance nf/km 250
    Capacitance Unbalance pf/500m 500
    Maximum l/R (ratio) μH/Ω 25 25 25 40 60
    Operating Voltage V 500
    Dielectric strength for 1 minute AC V ≥2000
    DC V ≥3000

    CONSTRUCTION PARAMETERS

    300V

    Conductor RE-2X(St)H...CI
    No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
    mm²   mm mm mm kg/km
    0.5mm²
    2x0.5 2 0.4 0.9 7.4 65
    3x0.5 2 0.4 0.9 7.8 79
    4x0.5 2 0.4 0.9 8.5 95
    5x0.5 2 0.4 0.9 9.3 112
    8x0.5 2 0.4 1.0 11.1 164
    10x0.5 2 0.4 1.0 13.0 200
    12x0.5 2 0.4 1.0 13.4 226
    14x0.5 2 0.4 1.0 14.1 254
    16x0.5 2 0.4 1.0 14.8 283
    20x0.5 2 0.4 1.1 16.3 348
    24x0.5 2 0.4 1.1 18.5 412
    27x0.5 2 0.4 1.1 19.0 450
    30x0.5 2 0.4 1.2 19.9 503
    37x0.5 2 0.4 1.2 21.4 598
    40x0.5 2 0.4 1.2 22.2 639
    0.75mm²
    2x0.75 2 0.4 0.9 7.7 73
    3x0.75 2 0.4 0.9 8.2 91
    4x0.75 2 0.4 0.9 8.9 110
    5x0.75 2 0.4 1.0 9.9 136
    8x0.75 2 0.4 1.0 11.7 192
    10x0.75 2 0.4 1.1 13.9 244
    12x0.75 2 0.4 1.1 14.3 276
    14x0.75 2 0.4 1.1 15.1 311
    16x0.75 2 0.4 1.1 15.9 347
    20x0.75 2 0.4 1.2 17.4 426
    24x0.75 2 0.4 1.3 20.0 517
    27x0.75 2 0.4 1.3 20.5 565
    30x0.75 2 0.4 1.3 21.2 616
    37x0.75 2 0.4 1.3 22.9 733
    40x0.75 2 0.4 1.4 24.0 800
    1.0mm²
    2x1.0 2 0.4 0.9 8.2 84
    3x1.0 2 0.4 0.9 8.6 106
    4x1.0 2 0.4 0.9 9.4 129
    5x1.0 2 0.4 0.9 10.3 154
    8x1.0 2 0.4 1.0 12.4 229
    10x1.0 2 0.4 1.0 14.5 281
    12x1.0 2 0.4 1.0 15.0 322
    14x1.0 2 0.4 1.0 15.8 365
    16x1.0 2 0.4 1.1 16.9 419
    20x1.0 2 0.4 1.2 18.5 516
    24x1.0 2 0.4 1.2 21.1 612
    27x1.0 2 0.4 1.2 21.6 672
    30x1.0 2 0.4 1.2 22.4 735
    37x1.0 2 0.4 1.3 24.4 896
    40x1.0 2 0.4 1.3 25.3 960
    1.5mm²
    2x1.5 2 0.5 0.9 9.1 104
    3x1.5 2 0.5 0.9 9.6 134
    4x1.5 2 0.5 1.0 10.8 172
    5x1.5 2 0.5 1.0 11.8 205
    8x1.5 2 0.5 1.1 14.1 306
    10x1.5 2 0.5 1.1 16.6 377
    12x1.5 2 0.5 1.1 17.1 433
    14x1.5 2 0.5 1.2 18.3 503
    16x1.5 2 0.5 1.2 19.3 564
    20x1.5 2 0.5 1.3 21.1 694
    24x1.5 2 0.5 1.3 24.1 824
    27x1.5 2 0.5 1.4 24.8 922
    30x1.5 2 0.5 1.4 25.8 1009
    37x1.5 2 0.5 1.4 27.9 1211
    40x1.5 2 0.5 1.5 29.1 1317

    500v

    Conductor RE-2X(St)H...CI
    No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
    mm²   mm mm mm kg/km
    0.5mm²
    2x0.5 2 0.6 0.9 8.2 74
    3x0.5 2 0.6 0.9 8.7 91
    4x0.5 2 0.6 0.9 9.5 109
    5x0.5 2 0.6 0.9 10.3 129
    8x0.5 2 0.6 1.0 12.4 189
    10x0.5 2 0.6 1.0 14.6 231
    12x0.5 2 0.6 1.1 15.2 272
    14x0.5 2 0.6 1.1 16.0 305
    16x0.5 2 0.6 1.1 16.9 339
    20x0.5 2 0.6 1.2 18.5 416
    24x0.5 2 0.6 1.2 21.1 492
    27x0.5 2 0.6 1.2 21.6 537
    30x0.5 2 0.6 1.3 22.6 599
    37x0.5 2 0.6 1.3 24.4 711
    40x0.5 2 0.6 1.3 25.4 760
    0.75mm²
    2x0.75 2 0.6 0.9 8.5 82
    3x0.75 2 0.6 0.9 9.0 102
    4x0.75 2 0.6 0.9 9.9 125
    5x0.75 2 0.6 1.0 11.0 154
    8x0.75 2 0.6 1.0 13.0 218
    10x0.75 2 0.6 1.0 15.3 268
    12x0.75 2 0.6 1.0 15.8 305
    14x0.75 2 0.6 1.1 16.8 355
    16x0.75 2 0.6 1.1 17.8 396
    20x0.75 2 0.6 1.2 19.5 486
    24x0.75 2 0.6 1.3 22.4 590
    27x0.75 2 0.6 1.3 22.9 645
    30x0.75 2 0.6 1.3 23.8 703
    37x0.75 2 0.6 1.4 25.9 854
    40x0.75 2 0.6 1.4 26.9 914
    1.0mm²
    2x1.0 2 0.6 0.9 9.0 93
    3x1.0 2 0.6 0.9 9.5 118
    4x1.0 2 0.6 1.0 10.6 151
    5x1.0 2 0.6 1.0 11.6 179
    8x1.0 2 0.6 1.0 13.7 257
    10x1.0 2 0.6 1.1 16.3 325
    12x1.0 2 0.6 1.1 16.9 372
    14x1.0 2 0.6 1.1 17.8 421
    16x1.0 2 0.6 1.2 19.0 482
    20x1.0 2 0.6 1.2 20.5 579
    24x1.0 2 0.6 1.3 23.7 702
    27x1.0 2 0.6 1.3 24.2 770
    30x1.0 2 0.6 1.3 25.1 841
    37x1.0 2 0.6 1.4 27.4 1023
    40x1.0 2 0.6 1.4 28.4 1096
    1.5mm²
    2x1.5 2 0.6 0.9 9.5 109
    3x1.5 2 0.6 1.0 10.3 146
    4x1.5 2 0.6 1.0 11.3 180
    5x1.5 2 0.6 1.0 12.3 215
    8x1.5 2 0.6 1.1 14.8 322
    10x1.5 2 0.6 1.2 17.6 407
    12x1.5 2 0.6 1.2 18.2 466
    14x1.5 2 0.6 1.2 19.2 529
    16x1.5 2 0.6 1.2 20.2 592
    20x1.5 2 0.6 1.3 22.1 729
    24x1.5 2 0.6 1.4 25.5 881
    27x1.5 2 0.6 1.4 26.1 969
    30x1.5 2 0.6 1.4 27.1 1060
    37x1.5 2 0.6 1.5 29.5 1290
    40x1.5 2 0.6 1.5 30.6 1383
    2.5mm²
    2x2.5 2 0.7 1.0 10.9 150
    3x2.5 2 0.7 1.0 11.6 195
    4x2.5 2 0.7 1.0 12.7 243
    5x2.5 2 0.7 1.1 14.2 301
    8x2.5 2 0.7 1.2 17.0 452
    10x2.5 2 0.7 1.3 20.3 570
    12x2.5 2 0.7 1.3 21.0 657
    14x2.5 2 0.7 1.3 22.1 748
    16x2.5 2 0.7 1.4 23.5 854
    20x2.5 2 0.7 1.4 25.5 1034
    24x2.5 2 0.7 1.5 29.4 1248
    27x2.5 2 0.7 1.6 30.3 1395
    30x2.5 2 0.7 1.6 31.4 1528
    37x2.5 2 0.7 1.7 34.2 1859
    40x2.5 2 0.7 1.7 35.5 1995

    Note: Other conductor sizes & core configurations are available upon request.
