Fire Resistant Copper Braid Screened, Armoured Instrumentation Cables(Multicore)

RE-2X(C)HSWAH ... CI

Application

The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

Standards

Basic design to BS EN 50288-7 (formerly BS 5308)

Fire Performance

Circuit Integrity	IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120)
Flame Retardance (Single vertical wire or cable test)	IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test)	IEC 60332-3-24; EN 60332-3-24
Halogen Free	IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission	IEC 61034-2; EN 61034-2

Voltage Rating

300, 500V

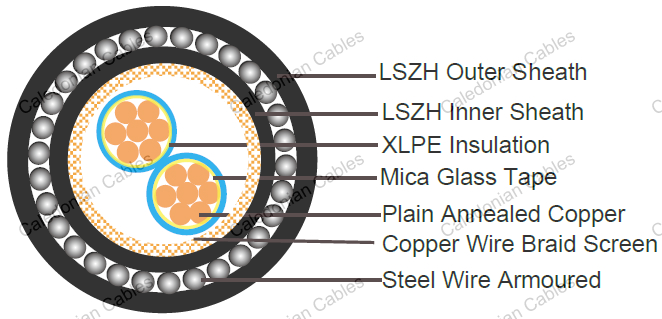

Cable Construction

Conductor: Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and class 5.
Fire Barrier: Mica glass tape.
Insulation: Extruded XLPE compound according to EN 50290-2-29.
Overall Screen: Copper braid screen.
Inner Sheath: Thermoplastic LSZH compound.
Armouring: Galvanised steel wire.
Outer Sheath: Halogen free flame retardant compound to EN 50290-2-27.

Colour code

Insulation Colour: Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer Sheath: Black. Other colours can be offered upon request.

Physical and thermal properties

Temperature range during operation: -30°C - +90°C
Temperature range fixed installation: -5°C - +50°C
Maximum short circuit temperature (5 Seconds): 250°C
Minimum bending radius: 10 x Overall Diameter

Construction Parameters

Number of core / Nominal cross section area of conductor	Number and diameter of wire	Thickness of insulation	Thickness of inner covering	Diameter of armour wire	Thickness of outer sheath	Reference overall diameter	Conductor resistance
mm²	n/mm	mm	mm	mm	mm	mm	Ω/km
2 x 0.5	7×0.31	0.6	0.9	0.9	1.3	12.6	36.0
3 x 0.5	7×0.31	0.6	0.9	0.9	1.3	13.1	36.0
4 x 0.5	7×0.31	0.6	0.9	0.9	1.4	14.1	36.0
5 x 0.5	7×0.31	0.6	0.9	0.9	1.4	14.9	36.0
8 x 0.5	7×0.31	0.6	1	0.9	1.4	17	36.0
10 x 0.5	7×0.31	0.6	1	0.9	1.5	19.4	36.0
12 x 0.5	7×0.31	0.6	1.1	0.9	1.5	20	36.0
14 x 0.5	7×0.31	0.6	1.1	1.25	1.5	21.5	36.0
16 x 0.5	7×0.31	0.6	1.1	1.25	1.5	22.4	36.0
20 x 0.5	7×0.31	0.6	1.2	1.25	1.5	24	36.0
24 x 0.5	7×0.31	0.6	1.2	1.25	1.6	26.8	36.0
27 x 0.5	7×0.31	0.6	1.2	1.25	1.6	27.3	36.0
30 x 0.5	7×0.31	0.6	1.3	1.25	1.6	28.3	36.0
37 x 0.5	7×0.31	0.6	1.3	1.25	1.6	30.1	36.0
40 x 0.5	7×0.31	0.6	1.3	1.6	1.7	32	36.0
50 x 0.5	7×0.31	0.6	1.6	1.6	1.9	34.6	36.0
2 x 0.75	7×0.37	0.6	0.9	0.9	1.3	12.9	24.5
3 x 0.75	7×0.37	0.6	0.9	0.9	1.3	13.4	24.5
4 x 0.75	7×0.37	0.6	0.9	0.9	1.4	14.5	24.5
5 x 0.75	7×0.37	0.6	1	0.9	1.4	15.6	24.5
8 x 0.75	7×0.37	0.6	1	0.9	1.4	17.6	24.5
10 x 0.75	7×0.37	0.6	1	0.9	1.5	20.1	24.5
12 x 0.75	7×0.37	0.6	1	1.25	1.5	21.3	24.5
14 x 0.75	7×0.37	0.6	1.1	1.25	1.5	22.3	24.5
16 x 0.75	7×0.37	0.6	1.1	1.25	1.5	23.3	24.5
20 x 0.75	7×0.37	0.6	1.2	1.25	1.6	25.2	24.5
24 x 0.75	7×0.37	0.6	1.3	1.25	1.6	28.1	24.5
27 x 0.75	7×0.37	0.6	1.3	1.25	1.6	28.6	24.5
30 x 0.75	7×0.37	0.6	1.3	1.25	1.6	29.5	24.5
37 x 0.75	7×0.37	0.6	1.4	1.6	1.7	32.5	24.5
40 x 0.75	7×0.37	0.6	1.4	1.6	1.7	33.5	24.5
50 x 0.75	7×0.37	0.6	1.6	1.6	1.9	36.1	24.5
2 x 1.0	7×0.44	0.6	0.9	0.9	1.3	13.4	18.1
3 x 1.0	7×0.44	0.6	0.9	0.9	1.4	14.1	18.1
4 x 1.0	7×0.44	0.6	1	0.9	1.4	15.2	18.1
5 x 1.0	7×0.44	0.6	1	0.9	1.4	16.2	18.1
8 x 1.0	7×0.44	0.6	1	0.9	1.4	18.3	18.1
10 x 1.0	7×0.44	0.6	1.1	1.25	1.5	21.8	18.1
12 x 1.0	7×0.44	0.6	1.1	1.25	1.5	22.4	18.1
14 x 1.0	7×0.44	0.6	1.1	1.25	1.5	23.3	18.1
16 x 1.0	7×0.44	0.6	1.2	1.25	1.6	24.7	18.1
20 x 1.0	7×0.44	0.6	1.2	1.25	1.6	26.3	18.1
24 x 1.0	7×0.44	0.6	1.3	1.25	1.6	29.4	18.1
27 x 1.0	7×0.44	0.6	1.3	1.25	1.7	30.1	18.1
30 x 1.0	7×0.44	0.6	1.3	1.6	1.7	31.7	18.1
37 x 1.0	7×0.44	0.6	1.4	1.6	1.7	34	18.1
40 x 1.0	7×0.44	0.6	1.4	1.6	1.8	35.2	18.1
50 x 1.0	7×0.44	0.6	1.8	1.6	2	38.4	18.1
2 x 1.5	7×0.53	0.6	0.9	0.9	1.3	14.1	12.1
3 x 1.5	7×0.53	0.6	1	0.9	1.4	14.9	12.1
4 x 1.5	7×0.53	0.6	1	0.9	1.4	15.9	12.1
5 x 1.5	7×0.53	0.6	1	0.9	1.4	17	12.1
8 x 1.5	7×0.53	0.6	1.1	0.9	1.5	19.6	12.1
10 x 1.5	7×0.53	0.6	1.2	1.25	1.5	23.1	12.1
12 x 1.5	7×0.53	0.6	1.2	1.25	1.6	23.9	12.1
14 x 1.5	7×0.53	0.6	1.2	1.25	1.6	24.9	12.1
16 x 1.5	7×0.53	0.6	1.2	1.25	1.6	25.9	12.1
20 x 1.5	7×0.53	0.6	1.3	1.25	1.7	28	12.1
24 x 1.5	7×0.53	0.6	1.4	1.6	1.7	32.1	12.1
27 x 1.5	7×0.53	0.6	1.4	1.6	1.7	32.7	12.1
30 x 1.5	7×0.53	0.6	1.4	1.6	1.8	33.9	12.1
37 x 1.5	7×0.53	0.6	1.5	1.6	1.8	36.3	12.1
40 x 1.5	7×0.53	0.6	1.5	1.6	1.8	37.3	12.1
50 x 1.5	7×0.53	0.6	1.8	1.6	2.1	40.9	12.1
2 x 2.5	7×0.67	0.7	1	0.9	1.4	15.5	7.41
3 x 2.5	7×0.67	0.7	1	0.9	1.4	16.2	7.41
4 x 2.5	7×0.67	0.7	1	0.9	1.4	17.3	7.41
5 x 2.5	7×0.67	0.7	1.1	0.9	1.5	18	7.41
8 x 2.5	7×0.67	0.7	1.2	1.25	1.5	22.5	7.41
10 x 2.5	7×0.67	0.7	1.3	1.25	1.6	26	7.41
12 x 2.5	7×0.67	0.7	1.3	1.25	1.6	26.7	7.41
14 x 2.5	7×0.67	0.7	1.3	1.25	1.7	28	7.41
16 x 2.5	7×0.67	0.7	1.4	1.25	1.7	29.4	7.41
20 x 2.5	7×0.67	0.7	1.4	1.6	1.8	32.3	7.41
24 x 2.5	7×0.67	0.7	1.5	1.6	1.8	36.2	7.41
27 x 2.5	7×0.67	0.7	1.6	1.6	1.9	37.3	7.41
30 x 2.5	7×0.67	0.7	1.6	1.6	1.9	38.4	7.41
37 x 2.5	7×0.67	0.7	1.7	1.6	1.9	41.2	7.41
40 x 2.5	7×0.67	0.7	1.7	1.6	2	42.7	7.41
50 x 2.5	7×0.67	0.7	1.9	2	2.2	47.3	7.41
