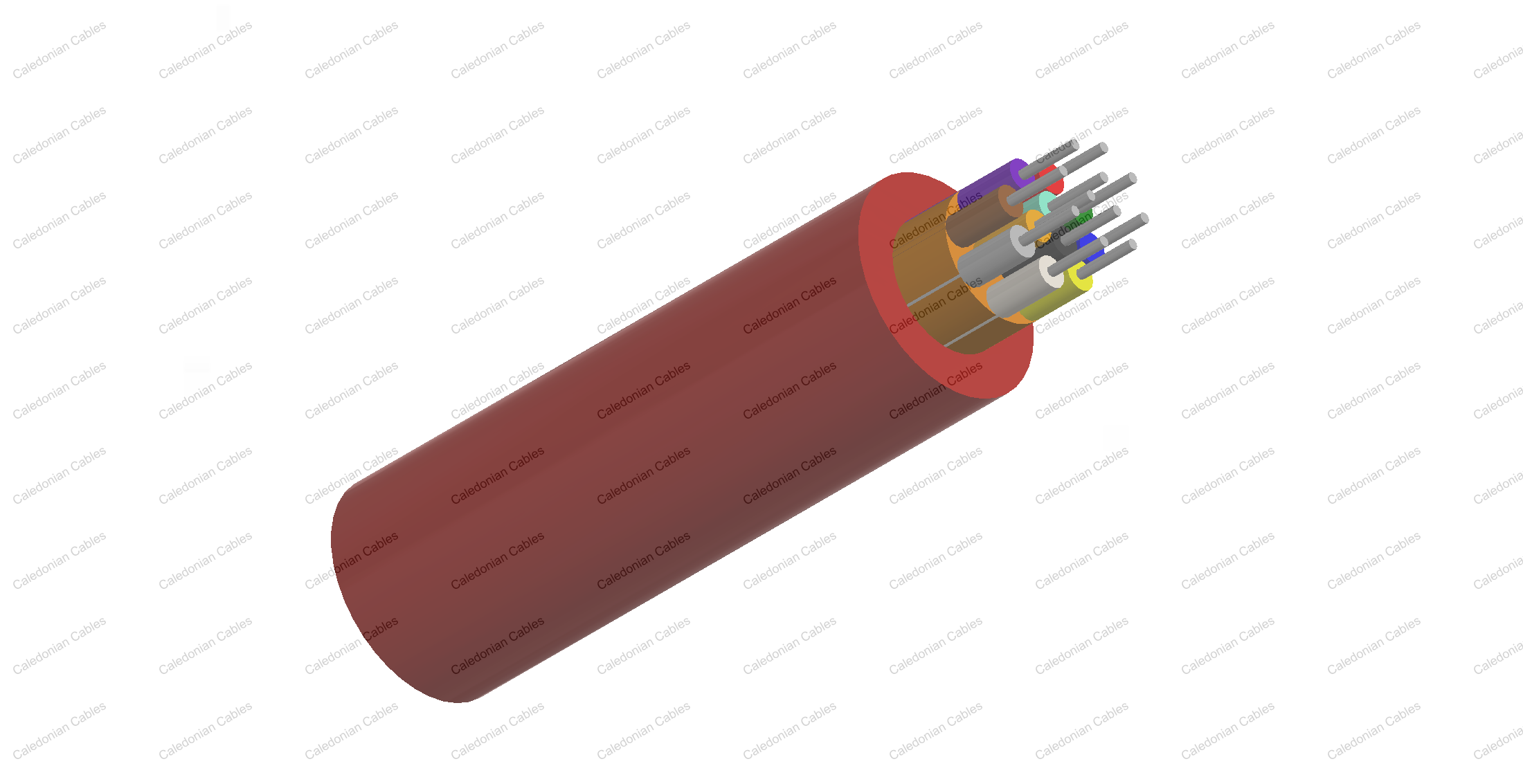

This cable is used for interconnection of the distribution boxes and end devices. The cable is very suitable for various indoor and outdoor applications, including routing between buildings within ducts and inside building up to riser shafts.

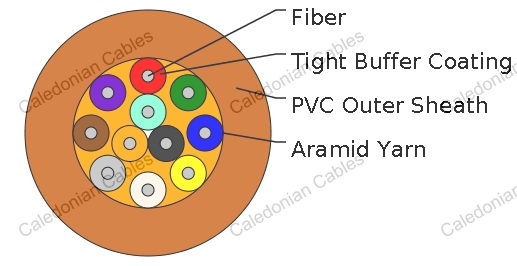

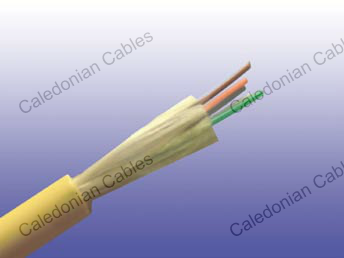

The Distribution Cable consists of color-coded PVC tight buffered fibers. The fibers are reinforced with aramid yarn for superior strength and contains no metallic elements. The fibers are jacketed with Flame Retardant PVC or LSZH compound.
| Fiber Count | Nominal Weight(kg/km) | Nominal Weight(lb/kft) | Nominal Outer Diameter(mm) | Nominal Outer Diameter(in) | Maximum Pulling Load | |
| Installation(N/Ib) | In Service(N/Ib) | |||||
| 2-6 | 26.0 | 17.45 | 5.0 | 0.197 | 1000/225 | 290/65 |
| 8-12 | 50.0 | 33.56 | 7.5 | 0.296 | 1425/320 | 500/112 |
| 14-24 | 140.0 | 93.96 | 13.0 | 0.512 | 2670/600 | 890/200 |
| 26-36 | 200.0 | 134.23 | 16.5 | 0.650 | 4448/1000 | 1490/335 |
| 38-48 | 300.0 | 201.34 | 18.0 | 0.709 | 4448/1000 | 1490/335 |
| Minimum Bending Radius: | Maximum Compressive Load: 2000N |
| Under installation: 20×OD | Repeated Impact: 2.9 N.m (J) 3×2 impacts |
| During operation: 10×OD | Twist (Torsion): 180×10 times, 125×OD |
| Temperature Range: | Cyclic Flexing: 25 cycles for armoured cables |
| Operating Temperature Range: -40℃(-40℉) to +70℃(+158℉) | 100 cycles for unarmoured cables. |
| Storage Temperature Range: -50℃(-58℉) to +70℃(+158℉) | Crush Resistance: 1485N/cm (850lb/in) |
|
Temperature Cycling Tensile Strength Crush Impact Repeated Bending Torsion Kink Cable Bend Cool Bend |
IEC60794-1-2-F2 IEC60794-1-2-E1A IEC60794-1-2-E3 IEC60794-1-2-E4 IEC60794-1-2-E6 IEC60794-1-2-E7 IEC60794-1-2-E10 IEC60794-1-2-E11 IEC60794-1-2-E11 |
|
General Purpose Grade Riser Grade Plenum Grade FRPVC Grade LSZH Grade
LSFROH Grade
FR Grade |
Flammability Test: OFN(UL1581) Flammability Test: OFNR/FT4 (UL1666) Flammability Test: OFNP/FT6(UL 910) Flammability Test: IEC60332-1 Halogen Content Test: IEC 60754-1 Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2 Halogen Content Test: IEC 60754-1 Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2 Flammability Test: IEC60332-1 & IEC 60332-3C/A Fire Resistance Test: IEC 60331 / BS 6387 CWZ |
GR409-CORE TIA/EIA 568B.3 ICEA-S-83-596
