    Augmented Category 6 Cables (CAT6A)

    Applications

    10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T

    Standards

    • ISO / IEC 11801
    • EN50173
    • TIA / EIA 568-B

    Product Construction Matrix

      U/UTP F/UTP U/FTP SF/UTP S/FTP
    Conductor 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper
    Insulation PE PE PE PE PE
    Screen Nil OverallAluminum Tape Screen IndividualAluminum Tape Screen OverallAluminum Tape Screen & Copper Wire Braid IndividualAluminum Tape Screen & Copper Wire Braid
    Drain Wire Nil 1/0.5 mm 1/0.5 mm Nil Nil
    Jacket PE/PVC/LSF/ LSZH/LFLSFROH PE/PVC/LSF/ LSZH PE/PVC/LSF/LSZH/LSFROH

    Remark :

    PE- Polyethylene

    PVC- Polyvinyl Chloride

    LSF- Low Smoke & Fume

    LSZH- Low Smoke Zero Halogen

    LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C)

    PVC can be classified as CMX, CM, CMR and CMP.

    Working Frequency

    1 - 500 MHz

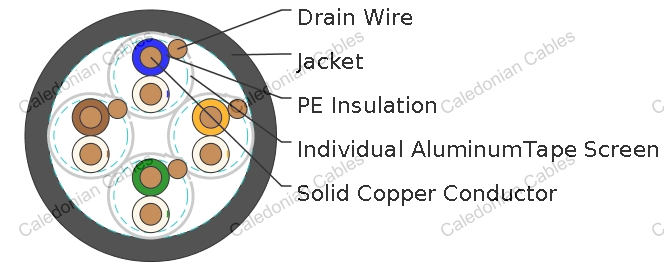

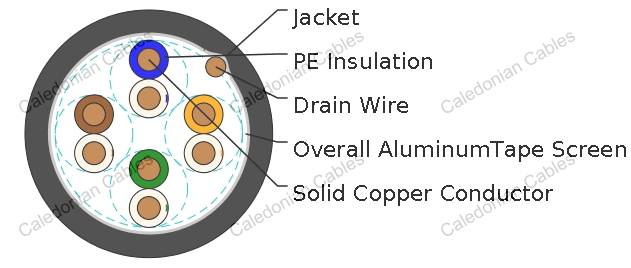

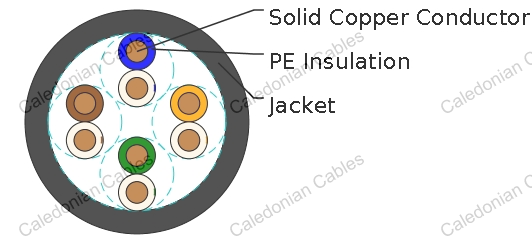

    Cat6A U/UTP Cat6A F/UTP Cat6A U/FTP
    Cat6A U/UTP Cat6A F/UTP Cat6A U/FTP

    Technical Parameters

    Characteristic Impedance 100±15Ω (1-250MHz); 100±22Ω (100-500Mhz)
    Nominal Velocity of Propagation (NVP) CMX, CM, CMR, LSZH 69%; CMP 72%
    Maximum Mutual Capacitance 5.6nF/100m
    Maximum Capacitance Unbalance 330pF/100m
    Maximum DC Resistance 7.5Ω/100m
    Maximum Resistance Unbalance 3%
    Maximum Propagation Delay Skew 30ns/100m (1-125MHz)
    Maximum Propagation Delay 536 ns/100m @ 100MHz
    Minimum Bending Radius 10 x Overall Diameter
    Maximum Pulling Load 80N
    Working Temperature -20℃ ~ +60℃
    Storage Temperature -5℃ ~ +50℃
    Flame Retardancy UL 1581 (CM Jacket)
    UL 1666 (CMR Jacket)
    UL 910 (CMP Jacket)
    IEC 60332-1 (FRPVC & LSZH Jacket)
    IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)

    Product Certification

    E222756

    Product Categories

    Construction Conductor Diameter Diameter Over Insulation Pairs Screen Overall Diameter Jacket
      mm mm     mm
    U/UTP 0.57/0.58 1.02 4 Nil 8.5 PVC/LSZH
    U/UTP 0.57/0.58 1.02 4 Nil 8.9 LSFROH
    U/UTP 0.57/0.58 1.02 4 Nil 8.7 PE
    F/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen 6.3 PVC/LSZH
    F/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen 6.5 PE
    U/FTP 0.57/0.58 1.02 4 Individual Aluminum Tape Screen 7.5 PVC/LSZH
    SF/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen & Copper Wire Braid 6.6 PVC/LSZH
    SF/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen & Copper Wire Braid 7.2 LSFROH
    S/FTP 0.57/0.58 1.02 4 IndividualAluminum Tape Screen & Overall Copper Wire Braid 8.0 PVC/LSZH
    S/FTP 0.57/0.58 1.02 4 IndividualAluminum Tape Screen & Overall Copper Wire Braid 8.4 LSFROH

    Product Highlights

    • Provide excellent NEXT and attenuation performance beyond 500 MHz.
    • Support 10 Gigabit Ethernet application.
    • Meet the strict flame retardancy and environmental requirements in Europe and US.
    • Different jacket materials available for choice.
    • Special purpose cables can be offered according to customer request.
    • Different jacket color options available for choice.

    UTP Cat 6A Transmission Properties

    FREQ (MHz) NEXT (dB/100m) (Minimum/ Typical/ Standard) Value IL (dB/100m) RL (dB/100m) (Minimum/ Typical/ Standard) Value ACR (dB/100m) (Minimum/ Typical/ Standard) Value ELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSNEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSACR (dB/100m) (Minimum/ Typical/ Standard) Value PSELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value
    1 74.3/95.0/74.3 2.0 20.0/28.0/20.0 72.2/94.0/72.2 67.8/92.0/67.8 72.3/92.0/72.3 70.2/90.0/70.2 64.8/85.0/64.8
    4 65.3/88.0/65.3 3.7 23.0/30.0/23.0 61.4/88.0/61.4 55.8/80.0/55.8 63.3/83.0/63.3 59.5/80.0/59.5 52.8/73.0/52.8
    8 60.8/85.0/60.8 5.3 24.5/33.0/24.5 55.4/83.0/55.4 49.7/75.0/49.7 58.8/80.0/58.8 53.5/76.0/53.5 46.7/70.0/46.7
    10 59.3/83.0/59.3 5.9 25.0/36.0/25.0 53.3/78.0/53.3 47.8/72.0/47.8 57.3/77.0/57.3 51.3/72.0/51.3 44.8/65.0/44.8
    16 56.2/80.0/56.2 7.6 25.0/36.0/25.0 48.6/74.0/48.6 43.7/68.0/43.7 54.2/74.0/54.2 46.6/68.0/46.6 40.7/61.0/40.7
    20 54.8/78.0/54.8 8.3 25.0/36.0/25.0 46.3/71.0/46.3 41.8/65.0/41.8 52.8/73.0/52.8 44.3/66.0/44.3 38.8/59.0/38.8
    25 53.3/77.0/53.3 9.5 24.3/35.0/24.3 43.8/69.0/43.8 39.8/63.0/39.8 51.3/71.0/51.3 41.8/63.0/41.8 36.8/57.0/36.8
    31.25 51.9/76.0/51.9 10.4 23.6/34.0/23.6 41.1/67.0/41.1 37.9/62.0/37.9 49.9/70.0/49.9 39.1/60.0/39.1 34.9/55.0/34.9
    62.5 47.4/70.0/47.4 14.9 21.5/33.5/21.5 31.9/57.0/31.9 31.9/56.0/31.9 45.4/65.0/45.4 29.9/51.0/29.9 28.9/49.0/28.9
    100 44.3/68.0/44.3 19.0 20.1/33.0/20.1 24.4/50.0/24.4 27.8/52.0/27.8 42.3/62.0/42.3 22.4/44.0/22.4 24.8/45.0/24.8
    200 39.8/65.0/39.8 27.4 18.0/31.0/18.0 10.6/38.0/10.6 21.8/46.0/21.8 37.8/58.0/37.8 8.6/32.0/8.6 18.8/39.0/18.8
    250 38.3/62.0/38.3 31.0 17.3/30.5/17.3 5.3/33.0/5.3 19.8/44.0/19.8 36.3/56.0/36.3 3.3/27.0/3.3 16.8/37.0/16.8
    300 37.1/61.0/37.1 34.2 16.8/29.0/16.8 0.5/29.0/0.5 18.3/42.0/18.3 35.1/55.0/35.1 -1.5/24.0/-1.5 15.3/35.0/15.3
    350 36.1/60.0/36.1 37.1. 16.3/28.0/16.3 -3.8/26.0/-3.8 16.9/41.0/16.9 34.1/54.0/34.1 -5.8/20.0/-5.8 13.9/34.0/13.9
    400 35.3/59.0/35.3 40.0 15.9/27.0/15.9 -7.9/21.0/-7.9 15.8/40.0/15.8 33.3/53.0/33.3 -9.9/15.0/-9.9 12.8/33.0/12.8
    450 34.5/58.0/34.5 46.3 15.5/26.5/15.5 -10.5/18.0/-10.5 14.7/40.5/14.7 32.5/52.0/32.5 -12.5/11.0/-12.5 11.7/32.5/11.7
    500 33.8/57.0/33.8 45.3 15.2/26.0/15.2 -15.3/15.0/-15.3 13.8/39.0/13.8 31.8/51.0/31.8 -17.3/9.0/-17.3 10.8/32.0/10.8
    625 32.4/53.0/32.4 51.1 14.5/25.0/14.5 -23.1/31.0/-23.1 11.8/36.0/11.8 30.4/50.0/30.4 -25.1/5.0/-25.1 8.8/29.0/8.8

    * Data for 250MHz above are for reference only

    F/UTP & SF/UTP Cat 6A Transmission Properties

    FREQ (MHz) NEXT (dB/100m) (Minimum/ Typical/ Standard) Value IL (dB/100m) RL (dB/100m) (Minimum/ Typical/ Standard) Value ACR (dB/100m) (Minimum/ Typical/ Standard) Value ELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSNEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSACR (dB/100m) (Minimum/ Typical/ Standard) Value PSELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value
    1 74.3/86.0/74.3 2.0 20.0/33.0/20.0 72.2/84.0/72.2 67.8/91.0/67.8 72.3/81.0/72.3 70.2/80.5/70.2 64.8/84.0/64.8
    4 65.3/77.0/65.3 3.7 23.0/35.5/23.0 61.4/73.0/61.4 55.8/79.0/55.8 63.3/72.0/63.3 59.5/70.0/59.5 52.8/72.0/52.8
    8 60.8/75.0/60.8 5.3 24.5/36.0/24.5 55.4/70.0/55.4 49.7/74.0/49.7 58.8/69.0/58.8 53.5/66.0/53.5 46.7/69.0/46.7
    10 59.3/71.0/59.3 5.9 25.0/38.0/25.0 53.3/66.0/53.3 47.8/71.0/47.8 57.3/65.0/57.3 51.3/62.0/51.3 44.8/64.0/44.8
    16 56.2/68.0/56.2 7.6 25.0/35.2/25.0 48.6/61.0/48.6 43.7/67.0/43.7 54.2/62.0/54.2 46.6/58.0/46.6 40.7/60.0/40.7
    20 54.8/67.0/54.8 8.3 25.0/35.0/25.0 46.3/59.0/46.3 41.8/65.0/41.8 52.8/61.0/52.8 44.3/55.0/44.3 38.8/59.0/38.8
    25 53.3/65.0/53.3 9.5 24.3/34.0/24.3 43.8/57.0/43.8 39.8/63.0/39.8 51.3/60.0/51.3 41.8/53.0/41.8 36.8/57.0/36.8
    31.25 51.9/64.0/51.9 10.4 23.6/33.1/23.6 41.1/54.0/41.1 37.9/61.0/37.9 49.9/54.0/49.9 39.1/50.0/39.1 34.9/54.0/34.9
    62.5 47.4/59.0/47.4 14.9 21.5/32.2/21.5 31.9/44.0/31.9 31.9/55.0/31.9 45.4/58.0/45.4 29.9/41.0/29.9 28.9/48.0/28.9
    100 44.3/56.0/44.3 19.0 20.1/31.6/20.1 24.4/38.0/24.4 27.8/51.0/27.8 42.3/50.0/42.3 22.4/34.0/22.4 24.8/44.0/24.8
    200 39.8/52.0/39.8 27.4 18.0/29.8/18.0 10.6/25.0/10.6 21.8/45.0/21.8 37.8/45.0/37.8 8.6/20.5/8.6 18.8/38.0/18.8
    250 38.3/50.0/38.3 31.0 17.3/28.7/17.3 5.3/19.0/5.3 19.8/43.0/19.8 36.3/44.0/36.3 3.3/15.0/3.3 16.8/36.0/16.8
    300 37.1/49.0/37.1 34.2 16.8/28.0/16.8 0.5/14.0/0.5 18.3/38.0/18.3 35.1/43.0/35.1 -1.5/10.0/-1.5 15.3/31.0/15.3
    350 36.1/48.0/36.1 37.1 16.3/27.5/16.3 -3.8/9.0/-3.8 16.9/37.0/16.9 34.1/41.0/34.1 -5.8/7.0/-5.8 13.9/30.0/13.9
    400 35.3/47.0/35.3 40.0 15.9/27.0/15.9 -7.9/7.0/-7.9 15.8/36.0/15.8 33.3/40.0/33.3 -9.9/3.0/-9.9 12.8/29.0/12.8
    450 34.5/47.0/34.5 46.3 15.5/26.5/15.5 -10.5/6.0/-10.5 14.7/35.0/14.7 32.5/39.0/32.5 -12.5/2.0/-12.5 11.7/27.5/11.7
    500 33.8/47.0/33.8 45.3 15.2/26.0/15.2 -15.3/5.0/-15.3 13.8/34.0/13.8 31.8/38.0/31.8 -17.3/0.0/-17.3 10.8/27.0/10.8
    625 32.4/45.0/32.4 51.1 14.5/25.0/14.5 -23.1/1.0/-23.1 11.8/33.0/11.8 30.4/37.0/30.4 -25.1/-3.9/-25.1 8.8/26.0/8.8

    U/FTP & S/FTP Cat 6A Transmission Properties

    FREQ (MHz) NEXT (dB/100m) (Minimum/ Typical/ Standard) Value IL (dB/100m) RL (dB/100m) (Minimum/ Typical/ Standard) Value ACR (dB/100m) (Minimum/ Typical/ Standard) Value ELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSNEXT (dB/100m) (Minimum/ Typical/ Standard) Value PSACR (dB/100m) (Minimum/ Typical/ Standard) Value PSELFEXT (dB/100m) (Minimum/ Typical/ Standard) Value
    1 87.0/90.0/74.3 2.0 20.0/28.0/20.0 85.0/88.0/72.2 73.8/75.0/67.8 85.0/88.0/72.3 83.0/86.0/70.2 70.8/72.0/64.8
    4 80.0/90.0/65.3 3.7 23.0/30.0/23.0 76.0/86.0/61.4 61.8/75.0/55.8 78.0/88.0/63.3 74.0/84.0/59.5 58.0/72.0/52.8
    8 80.0/90.0/60.8 5.3 24.5/33.0/24.5 74.7/84.0/55.4 55.7/75.0/49.7 78.0/88.0/58.8 72.7/82.0/53.5 52.7/72.0/46.7
    10 80.0/90.0/59.3 5.9 25.0/36.0/25.0 74.0/84.0/53.3 53.8/74.0/47.8 78.0/88.0/57.3 72.0/82.0/51.3 50.8/71.0/44.8
    16 80.0/90.0/56.2 7.6 25.0/36.0/25.0 72.4/82.0/48.6 49.7/70.0/43.7 78.0/88.0/54.2 70.4/80.0/46.6 46.7/67.0/40.7
    20 80.0/90.0/54.8 8.3 25.0/36.0/25.0 71.5/81.0/46.3 47.8/68.0/41.8 78.0/88.0/52.8 69.5/79.0/44.3 44.8/65.0/38.8
    25 80.0/90.0/53.3 9.5 24.3/35.0/24.3 70.5/80.0/43.8 45.8/68.0/39.8 78.0/88.0/51.3 68.5/78.0/41.8 42.8/65.0/36.8
    31.25 80.0/90.0/51.9 10.4 23.6/34.0/23.6 69.3/79.0/41.1 43.9/64.0/37.9 78.0/88.0/49.9 67.3/77.0/39.1 40.9/61.0/34.9
    62.5 75.3/90.0/47.4 14.9 21.5/33.5/21.5 59.9/74.0/31.9 37.9/58.0/31.9 69.1/83.0/45.4 57.9/72.0/29.9 34.9/55.0/28.9
    100 71.1/85.0/44.3 19.0 20.1/33.0/20.1 51.3/65.0/24.4 33.8/54.0/27.8 69.1/83.0/42.3 49.3/63.0/22.4 30.8/51.0/24.8
    200 71.1/85.0/39.8 27.4 18.0/31.0/18.0 42.1/56.0/10.6 27.8/51.0/21.8 69.1/83.0/37.8 40.1/54.0/8.6 24.8/48.0/18.8
    250 71.1/85.0/38.3 31.0 17.3/30.5/17.3 38.2/52.0/5.3 25.8/48.0/19.8 61.7/78.0/36.3 36.2/50.0/3.3 22.8/45.0/16.8
    300 63.7/80.0/37.1 34.2 16.8/29.0/16.8 27.3/43.0/0.5 24.3/45.0/18.3 61.7/78.0/35.1 25.3/41.0/-1.5 21.2/42.0/15.3
    350 63.7/80.0/36.1 37.1 16.3/28.0/16.3 23.9/40.0/-3.8 23.9/45.0/16.9 61.7/78.0/34.1 21.9/38.0/-5.8 19.9/42.0/13.9
    400 63.7/80.0/35.3 40.0 15.9/27.0/15.9 20.7/37.0/-7.9 21.8/45.0/15.8 61.7/78.0/33.3 18.7/35.0/-9.9 19.7/42.0/12.8
    450 63.7/80.0/34.5 46.3 15.5/26.5/15.5 17.4/33.0/-10.5 20.5/42.0/14.7 61.7/78.0/32.5 15.4/31.0/-12.5 17.5/39.0/11.7
    500 63.7/80.0/33.8 45.3 15.2/26.0/15.2 14.8/31.0/-15.3 19.8/42.0/13.8 61.7/78.0/31.8 12.8/29.0/-17.3 16.8/39.0/10.8
    625 60.0/70.0/32.4 51.1 14.5/25.0/14.5 5.5/15.5/-23.1 18.8/42.0/11.8 58.0/68.0/30.4 9.9/26.0/-25.1 16.0/39.0/8.8

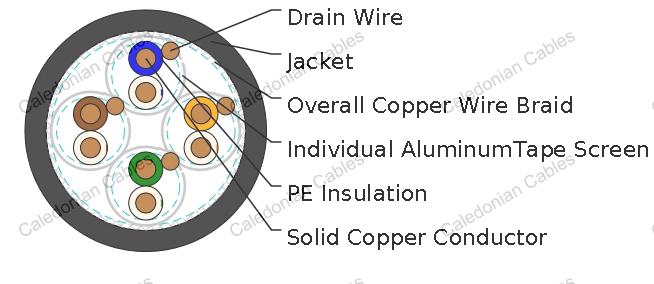

    Cat6A S/FTP Cat6A SF/UTP
    Cat6A S/FTP Cat6A SF/UTP
