    Category 3 Multipair Cables

    Applications

    • 10Base-T
    • 100Base-T4

    Standards

    • ISO/IEC11801
    • ANSI/TIA/EIA-568-B

    Product Construction Matrix

        U/UTP F/UTP

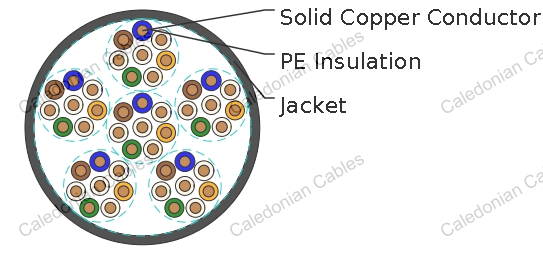

    Conductor Material Solid Plain Copper Solid Plain Copper
      Stranding( No./mm ) 1/0.5 1/0.5
      Gauge 24AWG 24AWG
    Insulation Material PE PE
      Diameter 0.86 mm 0.86 mm

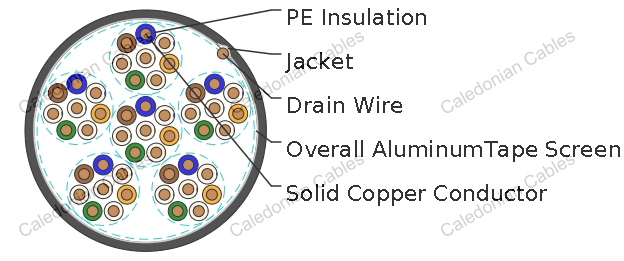

    Screen Material Nil Aluminum /Polyester Tape
    Drain Wire Material Nil 1/0.5 mm
    Assembly No of Pairs 25/50/100 25/50/100
    Jacket Material PE/PVC/LSF/LSZH PE/PVC/LSF/LSZH

    Remark :

    PE - Polyethylene

    PVC - Polyvinyl Chloride

    LSF - Low Smoke & Fume

    LSZH - Low Smoke Zero Halogen

    LSFROH - Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C)

    PVC can be classified as CMX, CM, CMR and CMP

    Working Frequency

    1 - 16 MHz

    Cat3 U/UTP Cat3 F/UTP Cat 3 Multipair
    Cat3 U/UTP Cat3 F/UTP Category 3 Multipair Cables

    Technical Parameters

    Characteristic Impedance 100±15Ω
    Nominal Velocity of Propagation (NVP) 69%
    Maximum DC Resistance 9.38Ω/100m
    Maximum Resistance Unbalance 5%
    Maximum Propagation Delay Skew 30 ns/100m
    Maximum Propagation Delay 536 ns/100m@100 MHz
    Minimum Bending Radius 10 x Overall Diameter
    Voltage Rating 60V rms
    Maximum Pulling Load 80N
    Working Temperature -20℃ ~ +60℃
    Storage Temperature -5℃ ~ +50℃
    Flame Retardancy: UL 1581 (CM Jacket)
    UL 1666 (CMR Jacket)
    UL 910 (CMP Jacket)
    IEC 60332-1 (FRPVC & LSZH Jacket)
    IEC 60332-1 and IEC 60332-3C (LSFROH Jacket)

    Product Certification

    E222756

    Product Categories

    FREQ (MHz) NEXT(dB/100m) Minmum Value/Typical Value/Standard Value IL (dB/100m) SRL(dB/100m)Minmum Value/Typical Value/Standard Value
    1 43.0/48.0/41.0 2.6 13.0/16.0/12.0
    4 34.0/38.0/32.0 5.6 13.0/16.0/12.0
    8 29.0/33.0/26.0 8.5 13.0/16.0/12.0
    10 28.0/33.0/26.0 9.8 13.0/16.0/12.0
    16 25.0/30.0/23.0 13.1 11.0/14.0/10.0

    Product Highlights :

    • Provide excellent bandwidth beyond 600 MHz.
    • Support 10 Gigabit Ethernet application.
    • Meet the strict flame retardancy and environmental requirements in Europe and US.
    • Different jacket materials available for choice.
