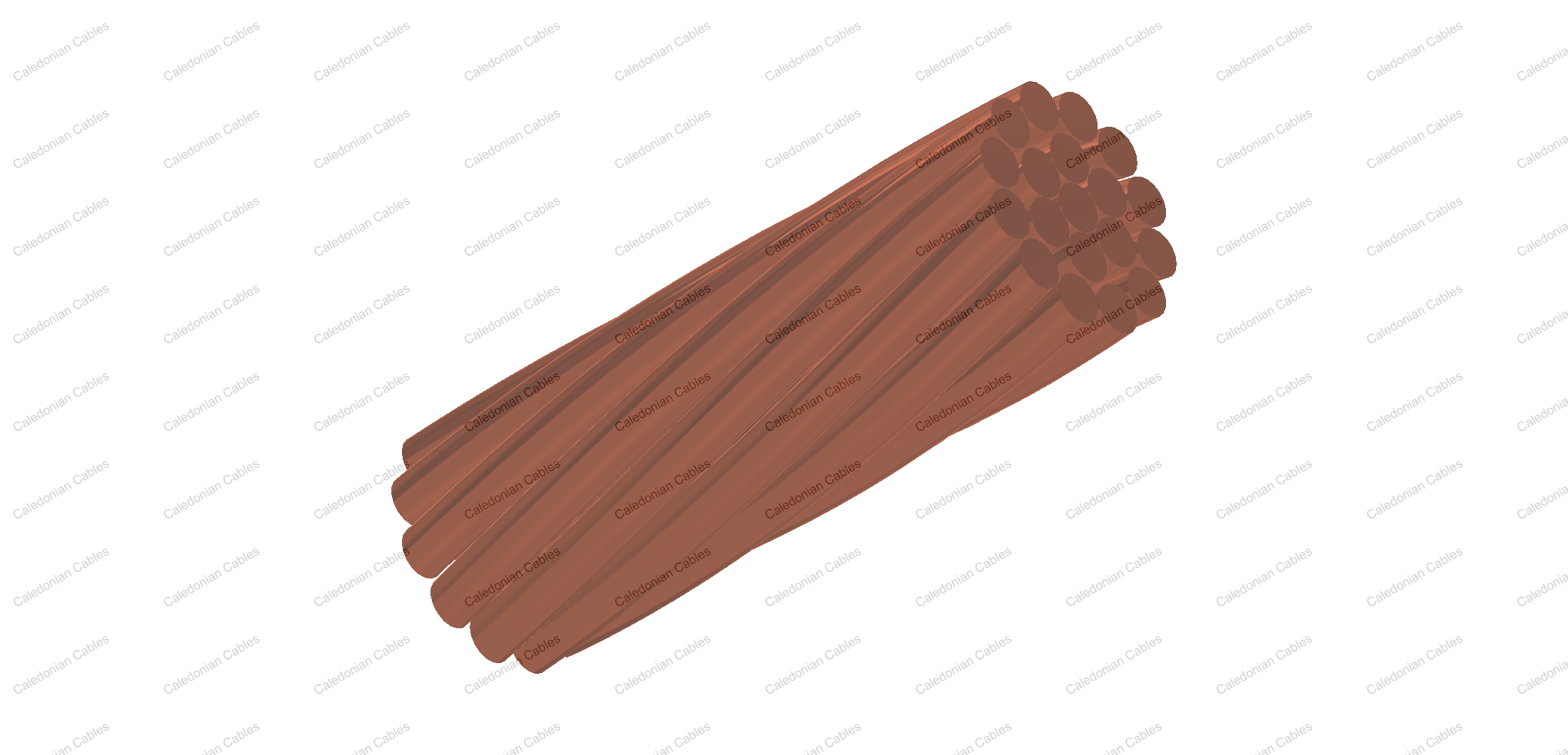

Bare Copper Conductor

APPLICATION

Stranded Class 2 bare copper wire to BS EN 60228 / IEC 60228 cables are non insulated and non sheathed soft drawn copper to BS6360/81. Stranded bare soft or annealed copper conductors are recommended for use as neutrals, in circuit ground connections as well as machinery and equipment grounding systems. Soft copper may be used for transformer drop leads or other non-tension hook-up jumpers.

STANDARD

Basic design to BS 6360 and BS EN 60228 / IEC 60228

FEATURES AND BENEFITES

Stranded bare soft or annealed copper conductors are suitable for direct burial and do not suffer from the inherent corrosion problems that an aluminum conductor would. Copper is almost twice as conductive as aluminum. Copper is easier than aluminum to terminate and join at splices and joints.

CONSTRUCTION

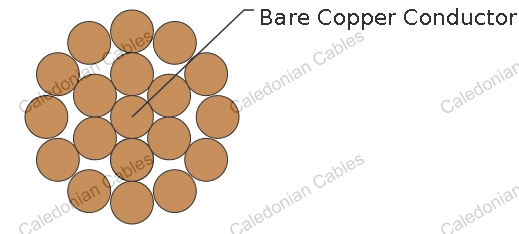

Bare copper conductors are compressed concentric-lay-stranded consisting of one or more layers of wire wrapped helically around a straight round central wire. Each successive layer has six wires more than the layer immediately beneath. Greater flexibility is afforded by using Class 2 stranding. The direction of lay for the outer layer is left hand lay. In 7,19 and 37 wire constructions, the direction of lay of each successive layer is reversed.

TECHNICAL INFORMATION

CONSTRUCTION PARAMETERS
