1xRG6 + 2x16mmsq Power cable + 2x1x2x24AWG Data Pairs SWB LSZH Sheathed Composite Cable

Construction

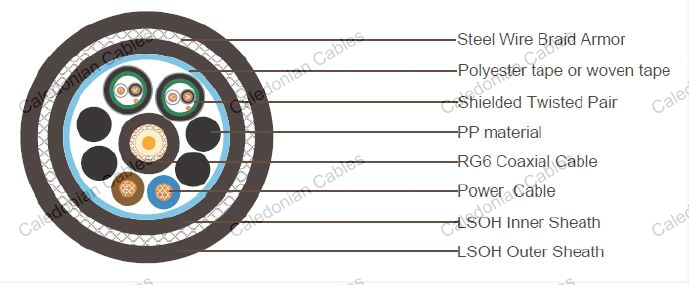

(1)RG6 Coaxial Cable (in the center of the cable core)

Conductor: 1.02mm solid bare copper wire Insulation: PE
Insulation Diameter: 4.57mm
Shield 1: Al-polyester tape
Shield 2: Bare copper wire braid - 95%
Sheath: LSZH
Nominal Overall Diameter: 6.91mm
Sheath Color: Black

(2)2 x (1 x 2 x 24AWG) Shielded Twisted Pair (around coaxial cable)

Conductor: 7/0.2mm stranded tinned copper wire
Insulation: PVC
Thickness of Insulation: 0.4mm
Insulation Color: Black/White
Shield: Al-polyester tape with 24AWG tinned copper drain wire
Sheath: LSZH
Sheath Thickness: 0.76mm
Nominal Overall Diameter: 4.8mm Sheath Color: Black/Grey

 i)2×1×16mm² Power Cable (around coaxial cable)

Conductor: 7/1.7mm stranded tinned copper wire Insulation: XLPE
Insulation Color: Blue/Brown
Insulation Thickness: 0.7mm

2) Element Assembly Filler: PP

Wrapping Tape: Polyester tape or woven tape
Inner Sheath: LSZH
Inner Sheath Color: Black
Armor: Steel Wire Braid - 85%
Outer Sheath: LSZH
Outer Sheath Color: Black
Overall Diameter: 25.0+/-2mm

Electrical Properties @20℃:

 1. Coaxial Cable

Max. Conductor Resistance at 20°C:    22Ohm/km
Impedance:  75±3Ohm
Max. Attenuation:      5.2dB/100m @50MHz
Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance:       ≥200 MOhm x km

Power Cable

Max. Conductor Resistance at 20°C:    1.16Ohm/km
Insulation Resistance:       ≥1000 MOhm x km
