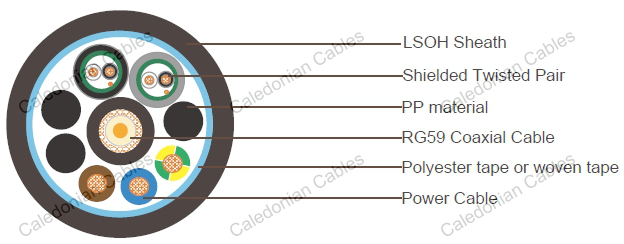

    1x RG59 + 3x1.5 Power Cable + 2x1x2x24AWG Data Pairs Unarmored LSZH Sheathed Composite cable

    Construction

    1x75Ohm RG59 Coaxial Cable( in the center of the cable core)

    Conductor 0.58mm Solid copper conductor
    Insulation Polyethylene. Thickness 1.56mm
    Shield Braid of bare copper wire. Coverage ≥ 95%
    Sheath LSZH sheath. Nominal outer diameter 6.15mm
    Sheath Color Black

    2x1x2x24AWG Shielded Twisted Pair ( around coaxial cable)

    Conductor 7/0.2mm Stranded tinned copper
    Insulation PVC material. Thickness 0.4mm
    Insulation Color Black and white
    Shield Aluminium polyester tape
    Drain Wire 24 AWG stranded tinned copper drain wire
    Sheath LSZH sheath. Nominal outer diameter 4.8mm. Thickness 0.76mm
    Sheath Color Black and Grey

    3x1.5mm² Power Cable ( around coaxial cable)

    Conductor 1.5mm² Stranded tinned copper wire
    Insulation XLPE. Nominal outer diameter 3.0mm
    Insultion Color Blue, Brown and Green/Yellow

    Element Assembly

    Filler PE or PP material
    Wrapping Tape Polyester tape or woven tape
    Outer Sheath LSZH, nominal outer diameter 16.0±1.0mm
    Sheath Color Black

    Electrical and Physical Properties @20°C:

    Coaxial Cable

    Impedance: 75±3Ohm (@1MHz)

    Max. Attenuation: 7.5dB/100m @50MHz

    Power Cable

    Electrical Resistance: 12.1Ohm/km Insulation Resistance: ≥5500 MOhmxkm Data Pairs

    Electrical Resistance: 90Ohm/km

    Insulation Resistance: ≥1000 MOhmxkm

    Element Assembly

    Min Bending Radius: 160mm

    Operating Temperature: -35°C/+80°C

    Fire Performance:

    Low Smoke Capacity:IEC61034-1/2

    Halogen Free:IEC60754-1/2

    Flame Propagation: IEC60332
