    1x RG59 + 3x1.5 Power Cable + 2x1x2x24AWG Data Pairs SWB LSZH Sheathed Composite Cable

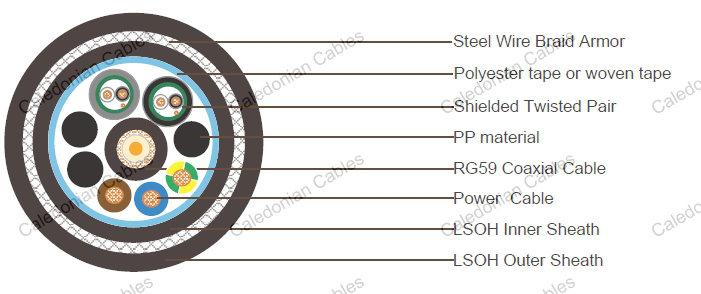

    Construction

    1x75Ohm RG59 Coaxial Cable( in the center of the cable core)

    CONDUCTOR 0.58mm Solidcopperconductor
    INSULATION Polyethylene.Thickness1.56mm
    SHIELD Braid of bare copper wire. Coverage ≥ 95%
    SHEATH LSZH sheath. Nominalouterdiameter6.15mm
    SHEATH COLOR Black

    2x1x2x24AWG Shielded Twisted Pair (around coaxial cable)

    CONDUCTOR 7/0.2mm Strandedtinnedcopper
    INSULATION PVCmaterial.Thickness0.4mm
    INSULATION COLOR Black andwhite
    SHIELD Aluminium polyester tape
    DRAIN WIRE 24AWGstrandedtinnedcopperdrain wire
    SHEATH LSZHsheath.Nominal outer diameter 4.8mm.Thickness0.76mm
    SHEATH COLOR Black and Grey

    3x1.5mm² Power Cable ( around coaxial cable)

    CONDUCTOR 1.5mm² Stranded tinned copper wire
    INSULATION XLPE. Nominal outer diameter 3.0mm
    INSULTION COLOR Blue, Brown and Green/Yellow

    Element Assembly

    FILLER PE or PP material
    WRAPPING TAPE Polyester tape or woven tape
    INNER SHEATH Black LSZH, thickness 0.8mm
    ARMOR Steel wire braid, coverage 85%
    OUTER SHEATH LSZH, thickness 1.5mm, nominal outer diameter 21.5±2.0mm
    SHEATH COLOR Black

    Electrical and Physical Properties @20°C:

    Coaxial Cable

    Impedance: 75±3Ohm (@1MHz)
    Max. Attenuation: 7.5dB/100m @50MHz

    Power Cable

    Electrical Resistance: 12.1Ohm/km Insulation Resistance: ≥5500 MOhmxkm Data Pairs
    Electrical Resistance: 90Ohm/km
    Insulation Resistance: ≥1000 MOhmxkm

    Element Assembly:

    Min Bending Radius: 420mm
    Operating Temperature: -35°C/+80°C

    Fire Performance:

    Low Smoke Capacity:IEC61034-1/2
    Halogen Free:IEC60754-1/2
    Flame Propagation: IEC60332
