    1x RG59 + 3x2.5 Power Cable + 2x1x2x24AWG RS485 SWB PVC Sheathed Composite Cable

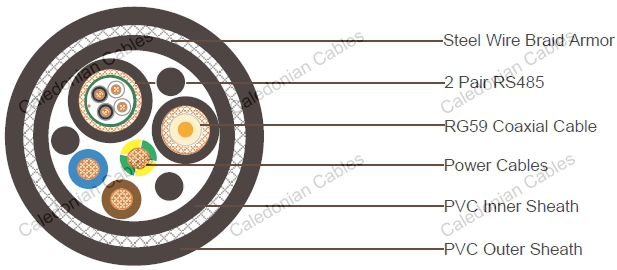

    Construction

    1x75Ohm RG59 Coaxial Cable

    CONDUCTOR 0.58mm Solid copper conductor
    INSULATION Polyethylene. Thickness 1.56mm
    SHIELD Braid of bare copper wire. Coverage ≥ 85%
    SHEATH PVC sheath. Nominal outer diameter 6.2mm
    SHEATH COLOR Black

    2 Pair 24AWG RS485

    CONDUCTOR 7/0.2mm Stranded tinned copper
    INSULATION PE material. Thickness 0.6mm
    SHIELD 1 Aluminium polyester tape with 24 AWG stranded tinned copper drain wire
    SHIELD 2 Tinned copper wire braiding
    SHEATH PVC sheath. Nominal outer diameter is 9.0mm
    SHEATH COLOR Black

    3x2.5mm² Power Cable

    CONDUCTOR 2.5mm² Stranded tinned copper wire
    INSULATION PVC. Thickness 0.7mm
    INSULTION COLOR Blue, Brown and Green/Yellow

    Element Assembly

    INNER SHEATH Black PVC, thickness 0.8mm
    ARMOR Steel wire braid,coverage 95%
    OUTER SHEATH PVC, thickness 1.8mm, nominal outer diameter is 26.0mm
    SHEATH COLOR Black

    Electrical and Physical Properties @20°C:

    Coaxial Cable

    Impedance: 75±3Ohm (@1MHz)
    Nominal Attenuation: 8.2dB/100m @50MHz

    RS485

    Nominal Impedance: 120±10Ω
    Nominal Conductor DC Resistance @20°C: 78.7 Ohm/km
    Nominal Attenuation: 1MHz 2.3dB/100m

    Power Cable

    Electrical Resistance: 7.56Ohm/km
