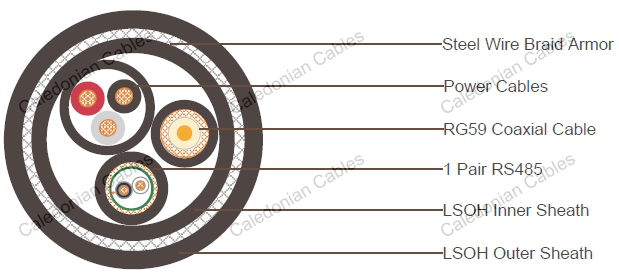

1x RG59+ 3x2.5Power Cable +1x2x24AWG RS485 SWB LSZH Sheathed Composite Cable

1x75Ohm RG59 Coaxial Cable

CONDUCTOR	0.58mm Solid copper conductor
INSULATION	Polyethylene. Thickness 1.56mm
SHIELD	Braid of bare copper wire. Coverage ≥ 85%
SHEATH	PVC sheath. Nominal outer diameter 6.2mm
SHEATH COLOR	Black

1 Pair 24AWG RS485

CONDUCTOR	7/0.2mm Stranded tinned copper
INSULATION	PE material. Thickness 0.6mm
INSULATION COLOR	Black and white
SHIELD 1	Aluminium polyester tape with 24 AWG stranded tinned copper drain wire
SHIELD 2	Tinned copper wire braiding
SHEATH	PVC sheath. Nominal outer diameter is 6.0mm
SHEATH COLOR	Black

3x2.5mm² Power Cable

CONDUCTOR	2.5mm² Stranded tinned copper wire
INSULATION	XLPE. Thickness 0.7mm
SHEATH	LSZH compound. Nominal diameter is 11.0mm

INNER SHEATH	Black LSZH, thickness 1.0mm
ARMOR	Steel wire braid,coverage 85%
OUTER SHEATH	LSZH, thickness 1.8mm, nominal outer diameter is 25.0mm
SHEATH COLOR	Black

Electrical and Physical Properties @20°C:

Impedance: 75±3Ohm (@1MHz)
Nominal Attenuation: 8.2dB/100m @50MHz

Nominal Impedance: 120±10Ω
Nominal Conductor DC Resistance @20°C: 78.7 Ohm/km
Nominal Attenuation: 1MHz 2.3dB/100m

Electrical Resistance: 7.56Ohm/km

Flame Propagation: IEC60332-1
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
