1x75Ohm RG59 Coaxial Cable
| CONDUCTOR | 0.58mm Solid copper conductor |
|---|---|
| INSULATION | Polyethylene. Thickness 1.56mm |
| SHIELD | Braid of bare copper wire. Coverage ≥ 95% |
| FIRE BARRIER | Mica tape |
| SHEATH | FRLSZH sheath. Nominal outer diameter 6.7mm |
| SHEATH COLOR | Black |
2x1x2x24AWG Shielded Twisted Pair (around coaxial cable)
| CONDUCTOR | 7/0.2mm Stranded tinned copper |
|---|---|
| INSULATION | XLPE. Thickness 0.7mm |
| FIRE BARRIER | Mica tape |
| INSULATION COLOR | Black and white |
| SHIELD | Aluminium polyester tape |
| DRAIN WIRE | 24 AWG stranded tinned copper drain wire |
| SHEATH | FRLSZH sheath. Nominal outer diameter 8.5mm. Thickness 0.8mm |
| SHEATH COLOR | Black |
3x2.5mm² Power Cable( around coaxial cable)
| CONDUCTOR | 2.5mm² Stranded tinned copper wire |
|---|---|
| FIRE BARRIER | Mica tape |
| INSULATION | XLPE. Nominal outer diameter 4.2mm |
| INSULTION COLOR | Blue, Brown and Green/Yellow |

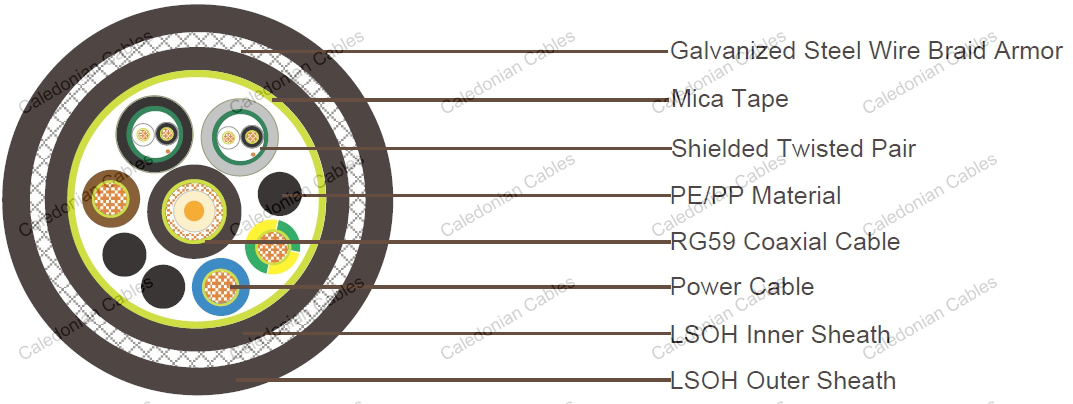

Element Assembly
| INNER SHEATH | PE or PP material |
|---|---|
| FIRE BARRIER | Mica tape |
| INNER SHEATH | Thermoplastic SHF1, black, thickness 1.5mm |
| ARMOR | Galvanized steel wire braid, coverage 95% |
| OUTER SHEATH | SHF1/SHF Mud, thickness 1.5mm, nominal outer diameter 31.0±2.0mm |
| SHEATH COLOR | Black |
Electrical and Physical Properties @20°C:
Impedance: 75±3Ohm (@1MHz)
Max. Attenuation: 7.5dB/100m @50MHz
Electrical Resistance: 12.1Ohm/km
≥5500 MOhmxkm
Electrical Resistance: 90Ohm/km
Insulation Resistance:≥1000 MOhmxkm
Min Bending Radius: 420mm
Operating Temperature:-30°C/+80°C
Fire Performance: Low Smoke
Capacity: IEC61034-1/2
Halogen Free: IEC60754-1/2
Flame Propagation:IEC60332
Fire Resistant:IEC60331Mud
Resistant:NEK606
