1xRG59+3x1.5 Power Cable+2x1x2x24AWG Shielded Control Cable Without Sheath SWB LSZH Sheathed

1x75Ohm RG59 Coaxial Cable

CONDUCTOR	0.58mm Solid copper conductor
INSULATION	Polyethylene. Thickness 1.56mm
SHIELD	Braid of bare copper wire. Coverage ≥ 95%
SHEATH	LSZH sheath. Nominal outer diameter 6.15mm
SHEATH COLOR	Black

2x1x2x24 AWG Shielded Control Cable Without Sheath

CONDUCTOR	7/0.2mm Stranded tinned copper
INSULATION	PVC material. Thickness 0.4mm
INSULATION COLOR	White and black
SHIELD	Aluminium polyester tape with 24 AWG stranded tinned copper drain wire

3x1.5mm² Power Cable

CONDUCTOR	1.5mm² Stranded tinned copper wire to IEC 60228 Class 2 or BS 6360
INSULATION	XLPE compound to BS6234. Nominal outer diameter 3.0mm
INSULTION COLOR	Blue, Brown and Green/Yellow

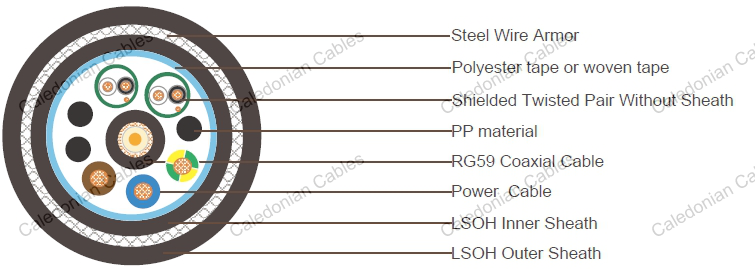

Element Assembly

FILLER	PP, PVC or PE
WRAPPING TAPE	Polyester tape
INNER SHEATH	Black LSZH, thickness 0.76mm
ARMOR	0.2mm steel wire interwoven braid,coverage 95%
OUTER SHEATH	LSZH, thickness 1.4mm, nominal outer diameter is 19.0mm
SHEATH COLOR	Black

Min Bending Radius: 360mm
Operating Temperature: -35°C/+90°C

Flame Retardant: IEC60332 part 1 & 2
Halogen Free: IEC 60754
Low Smoke Emission: IEC 61034
