    1xRG59+3x1.5 Power Cable+6x1x2x24AWG Shielded Control Cable SWB LSZH Sheathed Composite Cable

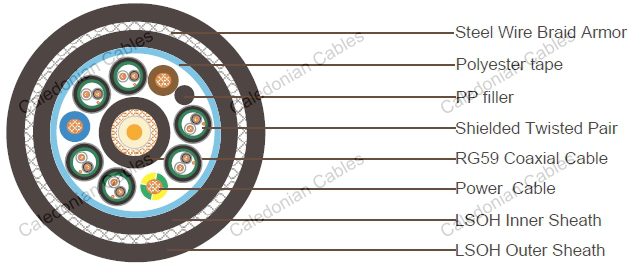

    Construction

    1x75Ohm RG59 Coaxial Cable

    CONDUCTOR 0.58mm Solid copper conductor
    INSULATION Polyethylene. Thickness 1.56mm
    SHIELD Braid of bare copper wire. Coverage ≥ 95%
    SHEATH LSZH sheath. Nominal outer diameter 6.15mm
    SHEATH COLOR Black

    6x1x2x24 AWG Shielded Control Cable

    CONDUCTOR 7/0.2mm Stranded tinned copper
    INSULATION PVC material. Thickness 0.4mm
    INSULATION COLOR White and black
    SHIELD Aluminium polyester tape with 24 AWG stranded tinned copper drain wire
    SHEATH LSZH sheath. Nominal outer diameter 4.8mm. Thickness: 0.76mm
    SHEATH COLOR Black and Grey

    3x1.5mm² Power Cable

    CONDUCTOR 1.5mm² Stranded tinned copper wire to IEC 60228 Class 2 or BS 6360
    INSULATION XLPE compound to BS6234. Nominal outer diameter 3.0mm
    INSULTION COLOR Blue, Brown and Green/Yellow

    Element Assembly

    FILLER PP, PVC or PE
    WRAPPING TAPE Polyester tape
    INNER SHEATH Black LSZH, thickness 0.76mm
    ARMOR 0.2mm steel wire interwoven braid,coverage 95%
    OUTER SHEATH LSZH, thickness 1.4mm, nominal outer diameter is 24.5mm
    SHEATH COLOR Black

    Physical Characteristic:

    Min Bending Radius: 360mm
    Operating Temperature: -35°C/+90°C

    Fire Performance:

    Flame Retardant: IEC60332 part 1 & 2
    Halogen Free: IEC 60754
    Low Smoke Emission: IEC 61034
