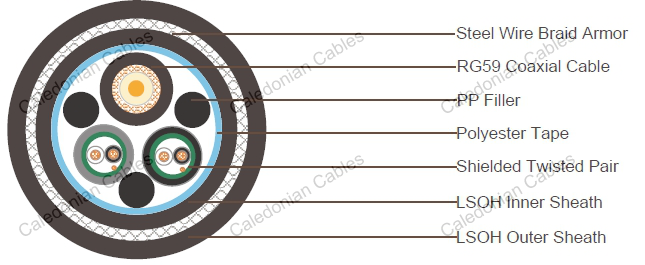

1x RG59 +2x1x2x22AWG Data Cable SWB LSZH Sheathed Composite Cable

1x75Ohm RG59 Coaxial Cable

CONDUCTOR	0.58mm Solid copper conductor
INSULATION	Polyethylene. Thickness 1.56mm
SHIELD	Braid of bare copper wire. Coverage ≥ 85%
SHEATH	LSZH sheath. Nominal outer diameter 6.2mm
SHEATH COLOR	Black

2 Pair 22AWG Data Cable

CONDUCTOR	7/0.254mm Stranded tinned copper
INSULATION	PVC material. Thickness 0.4mm
INSULATION COLOR	Black and white
SHIELD	Aluminium polyester tape
DRAIN WIRE	7/0.2mm stranded tinned copper drain wire
SHEATH	LSZH sheath. Nominal outer diameter 4.8mm.
SHEATH COLOR	Black

FILLER	PP material (around coaxial cable)
WRAPPING TAPE	Polyester tape
INNER SHEATH	Black LSZH, thickness 0.8mm
ARMOR	Steel wire braid,coverage 95%
OUTER SHEATH	LSZH, thickness 1.5mm, nominal outer diameter is 18.5mm
SHEATH COLOR	Black

Electrical and Physical Properties @20°C:

Impedance: 75±3Ohm (@1MHz)
Nominal Attenuation: 8.2dB/100m @50MHz

Nominal Conductor Resistance @20°C: 48.4 Ohm/km

Flame Propagation: IEC60332
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
