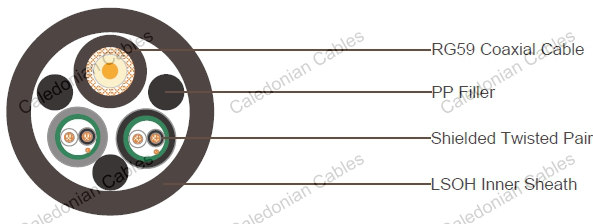

1x RG59 +2x1x2x22AWG Data Cable Unarmored LSZH Sheathed Composite Cable

1x75Ohm RG59 Coaxial Cable

CONDUCTOR	0.58mm Solid copper conductor
INSULATION	Polyethylene. Thickness 1.56mm
SHIELD	Braid of bare copper wire. Coverage ≥ 85%
SHEATH	LSZH sheath. Nominal outer diameter 6.2mm
SHEATH COLOR	Black

2 Pair 22AWG Data Cable

CONDUCTOR	7/0.254mm Stranded tinned copper
INSULATION	PE material. Thickness 0.4mm
INSULATION COLOR	Black and white
SHIELD	Aluminium polyester tape
DRAIN WIRE	7/0.2mm stranded tinned copper drain wire
SHEATH	LSZH sheath. Nominal outer diameter 4.8mm.
SHEATH COLOR	Black

OUTER SHEATH	LSZH, thickness 1.6- 1.8mm, nominal outer diameter is 15.6mm
SHEATH COLOR	Black

Electrical and Physical Properties @20°C:

Impedance: 75±3Ohm (@1MHz)
Nominal Attenuation: 8.2dB/100m @50MHz

Nominal Conductor Resistance @20°C: 48.4 Ohm/km

Flame Propagation: IEC60332
Low Smoke Capacity:IEC61034-1/2
Halogen Free: IEC60754-1/2
