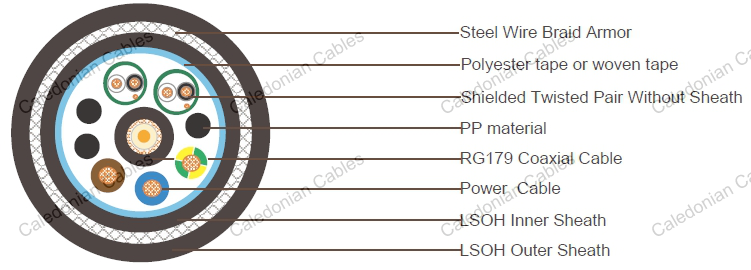

1x75Ohm RG179 Coaxial Cable
| CONDUCTOR | 7/0.1mm Sliver plated copper conductor |
|---|---|
| INSULATION | Solid PTFE. Diameter: 1.6mm |
| SHIELD | Braid of silver plated copper wire. Coverage ≥ 95% |
| SHEATH | FEP sheath. Nominal outer diameter 2.5mm |
| SHEATH COLOR | Black |
2x1x2x24AWG Shielded Twisted Pair
| CONDUCTOR | 7/0.2mm Stranded tinned copper |
|---|---|
| INSULATION | PVC material. Thickness 0.4mm |
| INSULATION COLOR | Black and white with pair number |
| SHIELD | Aluminium polyester tape with 24 AWG stranded tinned copper drain wire. Nominal outer diameter 3.5mm |
3x1.5mm² Power Cable
| CONDUCTOR | 1.5mm² Stranded tinned copper wire |
|---|---|
| INSULATION | XLPE. Nominal outer diameter 3.0mm |
| INSULTION COLOR | Blue, Brown and Green/Yellow |
| FILLER | PE or PP material |
|---|---|
| WRAPPING TAPE | Polyester tape or woven tape |
| INNER SHEATH | Black LSZH, thickness 0.8mm. Diameter Over Bedding: 11.2mm±0.8mm |
| ARMOR | Steel wire braid,coverage 85% |
| OUTER SHEATH | LSZH, thickness 1.5mm, nominal outer diameter is15.8±2.0mm |
| SHEATH COLOR | Black |
Electrical and Physical Properties @20°C:
Impedance: 75±5Ohm (@1MHz)
Nominal capacitance: 63pF/m
Electrical Resistance: 12.1Ohm/km
Insulation Resistance: ≥5500 MOhmxkm
Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm
Min Bending Radius: 420mm
Operating Temperature: -35°C/+80°C
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
Flame Propagation: IEC60332
