    1x RG11 + 3x2.5 Power Cable + 4x1x2x24AWG Data Pairs SWA LSZH Sheathed Composite Cable

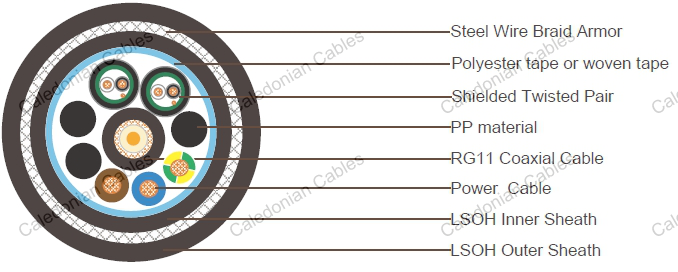

    Construction

    1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)

    CONDUCTOR 1.63mm Solid bare copper
    INSULATION Polyethylene. Diameter 7.25mm.
    SHIELD Braid of bare copper wire. Coverage 95%
    SHEATH LSZH sheath. Nominal outer diameter is 10.3mm.
    SHEATH COLOR Black

    4x1x2x24AWG Shielded Twisted Pair data cable ( around coaxial cable)

    CONDUCTOR 7/0.2mm Stranded tinned copper.
    INSULATION PVC material. Thickness 0.5mm.
    INSULATION COLOR White and black
    INDIVIDUAL SHIELD Aluminum polyester tape
    DRAIN WIRE 24 AWG stranded tinned copper
    SHEATH LSZH sheath. Thickness 0.80mm.
    SHEATH COLOR Black with white number code

    3x2.5mm² Power Cable ( around coaxial cable)

    CONDUCTOR 2.5mm² Stranded tinned copper wire.
    INSULATION XLPE. Outer diameter 3.41mm
    INSULATION COLOR Blue, Brown and Green/Yellow

    Element Assembly

    FILLER PP material (around coaxial cable)
    WRAPPING TAPE Polyester tape or woven tape
    INNER SHEATH Black LSZH, thickness 1.1mm
    ARMOR Steel wire armor,dia. 1.25mm
    OUTER SHEATH LSZH, thickness 1.8mm, nominal outer diameter 26.0±1.0mm
    SHEATH COLOR Black
    CABLE WEIGHT 1100kg/km

    Electrical and Physical Properties@20°C:

    Coaxial Cable

    Impedance: 75±3Ohm (@1MHz)
    Max. Attenuation: 3.3dB/100m @50MHz

    Power Cable

    Electrical Resistance: 7.41Ohm/km
    Insulation Resistance: ≥5500 MOhmxkm Data Pairs
    Electrical Resistance: 90Ohm/km
    Insulation Resistance: ≥1000 MOhmxkm

    Element Assembly

    Conductor DC resistance per km@20°C:
    24AWG: 95.8ohm/km 2.5mm²: 7.4ohm/km 1.63mm: 9.26ohm/km
    Minimum Bending Radius: 312mm
    Temperature Range: -10°C~70°C

    Fire Performance:

    Flame Propagation: IEC60332-1
    Low Smoke Capacity:IEC61034-1/2
    Halogen Free:IEC60754-1/2
