1x RG11 + 3x2.5 Power Cable + 3x1x2x22AWG Data Pairs Unarmoured PVC Sheathed Composite Cable

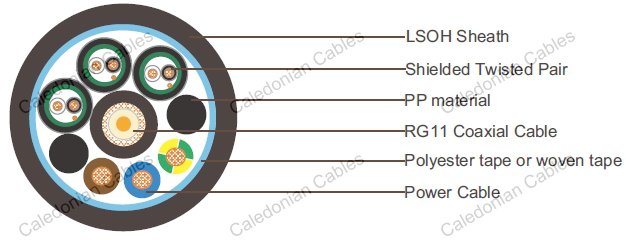

Construction

1x75Ohm RG11 Coaxial Cable ( in the center of the cable core)

CONDUCTOR 1.63mm Solid bare copper
INSULATION Polyethylene.Thickness 7.25mm.
SHIELD Braidofbare copperwire.Coverage95%
SHEATH LSZH sheath. Nominalouterdiameteris10.3mm.
SHEATH COLOR Black

3x1x2x22AWG Shielded Twisted Pair ( around coaxial cable)

CONDUCTOR 7/0.254mm Strandedtinnedcopper.
INSULATION PVCmaterial.Thickness 0.50mm.
INSULATION COLOR White andblack
INDIVIDUAL SHIELD Aluminum polyester tape
DRAIN WIRE 24AWGstrandedtinnedcopper
SHEATH PVCsheath.Nominal outer diameter 4.8mm.Thickness0.76mm.
SHEATH COLOR Black withwhitenumber code

3x2.5mm² Power Cable ( around coaxial cable)

CONDUCTOR 2.5mm² Strandedtinnedcopper wire.
INSULATION XLPE.Outerdiameter3.41mm
INSULATION COLOR Blue,Brown and Green/Yellow

Element Assembly

FILLER PPmaterial(aroundcoaxialcable)
WRAPPINGTAPE Polyestertape orwoven tape
OUTER SHEATH PVC,thickness1.6mm,nominalouterdiameter25.0mm
SHEATH COLOR Black
CABLE WEIGHT 480kg/km

Electrical and Physical Properties@20°C:

Coaxial Cable

Impedance : 75±3Ohm (@1MHz)

Max.Attenuation : 3.3dB/100m @50MHz

Power Cable

Electrical Resistance : 7.41Ohm/km

Insulation Resistance : ≥5500 MOhmxkm

Data Pairs

Electrical Resistance : 49Ohm/km

Insulation Resistance : ≥1000 MOhmxkm
