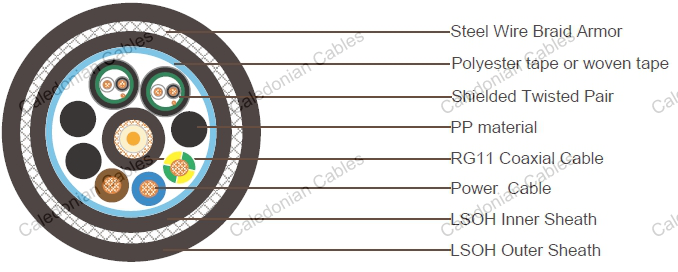

1xRG11 + 3x3 Power Cable + 2x1x2x24AWG Data Pairs SWA LSZH Sheathed Composite Cable

CONDUCTOR	1.63mm Solid bare copper
INSULATION	Polyethylene.Thickness 7.25mm.
SHIELD	Braidofbare copperwire.Coverage95%
SHEATH	LSZH sheath. Nominalouterdiameteris10.3mm.
SHEATH COLOR	Black

CONDUCTOR	7/0.2mm Strandedtinnedcopper.
INSULATION	PVCmaterial.Thickness 0.47mm.
INSULATION COLOR	White andblack
INDIVIDUAL SHIELD	Aluminum polyester tape
DRAIN WIRE	24AWGstrandedtinnedcopper
SHEATH	LSZHsheath.Nominal outer diameter 4.8mm.Thickness0.76mm.
SHEATH COLOR	BlackandGrey

CONDUCTOR	12AWG(3mm²Strandedtinnedcopper wire.
INSULATION	XLPE.Thickness0.85mm.Outerdiameter3.65mm
INSULATION COLOR	Blue,Brown and Green/Yellow

FILLER	PPmaterial(aroundcoaxialcable)
WRAPPINGTAPE	Polyestertape.
INNER SHEATH	BlackLSZH,thickness0.8mm
ARMOR	Stainlesssteel wirebraid, coverage 85%
OUTER SHEATH	LSZH,thickness1.5mm,nominalouterdiameter26.0mm
SHEATH COLOR	Black

Electrical and Physical Properties@20°C:

Impedance: 75±3Ohm (@1MHz)
Max.Attenuation:3.3dB/100m@50MHz

ElectricalResistance:6.6Ohm/km
Insulation Resistance: ≥5500 MOhmxkm Data Pairs
Electrical Resistance: 90Ohm/km
Insulation Resistance: ≥1000 MOhmxkm

Min Bending Radius:420mm
Operating Temperature:-35°C/+80°C

Flame Propagation:IEC60332-1
Low Smoke Capacity:IEC61034-1/2
Halogen Free:IEC60754-1/2
