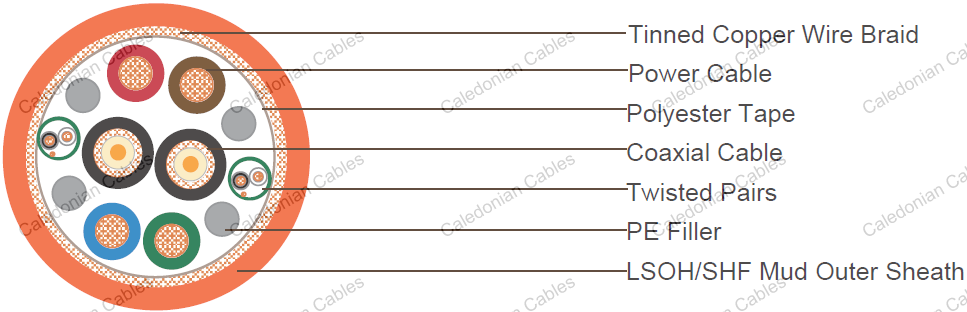

4x2.5 Power Cable + 2 Twisted Pairs + 2 Coax Cable Mud Resistant Composite cable

CONDUCTOR	0.22mmsq, 7/0.20mm stranded bare copper
INSULATION	Celluar PE, thickness 0.92mm. Norminal outer diameter 2.44mm
SHIELD	0.12mm bare copper wire braid, coverage ca. 85%
SHEATH	LSZH, thickness 0.45mm. Norminal outer diameter 3.82mm
SHEATH COLOR	Black

CONDUCTOR	2.5mmsq, 7/0.67mm stranded bare copper
INSULATION	LSZH, thickness 0.65mm. Norminal outer diameter 3.31mm
INSULATION COLOR	Red, blue, green, yellow

CONDUCTOR	0.22mmsq, 7/0.20mm stranded bare copper
INSULATION	LSZH, thickness 0.25mm
INSULATION COLOR	White/ blue; White/orange
SHIELD	Aluminum-polyester tape with 0.2mm2 copper drain wire Nominal outer diameter is 2.56mm.

FILLER	PE filler, if necessary
WRAPPING TAPE	Polyester tape
SHIELD	0.16mm tinned copper wire braid, coverage ca. 80%
OUTER SHEATH	LSOH/SHF mud, thickness 0.8mm. Norminal outer diameter 16.7±1.0mm
SHEATH COLOR	Orange
CABLE WEIGHT	370kg/km

Impedance: 75±5Ohm (@5MHz)
Max. Attenuation: 3.3dB/100m (@5MHz)
Capacity: 55pF/m nominal at 1kHz

Conductor Resistance: 7.41Ohm/km
Insulation Resistance: ≥300 MOhmxkm

Conductor Resistance: 92Ohm/km
Insulation Resistance: ≥300 MOhmxkm

Min Bending Radius: 160mm
Operating Temperature: -40°C/+125°C
