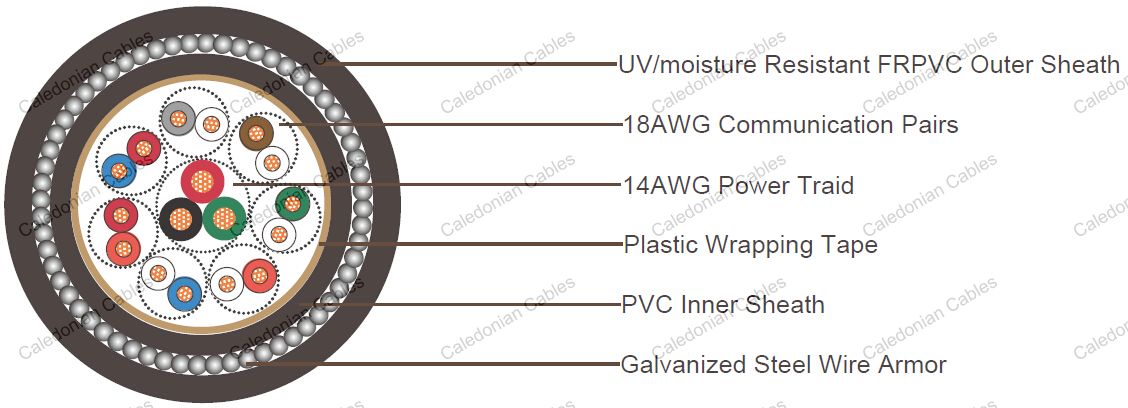

    Flame Retardant SWA 17 Conductors UV/Moisture Resistant PVC Sheahted Composite Cable

    Construction

    18AWG COMMUNICATION PAIRS

    CONDUCTOR 18AWG(16/0.27mm) annealed copper
    INSULATION PVC material. Thickness 0.8mm
    INSULATION COLOR White & Blue, White & Orange, White & Green, White&Brown, White &
    Grey, Red & Blue, Red & Orange

    14AWG POWER CABLE

    CONDUCTOR 14AWG(19/0.38mm) annealed copper
    INSULATION PVC material. Thickness 0.8mm
    INSULATION COLOR Red, black and green

    ELEMENT ASSEMBLY

    CORE MAKE-UP Seven pairs and one triad are wrapped with plastic tape
    BEDDING 1.2mm PVC compound
    ARMOUR 1.6mm Galvanized steel wire
    SHEATH 1.65mm UV/moisture resistant FRPVC, Overall diameter 33.0±1.5mm
    SHEATH COLOR Black.
