Flame Retardant Unarmoured 16 Conductors UV Resistant & Vermin Proof FRPVC Composite Cable

1 Pair Power cable and 1 ground wire

6 Page and party pairs, 1 control wire

CONDUCTOR	0.93mm²(19/0.25mm) annealed copper
INSULATION	PVC material. Thickness 0.5mm
INSULATION PAIR COLOR	Red-Black/Red, Violet-black/violet, Green-black/green, Blue-black/ blue,Yellow-black/yellow, Brown-black/brown
CONTROL WIRE COLOR	Orange

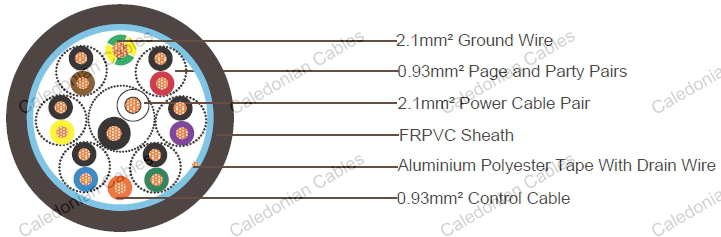

Core make-upSix pairs and control wire laid around power pair and ground wire

COLLECTIVE SCREEN	Aluminium/p.e.t.p. laminated tape applied with the metallic side down in electrical contact with 7 stranded 0.25mm copper drain wire over the p.e.t.p. binder tape
SHEATH	UV Resistant & Vermin Proof FRPVC compound. Thickness 1.8mm, Overall diameter 21.5±1.0mm.
SHEATH COLOR	Black
