    Composite Cables DVI Analog Cable(3 Coax, 1 Pair + 5c)

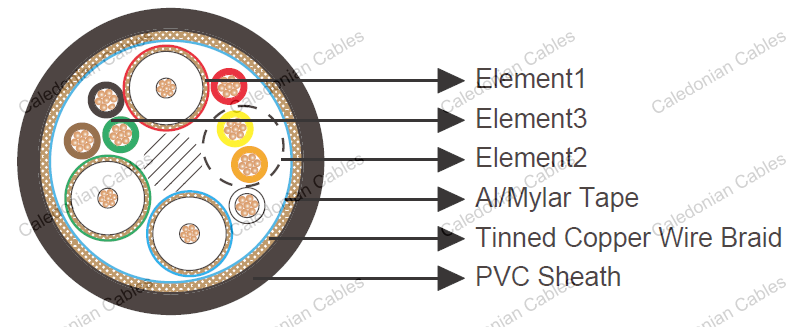

    Construction

    ELEMENT 1: 3 COAXIAL(CU/S.S. CELL/TC BRAID+ PVC)

    Conductor Stranded annealed tinned copper wire, 30AWG(7/38AWG)
    Insulation S.S. cell. Thickness 0.505mm. Outer diameter 1.3+0.07mm
    Shield Tinned copper braid, 0.1mm, 90% coverage
    Sheath PVC, Thickness 0.219mm. Outer diameter 2.15mm
    Sheath Color Green/Blue/Red

    ELEMENT 2: 1PRX28AWG(7/36AWG) STRANDED TC/FOAM PE+SKIN

    Conductor Stranded annealed tinned copper wire, 7/36AWG
    Insulation High density polyethylene. Thickness 0.15mm. Outer diameter 0.7+0.05mm
    Insulation Color Yellow and orange
    Twisting The cores shall twisted together in pair, the lay between each twist shall
    not exceed 100 mm. Outer diameter 1.4mm

    ELEMENT 3: 5CX28AWG(7/36AWG) STRANDED TC/PE

    Conductor Stranded annealed tinned copper wire, 7/36AWG
    Insulation High density polyethylene. Thickness 0.15mm. Outer diameter 0.7+0.03mm
    Insulation Color Red/Purple/White

    ELEMENT ASSEMBLY

    Overall Screen Aluminum/ mylar tape
    Braid Shield Braid of tinned copper wire. Coverage ≥ 85%
    Outer Sheath LSFROH elastomeric sheath,Thickness 0.87mm. Outer diameter 7.3
    +0.2mm, other materail is optional
    Sheath Color Black or as per the client's requirement

    Physical Properties:

    Temperature rating: -25°C to +80°C
    Minimum bending radius: 3 x Overall Diameter

    Electrical Properties:

    Rated voltage: 30V
    Max conductor resistance at 20°C: ≤237 Ohm/Km
    Min insulation resistance: ≥100M Ohm/m
    Spark test: Min. AC 500V/0.15second
    Nom. differential impedance: 100+15 Ohm
    Mutual capacitance: 46pF/m

    Fire Performance in General:

    Vertical flame propagation for a single insulated wire or cable
    EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)
    Vertical flame spread of vertically mounted bunched wires or cables
    EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804
    Low Smoke Emission
    EN 50268-2; IEC 61034-2; NF C 32-073 ;NF C 20-902; NF F 16 101; VDE 0472 Teil 816
    Halogen Free
    EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815
    Low Corrosivity (Acidity & Conductivity)
    EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813
    Low Toxicity
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
    Smoke Index
    NF F 63 808; BS6853; NF F 16 101

    Fire Performance Relating to Rolling Stock Application:

    DIN 5510-2
    BS 6853
    NF F16 101
    NF F 63 808
