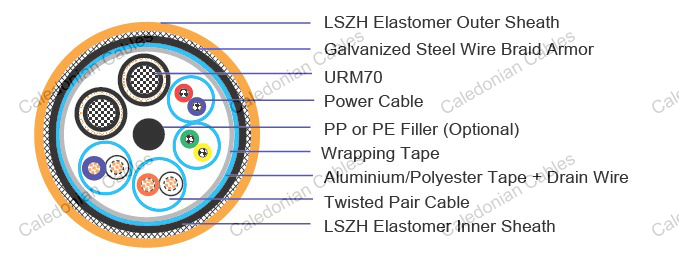

    2XURM70 Coaxial Cable + 2X1P2.5 Power Cable + 2X1PX22AWG Screened Twisted Pair Cable SWB LSZH Sheathed Composite Cable

    Construction:

    2XURM70 75Ohm Coaxial Cable

    CONDUCTOR 7/0.2mm Stranded bare or tinned copper conductor, φ 0.6 mm ± 0.02 mm
    INSULATION Polyethylene. φ 3.25 mm ± 0.15 mm
    SCREEN Copper wire braid, coverage 91 % ± 4 %
    SHEATH Black LSZH. Nominal overall diameter 5.8 mm ± 0.25 mm

    2X1P2.5mm² Power Cable 300V

    CONDUCTOR 2.5mm² Stranded bare or tinned copper conductor
    INSULATION 0.6mm LSZH, Red/Blue & Green/Yellow
    SCREEN Aluminum/polyester tape with 0.5mm² tinned copper drain wire

    2X1P22AWG Screened Twisted Pair Cable (Belden 8723 Equivelant)

    CONDUCTOR 7/0.254mm Stranded bare or tinned copper conductor
    INSULATION 0.23mm PP, White/Blue & White/Orange
    SCREEN Aluminum/polyester tape with 24AWG tinned copper drain wire

    Element Assembly

    FILLER PE or PP material if necessary
    WRAPPING TAPE Polyester tape or woven tape
    SCREEN Aluminum/polyester tape with 0.5mm² tinned copper drain wire
    INNER SHEATH 1.0mm Black LSZH
    ARMOR 0.3mm Galvanized steel wire braid, coverage 85%
    OUTER SHEATH 1.5mm LSZH, nominal overall diameter 25.0 mm ± 2.0 mm
    SHEATH COLOR Orange. Other color available as per requested

    Electrical and Physical Properties @20°C:

    Coaxial Cable

    Max. Conductor Resistance @ 20°C : 92 Ω/km
    Impedance: 75±5Ohm (@1MHz)
    Max. Attenuation: 15.2dB/100m @100MHz

    Power Cable

    Conductor Resistance @ 20°C: 7.41Ohm/km
    Min. Insulation Resistance: 10 MOhmxkm

    Screened Twisted Pair Cable

    Electrical Resistance: 49Ohm/km
    Min. Insulation Resistance: 1000 MOhmxkm
