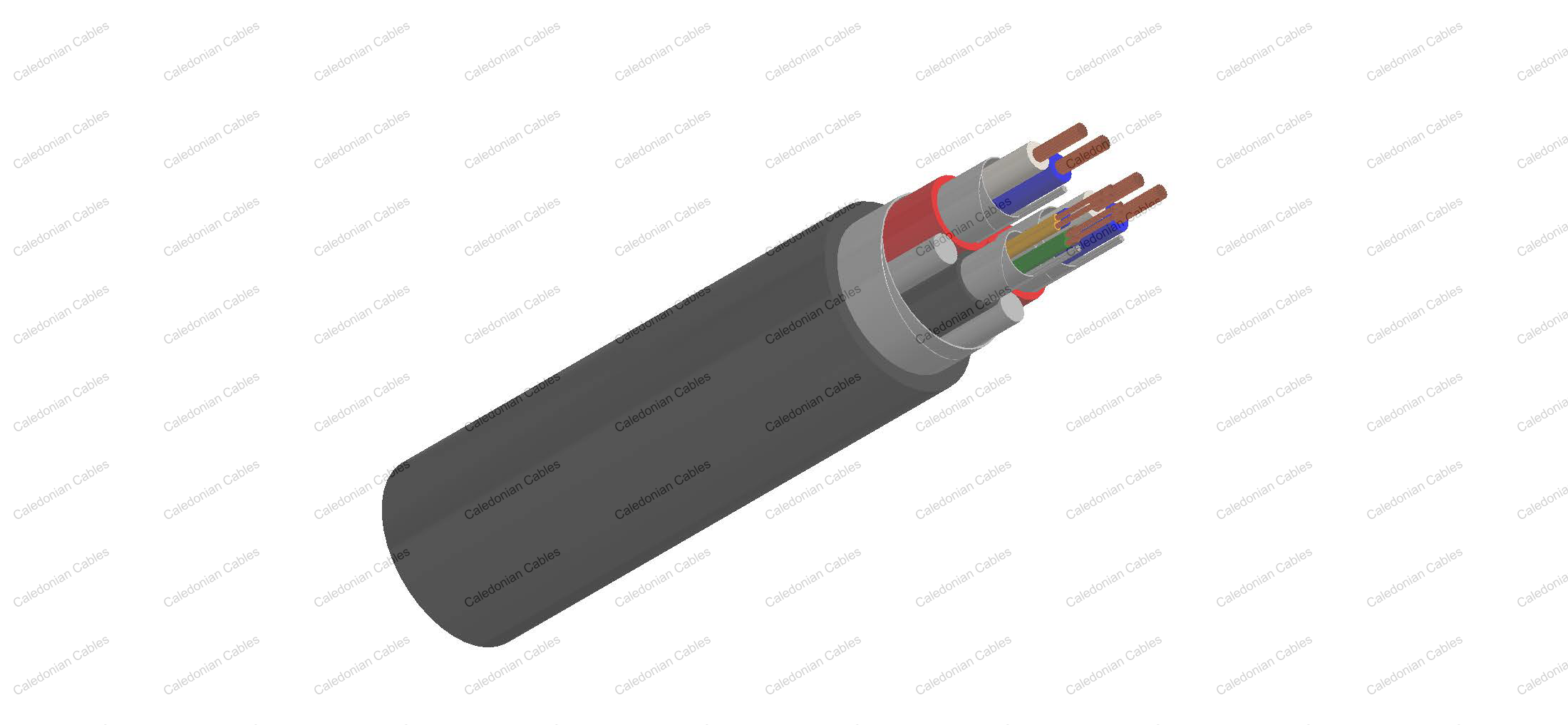

2Cx1.5mm² Audio Cable
- Conductor
- 1.5mm² Stranded copper wire, class 5 to IEC60228.
- Insulation
- Fire resistant silicone rubber compound. Nominal thickness 0.8mm.
- Insulation Color
- White and blue.
- Screen
- Alumminum tape with tinned copper drain wire.
- Sheath
- LSZH sheath. Nominal thickness 1.0 mm.
- Sheath Color
- Red.
- General Standard
- Basic design to EN50288-7.
Cat6 F/UTP
- Conductor
- 24 AWG stranded plain copper.
- Insulation
- PE material. Nominal diameter is 0.97mm.
- Insulation Color
- White-orange,Orange;White-blue,Blue
- White-green,Green;White-brown,Brown.
- Screen
- Alumminum tape with tinned copper drain wire.
- Sheath
- LSZH sheath. Nominal overall diameter is 6.5 mm.
- Sheath Color
- Black or Grey or Blue. Other colors also available upon request.
- Applications
- IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; IEEE 802.5 16 MB; ISDN; TPDDI; ATM.
- Standards
- ISO/IEC 11801, IEC 61156-5,EN 50173,ANSI/TIA 568B.

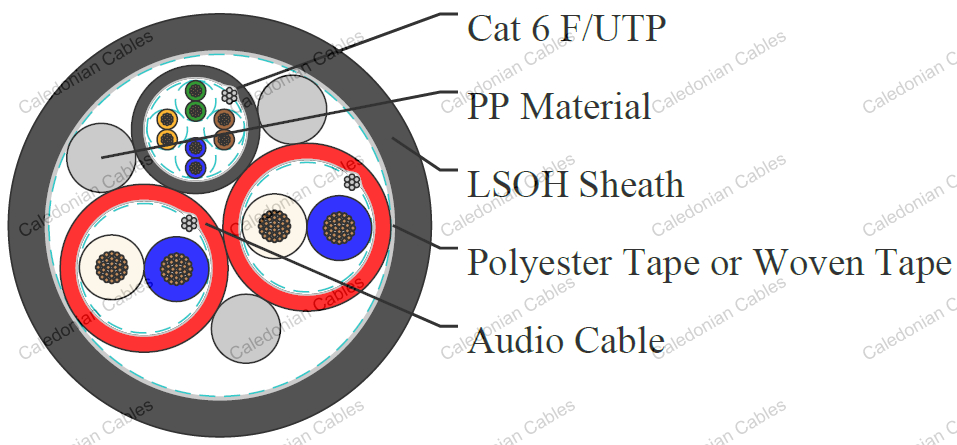

Element assembly
- Filler
- PP material.
- Wrapping Tape
- Polyester tape or woven tape.
- Outer Sheath
- High flexible LSZH. Nominal thickness 1.8mm.
- Sheath Color
- Black. Other colors also available upon request.
Electrical and physical properties@20°C
Audio Cable
- Max.Electrical Resistance
- 12.3Ohm/km
- Min. Insulation Resistance
- 1000 MOhm/km
- Operating Temperature
- -20°C - +90°C
- Voltage rating
- 300/500V
- Insulation spark test
- 7000 V r.m.s./H.F.
- Max. Attenuation
- 0.88 dB/km @800Hz
- Max. Inductance
- 0.75mH/km
Cat6 F/UTP (1-250mhz)
- Max.Electrical Resistance
- 93.8 Ohm/km
- Min.Insulation Resistance
- 2000 MOhm/km
- Operating Temperature
- -20°C - +70°C
- Max.Resistance Unbalance
- 5%
- Max. Mutual Capacitance
- 5.6nF/100m
- Max. Capacitance Unbalance
- 33OpF/100m
- Characteristic Impedance
- 100 ± 15 (1-250MHz)
- Nominal Velocity of Propagation
- 69%
- Max. Propagation Delay
- 536ns/100m@100MHz
- Max.Propagation Delay skew
- 45ns/100m(1-125MHz)
- Test voltage (DC, 1 min) Core/Core
- 1000V
Fire performance
Audio cable
- Fire Resistance
- IEC60331
- Flame Retardance
- IEC60332-1-2
- Fire Propagation
- IEC60332-3-22
- Halogen Free
- IEC60754-1/2
- Low Smoke Capacity
- IEC61034-1/2
- Oxygen Index
- ISO 4589-2
- Temperature Index
- ISO 4589-3
Cat6 F/UTP
- Flame Retardance
- IEC60332-1-2
- Fire Propagation
- IEC60332-3-22
- Halogen Free
- IEC60754-1/2
- Low Smoke Capacity
- IEC61034-1/2
- Oxygen Index
- ISO 4589-2
- Temperature Index
- ISO 4589-3
Element assembly
- Flame Retardance
- IEC60332-1-2
- Fire Propagation
- IEC60332-3-22
- Halogen Free
- IEC60754-1/2
- Low Smoke Capacity
- IEC61034-1/2
- Oxygen Index
- ISO 4589-2
- Temperature Index
- ISO 4589-3
