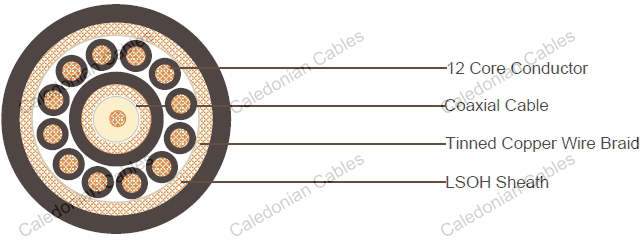

1C Coaxial Cable+12 Core Conductors Tinned Copper Wire Braid PVC Sheathed Composite Cable

1x75Ohm Coaxial Cable

CONDUCTOR	7/0.254mm stranded tinned copper wires
INSULATION	Foamed polyethylene. Thickness is 1.46mm
SHIELD	Braid of bare copper wire. Coverage ≥ 95%
SHEATH	PVC sheath. Nominal outer diameter: 5.28mm
SHEATH COLOR	Black

12 Core Conductor

CONDUCTOR	7/0.32mm Stranded tinned copper. wires
INSULATION	PVC material. Thickness is 0.4mm
INSULTION COLOR	Blue, Brown and Green/Yellow

ShieldTinned copper wire braid, coverage 80%

OUTER SHEATH	LSZH, thickness 0.8mm, nominal outer diameter is 11.05mm
SHEATH COLOR	Black

Electrical and Physical Properties @20°C:

Nom. Impedance: 75Ohm
Nom. Capacitance Conductor to Shield: 56.7pF/m (17.3pF/ft)
Nom. Velocity of Propagation: 78%
Nom. Delay: 4.26ns/m (1.3ns/ft)

om. Conductor DC Resistance: 0.047 Ohm/m (14.4 Ohm/1000ft) Nom. Inner ShieldDC Resistance: 0.0084 Ohm/m (2.55 Ohm/1000ft) Nom. Attenuation:

Max. Operating Voltage: 300V
Max. Operating Voltage (overall): 300V

Operating TemperatureRange: -30°C to +75°C
Min Bending Radius: 127mm
