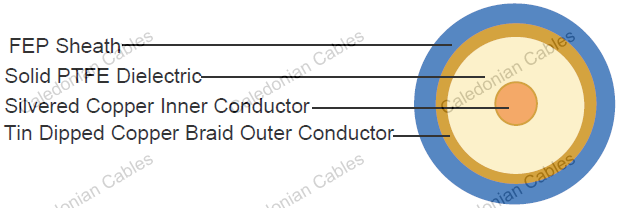

| Inner conductor | Silver plated copper | Φ1.63 mm |
| Dielectric | Solid PTFE | Φ5.30 ± 0.10 mm |
| Outer conductor | Tin Dipped Copper Braid | Φ6.35± 0.10mm |
| Shield coverage | 100% | |
| Sheath | FEP | Φ7.0 mm |
| Impedance | 50±2 Ohm |
| Nominal capacitance | 95.1 pF/m |
| Velocity of propagation | - |
| Insulation resistance | - |
| Inner conductor resistance | - |
| Outer conductor resistance | - |
| Max. operating voltage | 3.5KV |
| Operating temperature range | -55°C - +155 °C |
| Min. bending radius | 30 mm |
| Frequency (GHz) | Max. Attenuation (dB/100m) | Max. Attenuation (dB/100ft) |
|---|---|---|
| 0.5 | 17 | 5 |
| 1 | 25 | 8 |
| 5 | 63 | 19 |
| 10 | 103 | 31 |
| 20 | 154 | 47 |
