    SF141 (Flexible RG 402)

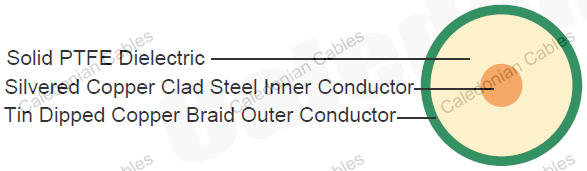

    Construction

    Inner conductor Silver plated copper clad steel Φ0.91 mm
    Dielectric Solid PTFE Φ2.98 ± 0.10 mm
    Outer conductor Tin Dipped Copper Braid Φ3.58± 0.10mm
    Shield coverage   100%

    Electrical & Mechanical Characteristics

    Impedance 50±2 Ohm
    Nominal capacitance 95.1 pF/m
    Velocity of propagation -
    Insulation resistance -
    Inner conductor resistance -
    Outer conductor resistance -
    Max. operating voltage 1.9KV
    Operating temperature range -55°C - +155 °C
    Min. bending radius 8 mm

    Attenuation

    Frequency (GHz) Max. Attenuation (dB/100m) Max. Attenuation (dB/100ft)
    0.5 26 8.0
    1 39 12.0
    5 99 30.0
    10 152 46.0
    20 239 73.0
