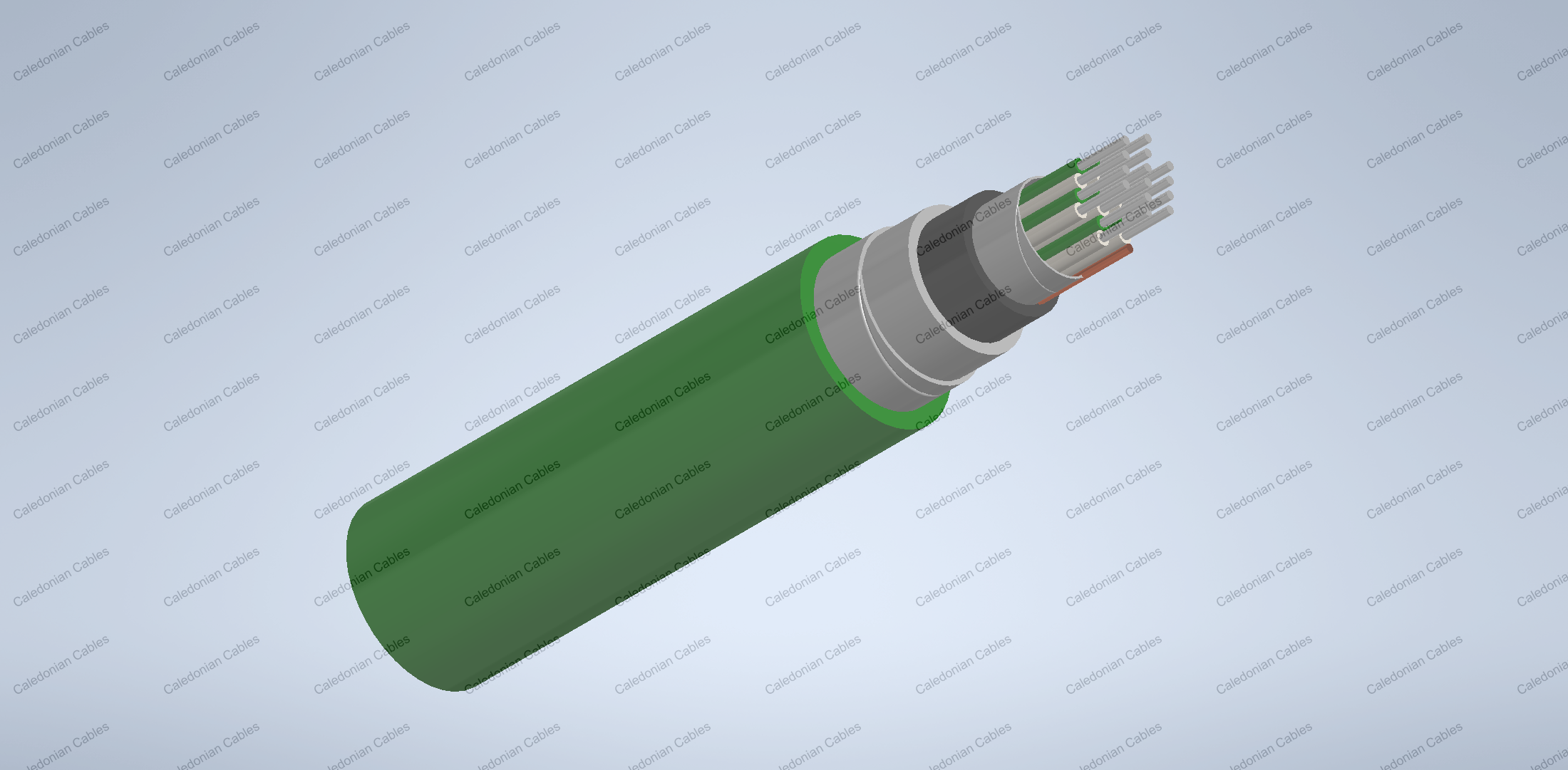

Overall Screened Thermocouple Cable

These cables are used with thermocouples for temperature measurements where hydrocarbon may be present.

IEC 60584-3

NF C 42-324

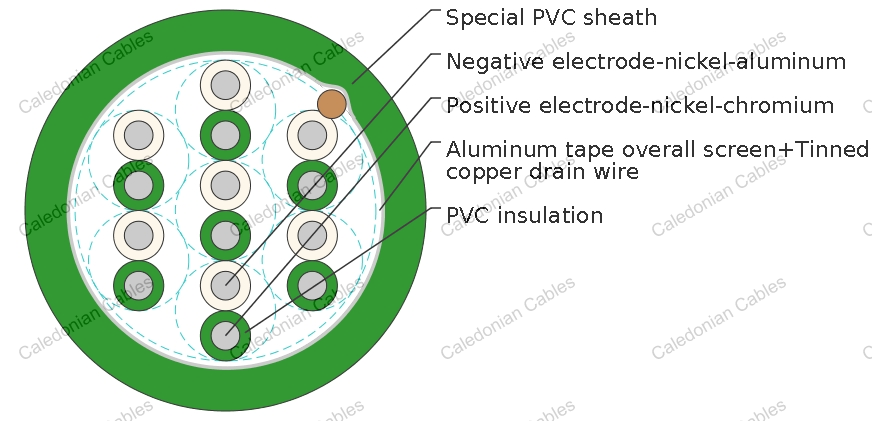

Conductor : Metal according to thermocouple type

Insulation : PVC

Overall screen : Aluminum/polyester tape with tinned copper drain wire

Sheath : Special PVC. Color depends on thermocouple type

Flame retardance : NFC 32070 C2, IEC 60332-1-2

Operating voltage : 250V

Operating temperature : -20~60°C

Max. conductor temperature in service : 70°C

Chemical resistance : Aliphatic and aromatic hydrocarbon resistance

Conductor Size		No. of Pairs	Min. O.D.	Max. O.D.	Approx. Weight
mm²	Solid or Stranding		mm	mm	kg/km
1	14 x 0.30 mm	1	6.3	7.4	70
1.34	1 x 1.30 mm	1	6.3	7.4	75
0.5	1 x 0.8 mm	3	8.0	9.3	95
0.5	1 x 0.8 mm	7	10.5	12.1	165
0.5	1 x 0.8 mm	12	13.3	15.3	255
0.5	1 x 0.8 mm	19	16.5	19.0	380
0.5	1 x 0.8 mm	27	19.2	22.0	510
