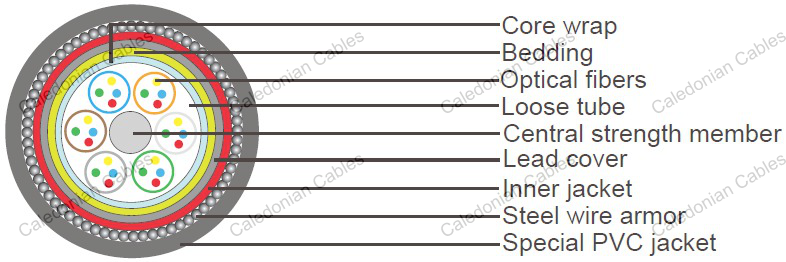

These cables are suitable for underground use in all refi neries. The special design can resists aliphatic and aromatic hydrocarbon and U.V.
IEC 794-1-E1
IEC 794-1-E3
IEC 794-1-E4
IEC 794-1-F1
IEC 60332-3-22 Cat.A
Operating temperature : -20~60°C
Chemical resistance : Aliphatic and aromatic hydrocarbon resistance
| No. of Optical Fiber | Fibers Per Loose Tube | No. of Loose Tubes | Outer Diameter | Approx. Weight |
|---|---|---|---|---|
| mm | kg/km | |||
| 4 | 4 | 1 | 19.2 | 1017 |
| 8 | 4 | 2 | 19.2 | 1018 |
| 12 | 4 | 3 | 19.2 | 1018 |
| 24 | 4 | 6 | 19.2 | 1019 |
