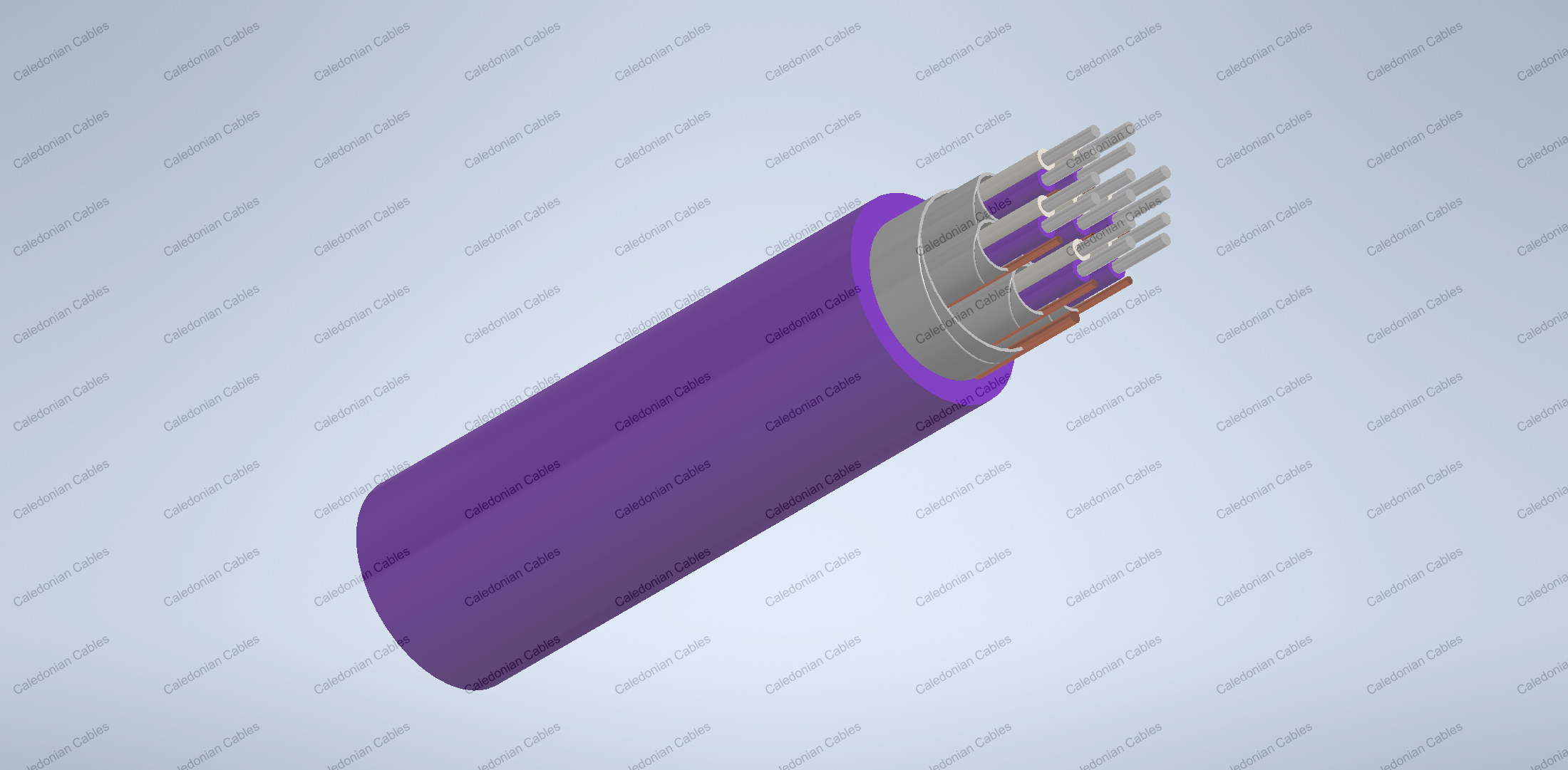

Individual & Overall Screened Thermocouple Cable

These cables are used with thermocouples for temperature measurements where hydrocarbon may be present.

IEC 60584-3

NF C 42-324

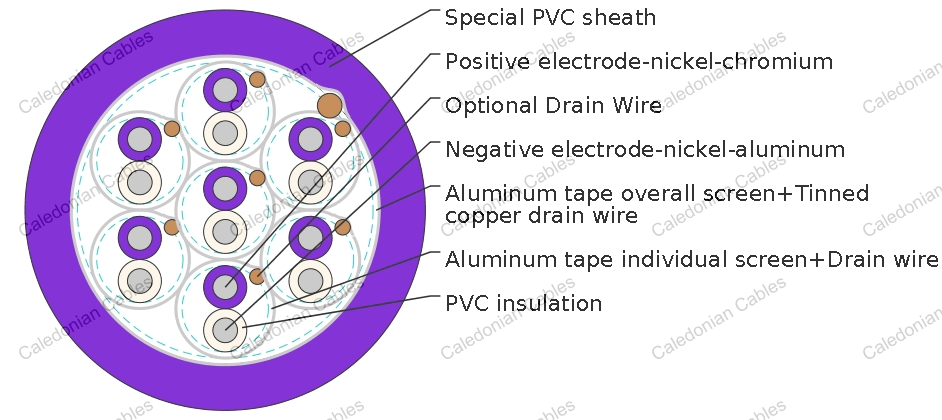

Conductor : Metal according to thermocouple type

Insulation : PVC

Individual screen : Aluminum/polyester tape with tinned copper drain wire

Individual sheath : PVC

Overall screen : Aluminum/polyester tape with tinned copper drain wire

Sheath : Special PVC. Color depends on thermocouple type

Flame retardance : NFC 32070 C2, IEC 60332-1-2

Operating voltage : 250V

Operating temperature : -20~60°C

Max. conductor temperature in service : 70°C

Chemical resistance: Aliphatic and aromatic hydrocarbon resistance

Conductor Size	No. of Pairs	Min. O.D.	Max. O.D.	Approx. Weight
mm²		mm	mm	kg/km
0.5 solid	3	11.1	12.8	180
0.5 solid	7	15.4	17.7	335
0.5 solid	12	19.8	22.8	545
0.5 solid	19	24.6	28.1	825
0.5 solid	27	28.9	33.2	1135
