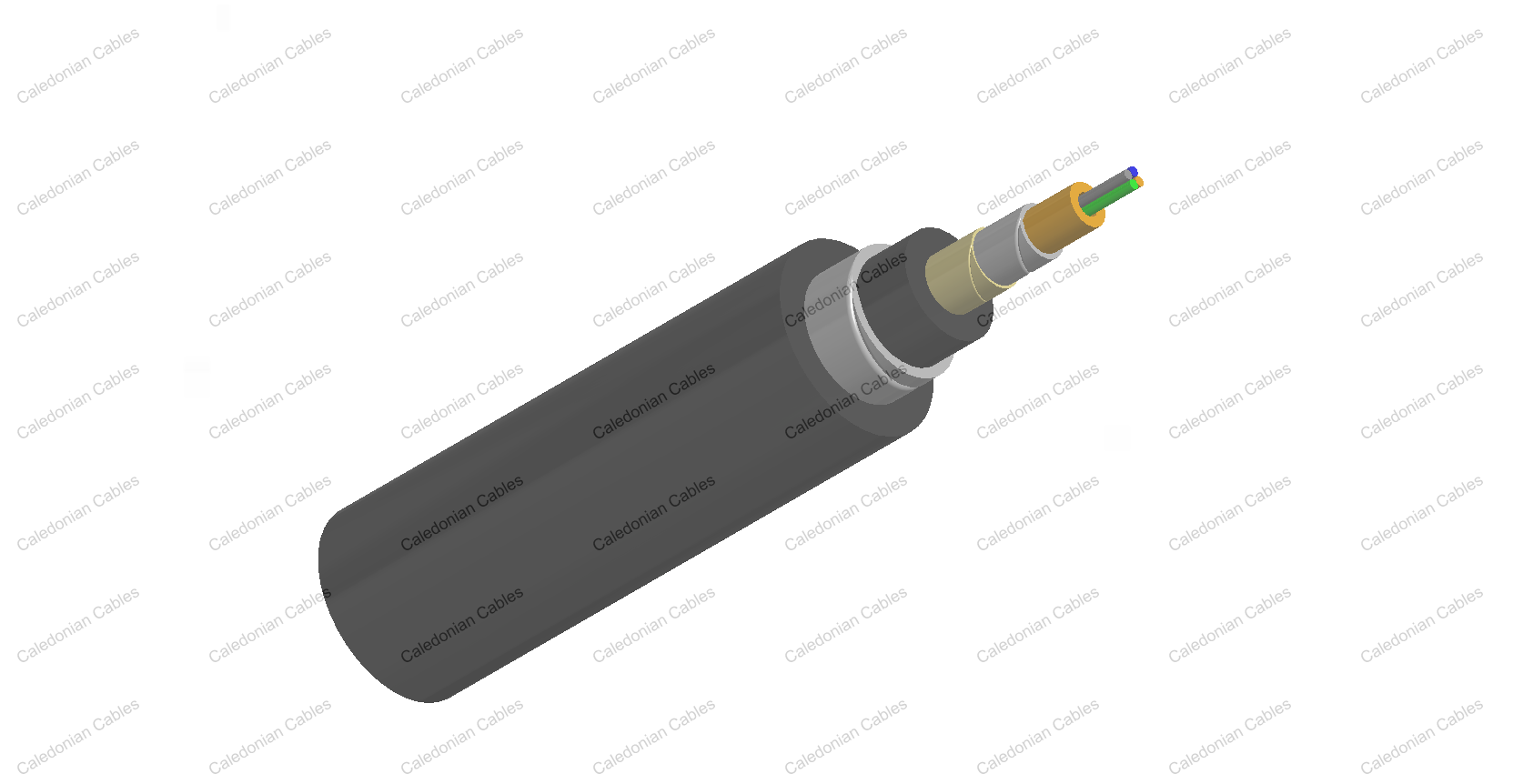

Double Galvanized Steel Tape Armored Optical Fiber Cable(Cables for industry) are suitable for underground use in industries. The special PVC sheath resists aliphatic
and aromatic hydrocarbon and U.V.
IEC 794-1-E1
IEC 794-1-E3
IEC 794-1-E4
IEC 794-1-F1
IEC 60332-3-22 Cat.A
Operating temperature : -20~60°C
Chemical resistance : Aliphatic and aromatic hydrocarbon resistance
| No. Of Optical Fiber | Fiber Optic Type | No. Of Tube | Diameter Over Inner Sheath | Diameter Over Armor | Min. O.D. | Max. O.D. | Approx. Weight |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | kg/km | |||
| 4 | 50/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 4 | 62.5/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 6 | 50/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 6 | 62.5/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 8 | 50/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 8 | 62.5/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 8 | 9/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 12 | 50/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 12 | 62.5/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 12 | 9/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 16 | 62.5/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 24 | 50/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
| 24 | 62.5/125 | 1 | 6.6 | 7.7 | 9.9 | 11.2 | 178 |
