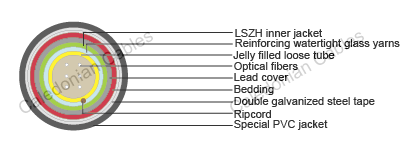

Double Galvanized Steel Tape Armored Optical Fiber Cable with Lead Cover

These cables are suitable for underground use in all refi neries. The special design can resists aliphatic and aromatic hydrocarbon and U.V.

IEC 794-1-E1

IEC 794-1-E3

IEC 794-1-E4

IEC 794-1-F1

IEC 60332-3-22 Cat.A

Operating temperature : -20~60°C

Chemical resistance : Aliphatic and aromatic hydrocarbon resistance

No. of Optical Fiber	Fiber Optic Type	No. of Tube	Diameter over Inner Sheath	Diameter over Lead Sheath	Diameter over Armor	Min. O.D.	Max. O.D.	Approx. Weight
			mm	mm	mm	mm	mm	kg/km
4	50/125	1	6.6	8.4	10.04	12.6	14	448
4	62.5/125	1	6.6	8.4	10.04	12.6	14	448
6	50/125	1	6.6	8.4	10.04	12.6	14	448
6	62.5/125	1	6.6	8.4	10.04	12.6	14	448
8	50/125	1	6.6	8.4	10.04	12.6	14	448
8	62.5/125	1	6.6	8.4	10.04	12.6	14	448
8	9/125	1	6.6	8.4	10.04	12.6	14	448
12	50/125	1	6.6	8.4	10.04	12.6	14	448
12	62.5/125	1	6.6	8.4	10.04	12.6	14	448
12	9/125	1	6.6	8.4	10.04	12.6	14	448
16	62.5/125	1	6.6	8.4	10.04	12.6	14	448
24	50/125	1	6.6	8.4	10.04	12.6	14	448
24	62.5/125	1	6.6	8.4	10.04	12.6	14	448
