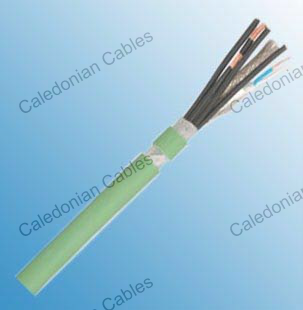

Industrial Ethernet ProfiNet cables are designed to provide reliable network communications in the demanding Industrial and Process Control environment where difficult EMC conditions are pervasive. Conforming to the EIA/TIA-568 standard, These Cables support half-duplex high speed communications.It ensures superior transmission properties and can be used even under most severe conditions.
| Type/Area of Application | Flex Use | Mobile Use |

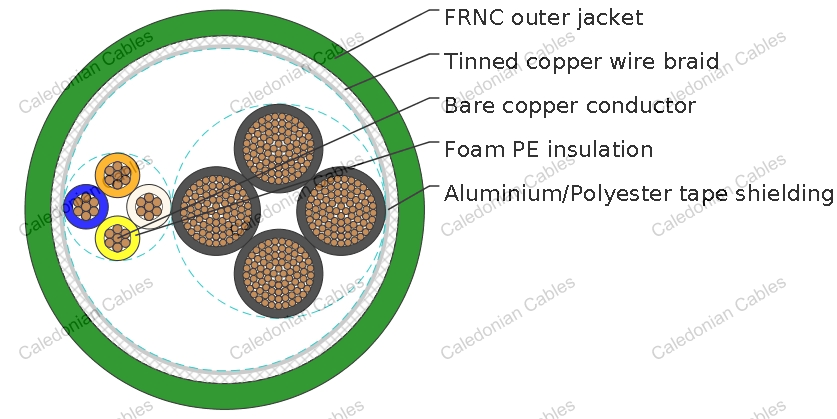

| Cable Construction | 2x2x0.64 mm (stranded) | 2x2x0.64 mm (stranded) + 4x1.5mm² |
| Inner Conductor Diameter 1 | Copper, tinned (AWG 22/7) | Copper, tinned (AWG 22/7) |
| Inner Conductor Diameter 2 | / | Copper, bare (AWG 16/84) |
| Conductor Insulation 1 | Foam-Skin-PE or PE or PP | Foam-Skin-PE or PE or PP |
| Conductor Insulation 2 | / | Foam-Skin-PE or PE or PP |
| Conductor Colors 1 | white, yellow, blue, orange | white, yellow, blue, orange |
| Conductor Colors 2 | / | Black |
| Stranding Element | Double Conductor | Double Conductor |
| Wrapping | Polyester foil over stranded bundle | Polyester foil over stranded bundle |
| Total Shielding | copper braid and plastic-laminated aluminium foil | copper braid and plastic-laminated aluminium foil |
| Outer Jacket Material | PVC or FRNC | PVC or FRNC |
| Outer Diameter | 6.5 mm ± 0.2 mm | 10.3 mm ± 0.3 mm |
| Outer Jacket Color | Green | Green |
| Characteristic Impedance@1-100 MHz | 100 Ω ± 15 Ω | |
| Conductor Resistance | 60.0 Ohm/km max. | |
| Insulation Resistance | 0.50 GOhm x km min. | |
| Mutual Capacitance | 52.0 nF/km nom. | |
| Working Voltage | 300V | |
| Test Voltage | 1.5 KV | |
| Attenuation | 10 MHz | 6.3 dB/100m |
| 16 MHz | 8.0 dB/100m | |
| 62.5 MHz | 16.5 dB/100m | |
| 100 MHz | 21.3 dB/100m | |
| Weight | approximately 153.0 kg/km |
| Min. Bending Radius for Laying | 10 x OD mm |
| Operating Temperature Range, min. | -40 °C |
| Operating Temperature Range, max. | +70 °C |
