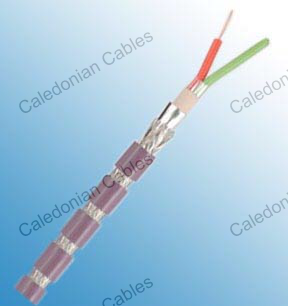

    Profibus SK Indoor + Outdoor

    • Profibus SK Indoor + Outdoor

    Application and Description

    The application of these Profibus SK cables are in the cell and field area, just as for conventional types. The great advantage of this new system is the quick connection of the cable to the respective plugs. This type of processing also avoids errors. The above mentioned types are suitable for indoor- or outdoor installation and are equipped with a special PVC or PE jacket.

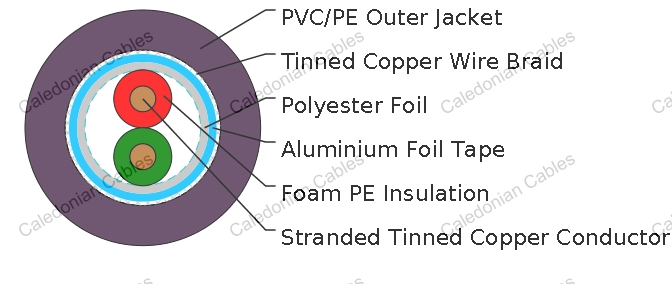

    Construction

    Type/Area of Application Fixed Installation, Indoor /Outdoor
    Cable Construction 1x2x0.64 mm
    Inner Conductor Diameter Copper, bare (AWG 22/1)
    Conductor Insulation Foam-skin-PE
    Conductor Colors red, green
    Stranding Element 2 conductors + filler
    Wrapping Polyester foil over stranded bundle
    Shielding Polyester foil, aluminum-lined
    Total Shielding Copper braid, tinned
    Outer Jacket Material PVC/PE
    Outer Diameter 8.0 mm ± 0.4 mm
    Outer Jacket Color Violet /Black

    Electrical Data

    CharacteristicImpedance@3-20MHz 150 Ω ± 10 Ω
    Conductor Resistance 57.1 Ohm/km max.
    Insulation Resistance 1.00 GOhm x km min.
    Mutual Capacitance@1KHz 35.0 nF/km nom.
    Working Voltage 300V
    Test Voltage 1.5 KV
    Attenuation 9.6 kHz < 2.5 dB/km
      38.4 kHz < 4.0 dB/km
      4.0 MHz < 22.0 dB/km
      16.0 MHz < 42.0 dB/km

    Technical Data

    Weight: approximately 75.0 kg/km approximately 65.0 kg/km
    Min. Bending Radius (Laying) 15 x OD mm 15 x OD mm
    Operating Temp.Range, min. - 40 °C - 40 °C
    Operating Temp.Range, max. +70 °C +70 °C
