    Profibus L2 Outdoor + Industry

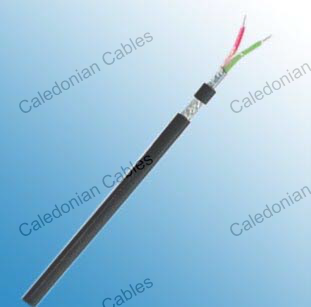

    • Profibus L2 Outdoor + Industry Bus Cable

    Application and Description

    This system cable is used to interconnect L2-BUS components. This cable is an economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The types mentioned here are suitable for outdoor laying (PE jacket) and industry laying (PUR jacket).

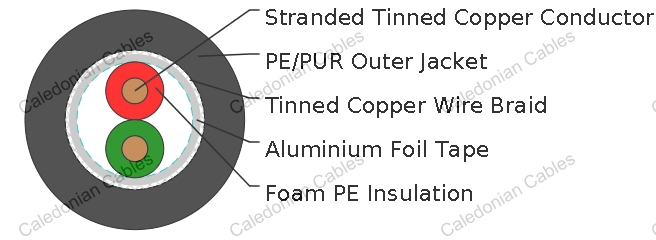

    • Type/Area of Application: Fixed Installation, Outdoor /Heavy Duty
    • Cable Construction: 1x2x0.64 mm
    • Inner Conductor Diameter: Copper, bare (AWG 22/1)
    • Conductor Insulation: Foam-skin-PE
    • Conductor Colors: Red, green
    • Stranding Element: 2 conductors + 2 fillers stranded together
    • Shielding: Polyester foil, aluminum lined
    • Total Shielding: Copper braid, tinned
    • Outer Jacket Material: PE/PUR
    • Outer Diameter: 8.0 mm ± 0.4 mm
    • Outer Jacket Color: Black

    Electrical Data

    Characteristic Impedance@3-20MHz 150 Ω ± 10 Ω
    Conductor Resistance 55.0 Ohm/km max.
    Insulation Resistance 1.00 GOhm x km min.
    Mutual Capacitance@1 KHz 30.0 nF/km nom.
    Working Voltage Max: 250V
    Test Voltage 1.5 KV
    Attenuation 9.6 kHz < 2.5 dB/km
      38.4 kHz < 4.0 dB/km
      4.0 MHz < 22.0 dB/km
      16.0 MHz < 42.0 dB/km

    Technical Data

    Weight approximately 69.0 kg/km
    Min. Bending Radius (Laying) 15 x OD mm
    Operating Temp.Range, min. -40 °C
    Operating Temp.Range, max. +70 °C
