CC-Link(R) (Control & Communication Link) is a field network system that processes both control and information data at high speed, to provide efficient, integrated factory and process automation. CC-Link is particularly popular in Asia and is used worldwide for time critical applications . CC-Link is certified by CLPA and ensures product compatibility.

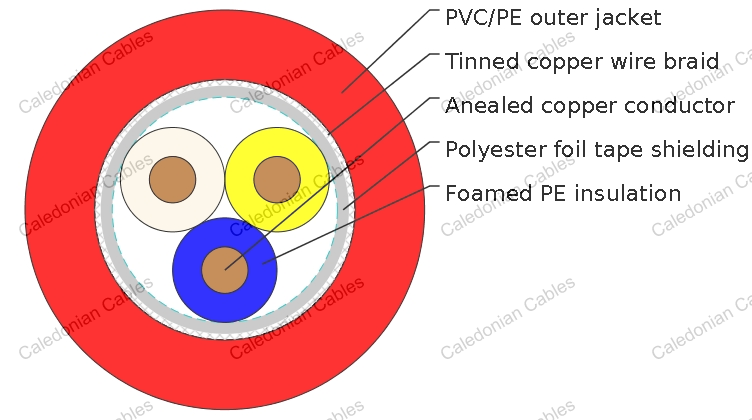

| Type | 3 x 20AWG Cable |
| Inner Conductor | Plain copper conductors 20(7)AWG |
| Conductor Insulation | Foamed PE with a hard skin |
| Stranding Element | - |
| Core Wrapping | Polyester taped |
| Shielding | Aluminium foil |
| Total Shielding | Tinned copper wire braid – 78% optical coverage |
| Drain Wire | 22(19)AWG tinned copper |
| Outer Jacket Material | PVC / PE |
| Core Identification | Yellow, White, Blue |
| Sheath colour | Red |
| CharacteristicImpedance@1MHz | 110 Ω ± 10Ω | |
| Conductor Resistance | 36.0 Ohm/km max. | |
| Insulation Resistance | 10.0GOhm x km min. | |
| Mutual Capacitance@1 KHz | 60.0 nF/km nom. | |
| Working Voltage | Max:300v | |
| Test Voltage | 2 KV | |
| 156 Kbit/s | 1200m | |
| 625 Kbit/s | 600m | |
| Data Rate | 2.5 Mbit/s | 200m |
| 5.0 Mbit/s | 110-150m | |
| 10.0 Mbit/s | 50-100m | |
| Attenuation | 1MHz | 1.6dB/100m |
| 5MHz | 3.5dB/100m | |
| Weight | approximately 76.0 kg/km |
| Min. Bending Radius (Laying) | 15 x OD mm |
| Operating Temp.Range, min. | - 40 °C |
| Operating Temp.Range, max. | +70 °C |
