    CAN Bus

    • CAN Bus Cable

    Application and Description

    CAN Bus are field bus cables that comform to international CAN standard ISO-11898, CAN Bus (Control Area Network) is a non addressable system which treats all devices as equal allowing fast transmission of data. Due to its robust nature it has been widely adopted in the automotive industry. Several versions of CAN Bus cables have been developed to meet the fast changing needs of the automation industry. The PVC jacket version is designed for stationary applications,while the Halogen free PUR version is for highly flexing application.


    Type/Area of Application Fixed Installation, Indoor Fixed Installation, Indoor

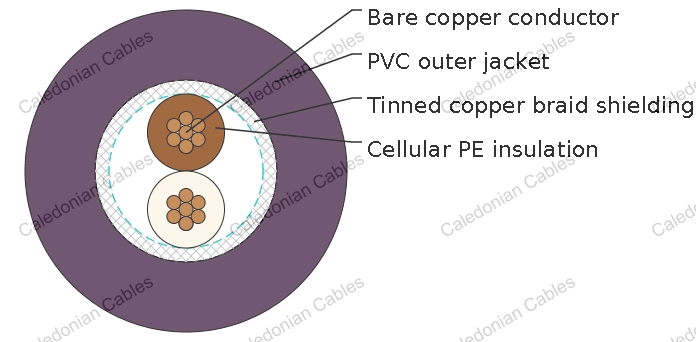

    Cable Construction 1x2x0.22 mm2 (stranded) 4x1x0.22 mm2 (stranded)
      1x2x0.34 mm2 (stranded) 4x1x0.34 mm2 (stranded)
      1x2x0.50 mm2 (stranded) 4x1x0.50 mm2 (stranded)
    Inner Conductor Copper, bare (AWG 24/7) Copper, bare (AWG 24/7)
      Copper, bare (AWG 22/7) Copper, bare (AWG 22/7)
      Copper, bare (AWG 20/7) Copper, bare (AWG 20/7)
    Conductor Insulation CellularPE Cellular PE
    Conductor Colors white, brown white, brown, green-yellow
    Stranding Element Double conductor Star quad
    Wrapping Polyester foil over stranded bundle Polyester foil over stranded bundle
    Shielding - -
    Total Shielding Copper braid, tinned Copper braid, tinned
    Outer Jacket Material PVC(static) / PUR(flexing) PVC(static) / PUR(flexing)
    Outer Diameter 5.4 mm ± 0.2 mm 6.9 mm ± 0.2 mm
      6.5 mm ± 0.2 mm 8.0 mm ± 0.2 mm
      7.0 mm ± 0.2 mm 8.5 mm ± 0.2 mm
    Outer Jacket Color Violet Violet

    Electrical Data

    Characteristic Impedance@1MHz 120 Ω ± 10 Ω 120 Ω ± 10 Ω
    Conductor Resistance 186.0 Ohm/km max. 186.0 Ohm/km max.
    Insulation Resistance 1.00 GOhm x km min. 1.00 GOhm x km min.
    Mutual Capacitance@800Hz 40.0 nF/km nom. 40.0 nF/km nom.
    Working Voltage 250V 250V
    Test Voltage 1.5 kV 1.5 kV
      1 MHz 1.3 dB/100m
    Attenuation 5 MHz 3.1 dB/100m
      10 MHz 4.3 dB/100m
      20 MHz 6.4 dB/100m

    Technical Data

    Weight approximately 35.0 kg/km approximately 60.0 kg/km
      approximately 54.0 kg/km approximately 77.0 kg/km
      approximately 69.0 kg/km approximately 100.0 kg/km
    Min. Bending Radius (Laying) 15 x OD mm 15 x OD mm
    Operating Temp.Range, min. - 40 °C - 40 °C
    Operating Temp.Range, max. +70 °C +70 °C
