    Armored Hybrid Profibus DP Cable

    (2*0.64mm (22AWG) Cu/F-PE/Al-foil screen/TCWB+Power 2*1.5mm2 Class5 Cu/XLPE) Assembly /LSZH/GSWA/LSZH, UV resistance, FR to IEC 60332-3-22 Cat.A

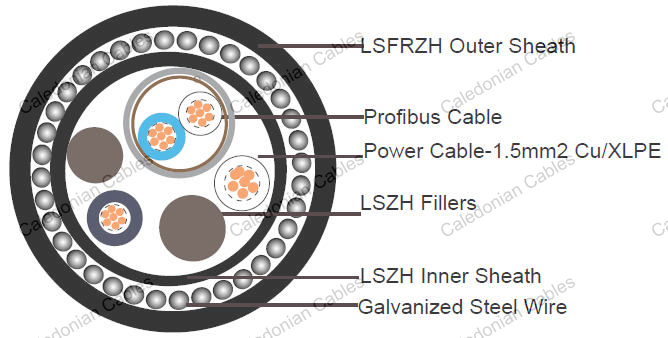

    Construction

    Part A: Profibus DP

    Pair No. X Conductor Size 1PX22AWG 1/0.64mm
    Conductor Solid plain copper 1/0.64mm
    Insulation Foam PE
    Shielding 1 Aluminium foil
    Shielding 2 Tinned copper wire braid - 65% coverage
    Sheath LSZH

    Part B: Power Cable 0.6/1KV

    Conductor 1.5mmsq flexible copper wire to IEC60228 class5
    Insulation XLPE,nominal thickness 0.7mm
    Insulation Color Black, White or as per request.

    2 parts assembly with fillers

    Amour Galvanised steel wire,0.9mm diameter
    Outer Sheath LSFRZH
    Overall Diameter 16.9 +/-3mm
    Approx. Weight 375KG/KM
    Core Color of Profibus Red&Green
    Sheath Color Black or other color upon request

    Electrical Data

    Characteristic Impedance @ 3-20MHz 150 Ω ± 15 Ω
    Conductor Resistance 54.5 Ohm/km max.
    Test Voltage 1KV
    Operate Voltage 300V RMS
    Mutual Capacitance 29.5pF/m nominal
    Max. Attenuation 0.2MHz 2dB/100m
    4MHz 2.95dB/100m
    16MHz 4.9dB/100m

    Power Cable

    Electrical Resistance: 12.1 ohm/km

    Insulation Resistance: 1000M oh.km

    Rated voltage: 0.6/1KV

    Testing voltage:3500V

    Technical Data

    Min. Bending Radius 6-8 x OD mm
    Operating Temp.Range, min. -30 °C
    Operating Temp.Range, max. +90 °C

    Fire Performance

    Reduced Fire Propagation (Vertically-mounted bundled cables test) IEC 60332-3-22 Cat.A
    Halogen Free IEC 60754-1/-2
    Low Smoke Capacity IEC 61034-1
    Flame Retardance IEC 60332-1
