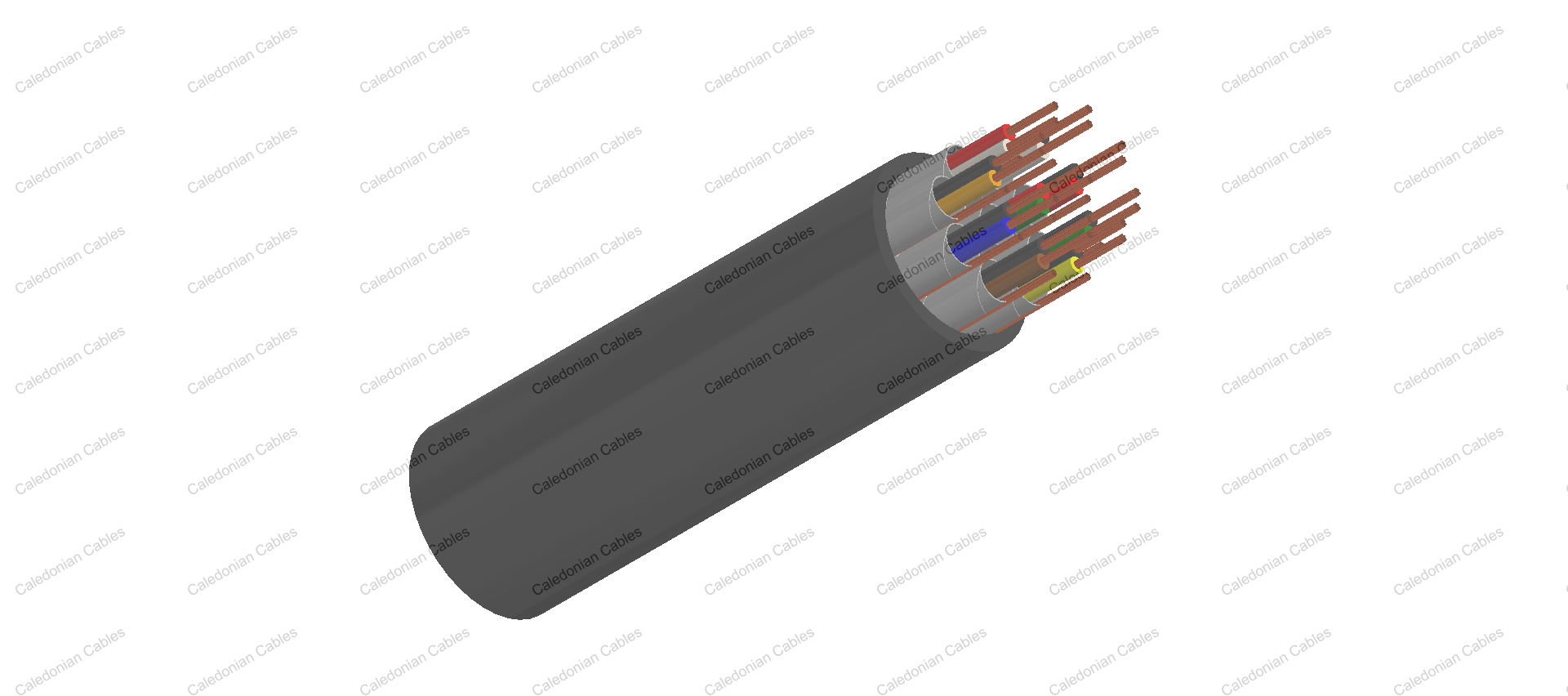

These cables have individually screened pairs laid up. Each individually screened pair has a 22AWG stranded tinned copper drain wire. These cables are used as computer cables.

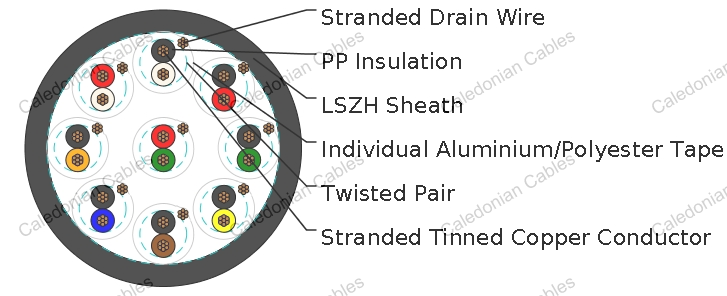

Conductor: Tinned copper wire.
Insulation: PP.
Individual Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green.
| AWG | 20 | |
|---|---|---|
| CONDUCTOR CONSTRUCTION | 7x0.32 | |
| UL STYLE | 2919 | |
| MAXIMUM CONDUCTOR RESISTANCE | Ω/KM | 34.1 |
| VOLTAGE RATING | V | 30 |
| NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR | PF/M | 98 |
| NOMINAL CAPACITANCE CONDUCTOR TO SCREEN | PF/M | 180 |
| BENDING RADIUS | 10xOverall Diameter | |
| OPERATING TEMPERATURE | ℃ | -20~80 |
| ORDERING CODE | NO. OF PAIRS | INSULATION THICKNESS | SHEATH THICKNESS | OVERALL DIAMETER |
|---|---|---|---|---|
| MM | MM | MM | ||
| BE119875V | 9 | 0.33 | 1.22 | 14.1 |
| BE119875H | 9 | 0.33 | 1.22 | 14.1 |
