Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 9855

These cables have pairs laid up in a foil/braid screen. These cables are suitable for EIA RS 232 and CAD/CAM applications, used as computer cables.

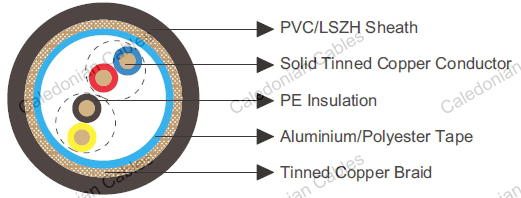

Conductor: Tinned copper wire.

Insulation: PE.

Overall Screen1: Aluminium/Polyester Tape.

Overall Screen2: Tinned copper braid, 58% coverage.

Sheath: PVC/LSZH.

Insulation Colour: Red & Blue, Black & Yellow.

AWG		22
CONDUCTOR CONSTRUCTION		Solid
UL STYLE		2582
MAXIMUM CONDUCTOR RESISTANCE	Ω/KM	54.8
VOLTAGE RATING	V	150
NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR	PF/M	51
NOMINAL CAPACITANCE CONDUCTOR TO SCREEN	PF/M	90
BENDING RADIUS		10xOverall Diameter
OPERATING TEMPERATURE	℃	-20~60

ORDERING CODE	NO. OF PAIRS	INSULATION THICKNESS	SHEATH THICKNESS	OVERALL DIAMETER
		MM	MM	MM
BE119855V	2	0.4	0.813	6.9
BE119855H	2	0.4	0.813	6.9
