    Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 9832

    Application

    These cables have pairs laid up in a foil/braid screen, suitable for RS 232 & RS 422 applications.

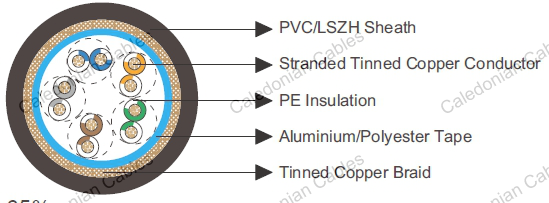

    Construction

    Conductor: Tinned copper wire.

    Insulation: PE.

    Overall Screen1: Aluminium/Polyester Tape.

    Overall Screen2: Tinned copper braid, 65% coverage.

    Sheath: PVC/LSZH.

    Insulation Colour: White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White, White/Gray & Gray/White.

    Electrical & Mechanical Characteristics

    AWG   24
    CONDUCTOR CONSTRUCTION   7x0.2
    UL STYLE   2919
    MAXIMUM CONDUCTOR RESISTANCE Ω/KM 85
    VOLTAGE RATING V 30
    NOMINAL CAPACITANCE CONDUCTOR TO CONDUCTOR PF/M 51
    NOMINAL CAPACITANCE CONDUCTOR TO SCREEN PF/M 90
    BENDING RADIUS   10xOverall Diameter
    OPERATING TEMPERATURE ℃ -30~80

    Dimensions

    ORDERING CODE NO. OF PAIRS INSULATION THICKNESS SHEATH THICKNESS OVERALL DIAMETER
        MM MM MM
    BE119832V 5 0.38 0.81 8.6
    BE119832H 5 0.38 0.81 8.6
